M.l ENGINE
WS019WS021 WSM.l0482

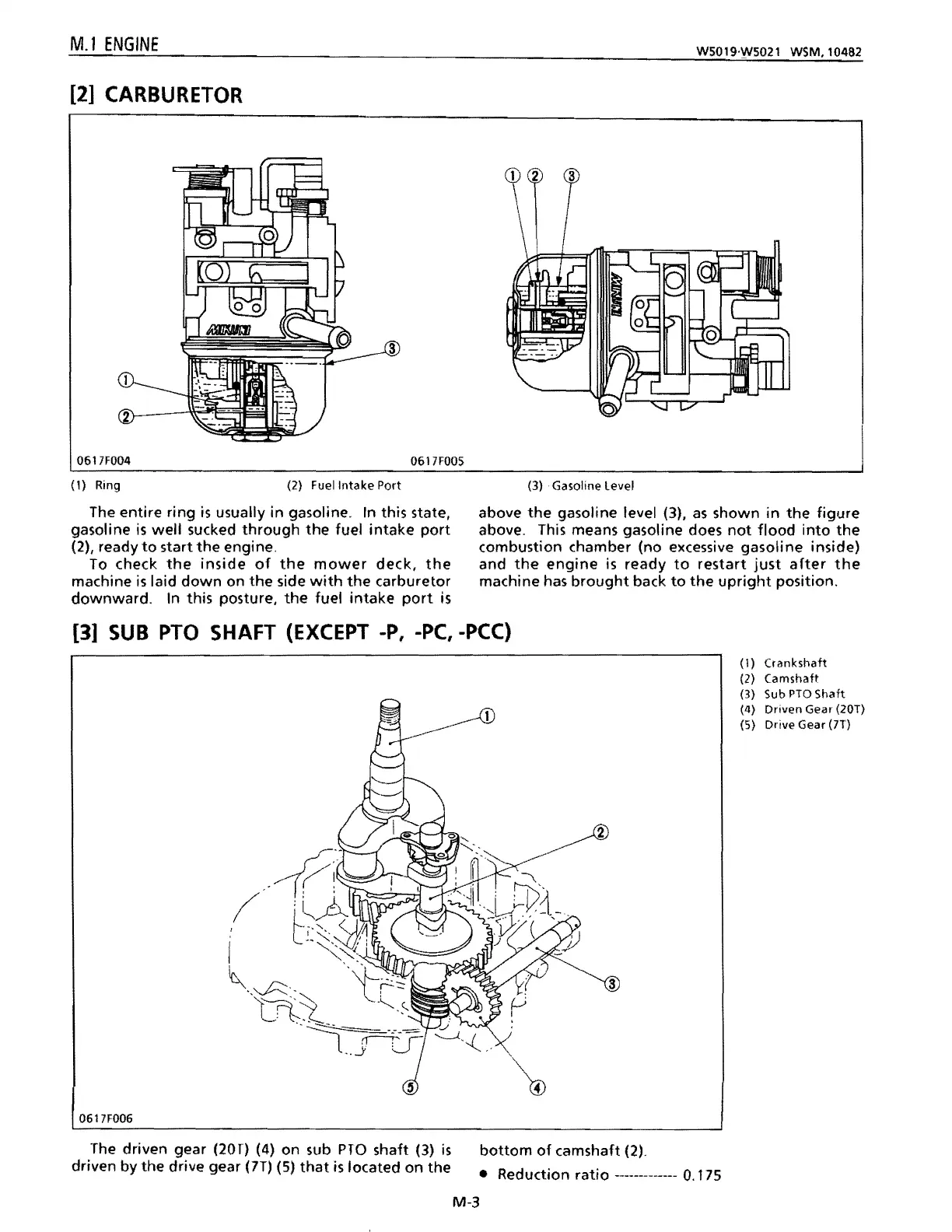

[2] CARBURETOR
0617F004
0617F005
(1) Ring
(2) Fuel
Intake Port
(3) Gasoline Level
The entire ring is usually in gasoline. In this state,
above
the gasoline level (3), as shown in the figure
gasoline
is well sucked through the fuel intake port
above. This
means gasoline does not flood into the
(2), ready to start the engine. combustion chamber (no excessive gasoline inside)
To check the inside of the mower deck, the and the engine is ready to restart just after the
machine is laid down on the side with the carburetor
machine has
brought back to the upright position.
downward.
In this posture, the fuel intake port is
(3] SUB PTO SHAFT (EXCEPT -P, -PC, -PCC)
(1) Crankshaft
(2) Camshaft
(3) Sub PTO Shaft
(4) Driven Gear (20T)
(5) Drive Gear (7T)
0617F006
The driven gear (20[) (4) on sub pro shaft (3) is
bottom of camshaft (2).
driven by
the drive gear (IT) (5) that is located on the
• Reduction ratio ------------- 0.175
5
M-3
