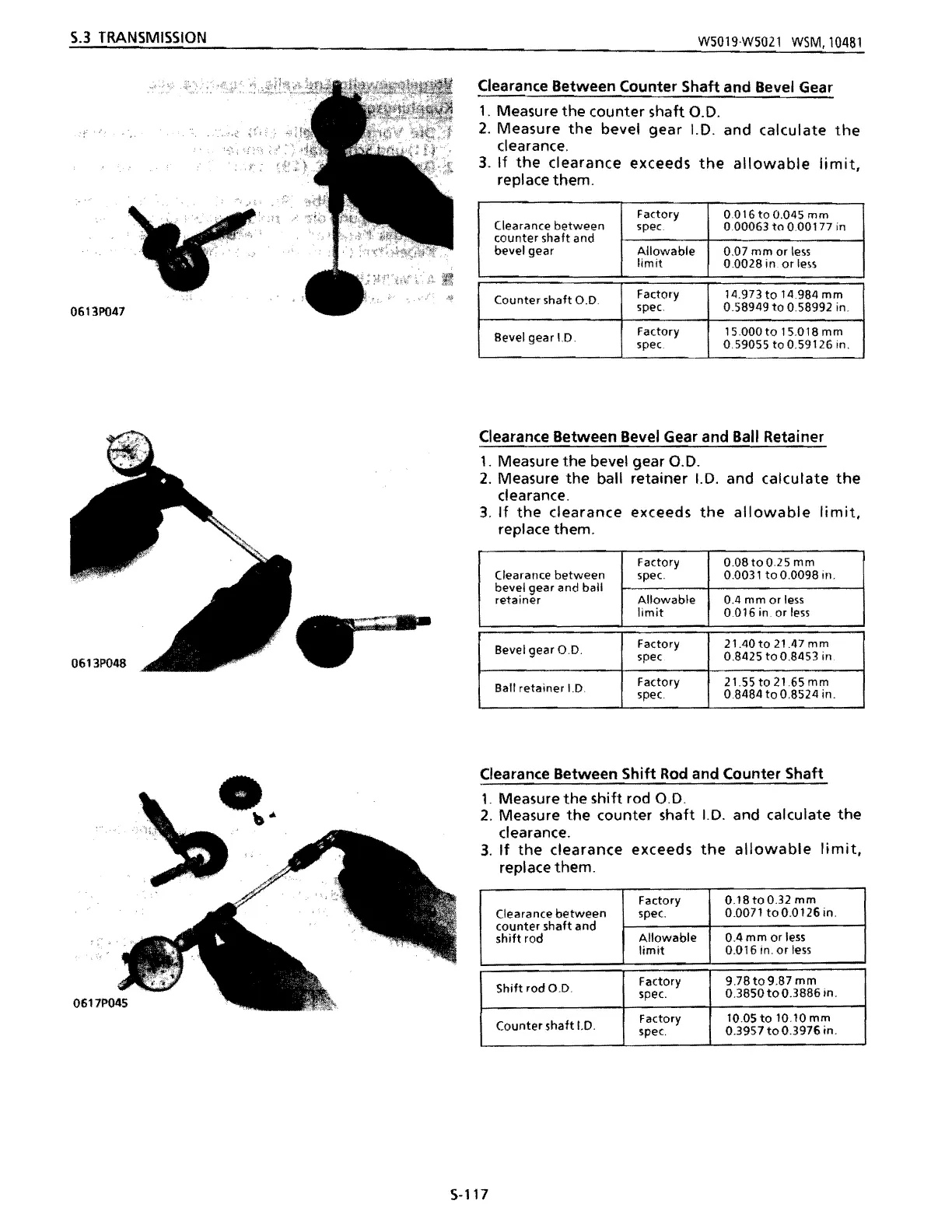

S.3 TRANSMISSION
W5019W50l1 W5M,10481
0613P047
Clearance Between Counter Shaft and Bevel Gear
1. Measure the counter shaft 0.0.
2. Measure the bevel gear 1.0. and calculate the
clearance.
3. If the clearance exceeds the allowable limit,
replace them.
Clearance between
counter shaft and
Factory
spec
0.016 to 0.045 mm
0.00063
to 0.00177 in
bevel gear
Allowable
limit
0.07 mm or less
0.0028
in. or less
Counter
shaft 0.0.
Factory 14.973 to 14.984 mm
spec.
0.58949
to 0.58992 in.
BevelgearLO
Factory 15.000
to 15.018 mm
spec
059055 to 0.59126 in.
Clearance Between Bevel Gear and Ball Retainer
1. Measure the bevel gear 0.0.
2. Measure the ball retainer 1.0. and calculate the
clearance.
3. If the clearance exceeds the allowable limit,
replace them.
Clearance
between
bevel gear and ball
retainer
Factory
spec.
0.08
to 0.25 mm
0.0031
to 0.0098 in.
Allowable
limit
OA mm or less
0.016 in. or less
Bevel
gear 0.0.
Factory
spec
21 AO to 21.47 mm
0.8425
to 0.8453 in
Ball retainer 1.0
Factory
spec.
21.55
to 21.65 mm
0.8484
to 0.8524 in.
•.
Clearance Between Shift Rod and Counter Shaft
1. Measure the shift rod 0.0.
. b
2. Measure the counter shaft 1.0. and calculate the
clearance.
3. If the clearance exceeds the allowable limit,
replace them.
~
" ..•. .
Clearance between
Factory
spec.
0.18toO.32 mm
0.0071 toO.0126 in.
counter shaft and
shift rod
Allowable
limit
0.4 mm or less
0.016
in. or less
Shift rod 0 D.
Factory
spec.
9.78
to 9.87 mm
0.3850
to 0.3886 in.
Counter
shaft 1.0.
Factory
spec.
10.05
to 10 10 mm
0.3957
to 0.3976 in.
S-117
