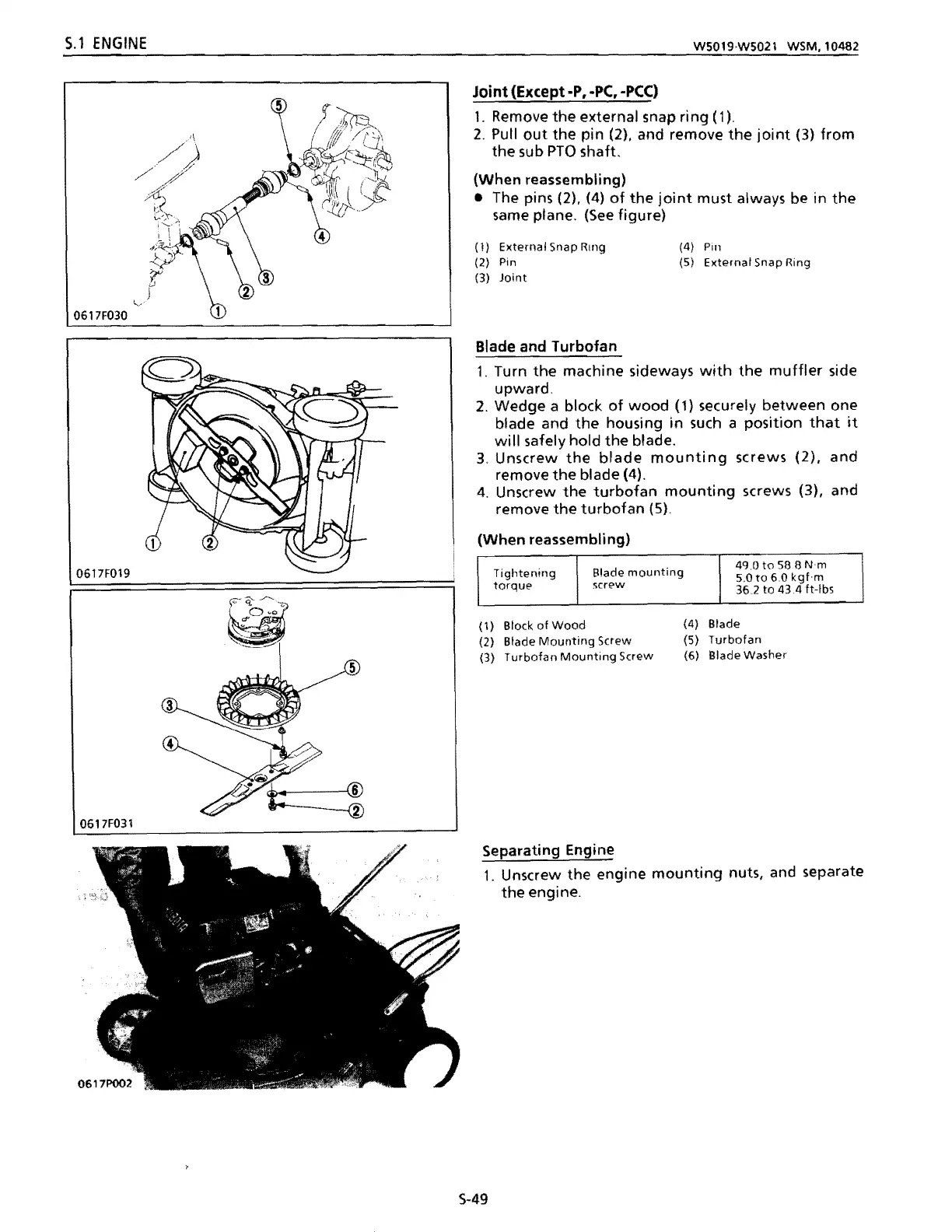

S.1 ENGINE
WS019WS021 WSM.10482
0617F019
5
0617F031
Joint (Except .p, -PC, -pee)
1. Remove the external snap ring (1).
2. Pull out the pin (2), and remove the joint (3) from
the sub PTO shaft.
(When reassembling)
• The pins (2). (4)
of the joint must always be in the
same plane. (See figure)
(1) External Snap RlI1g
(4) Pin
(2) Pin (5) External Snap Ring
(3)
Joint
Blade and Turbofan
1. Turn the machine sideways with the muffler side
upward
2. Wedge a block of wood (1) securely between one
blade and the housing in such a position that it
will safely hold the blade.
3. Unscrew the blade mounting screws (2), and
remove the blade (4).
4. Unscrew the turbofan mounting screws (3), and
remove
the turbofan (5).
(When reassembling)
Tightening
Blade mounting
4g.0 to 588 N'm
5.0 to 6.0 kgf·m
torque
screw
36.2
to 43.4 ft-Ibs
(1) Block of Wood
(4) Blade
(2) Blade
Mounting Screw
(5)
Turbofan
(3) Turbofan Mounting Screw
(6) Blade
Washer
Separating Engine
1. Unscrew the engine mounting nuts, and separate
the engine.
S-49
