9. FINAL REDUCTION
9-3
Bet & Win 1 25/1 50

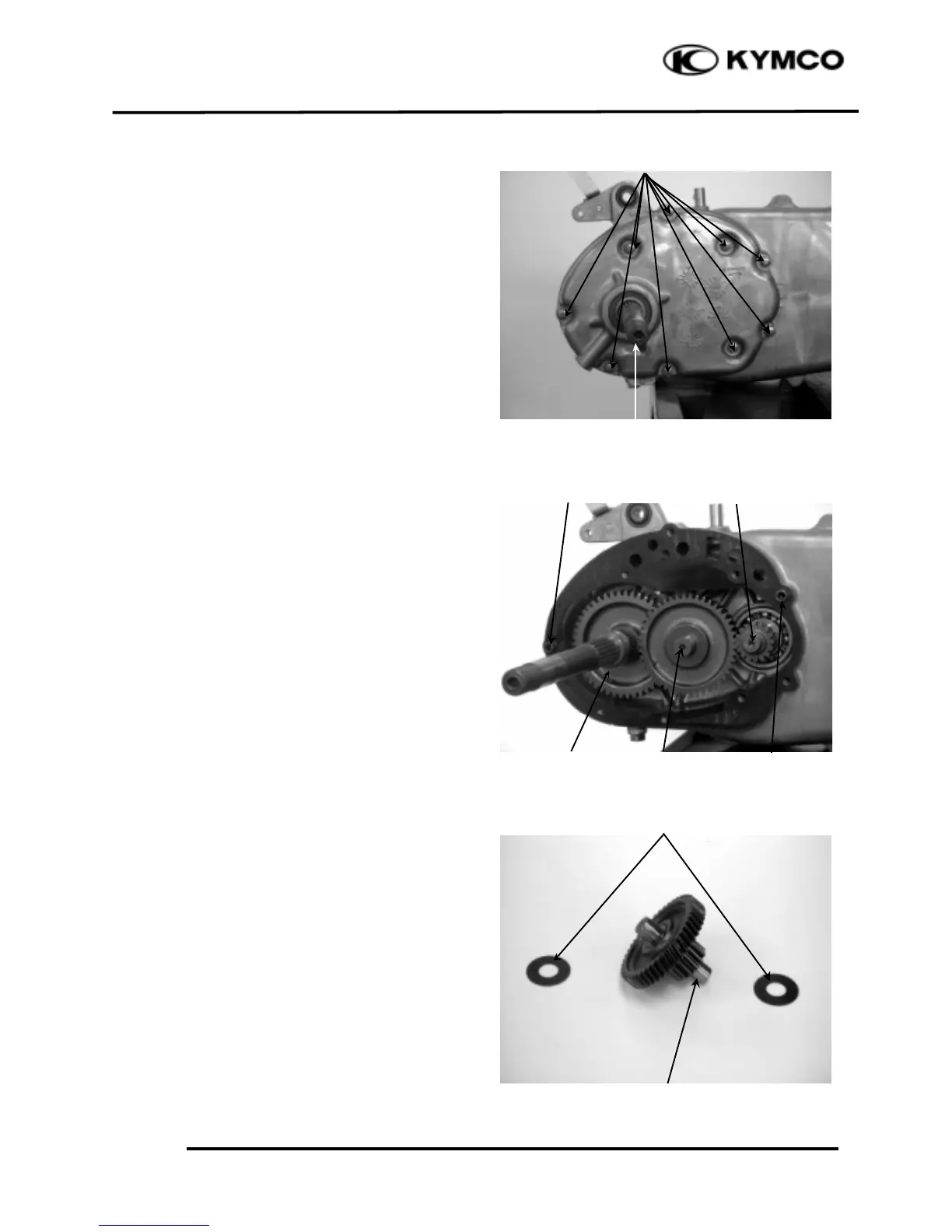

FINAL REDUCTION DISASSEMBLY
Remove the exhaust muffler. (
!
2-6)
Remove the rear brake caliper. (
!
15-3)
Remove the right rear shock absorber.
(
!
15-5)
Remove the rear fork. (
!
15-4)
Remove the rear wheel. (
!
15-4)
Remove the left crankcase cover. (
!
8-3)
Remove the clutch/driven pulleys. (
!8
-4)
Drain the transmission gear oil into a clean
container.
Remove the transmission case cover
attaching bolts.
Remove the transmission case cover.
Remove the gasket and dowel pins.
Remove the final gear and countershaft.
FINAL REDUCTION INSPECTION
Inspect the countershaft and gear for wear
or damage.
Final Shaft
Dowel Pin
Final Gear
Countershaft
Drive Shaft
Dowel Pin
Countershaft
Bolts
Washers
