7. CYLINDER/PISTON
7-3
Bet & Win 1 25/1 50

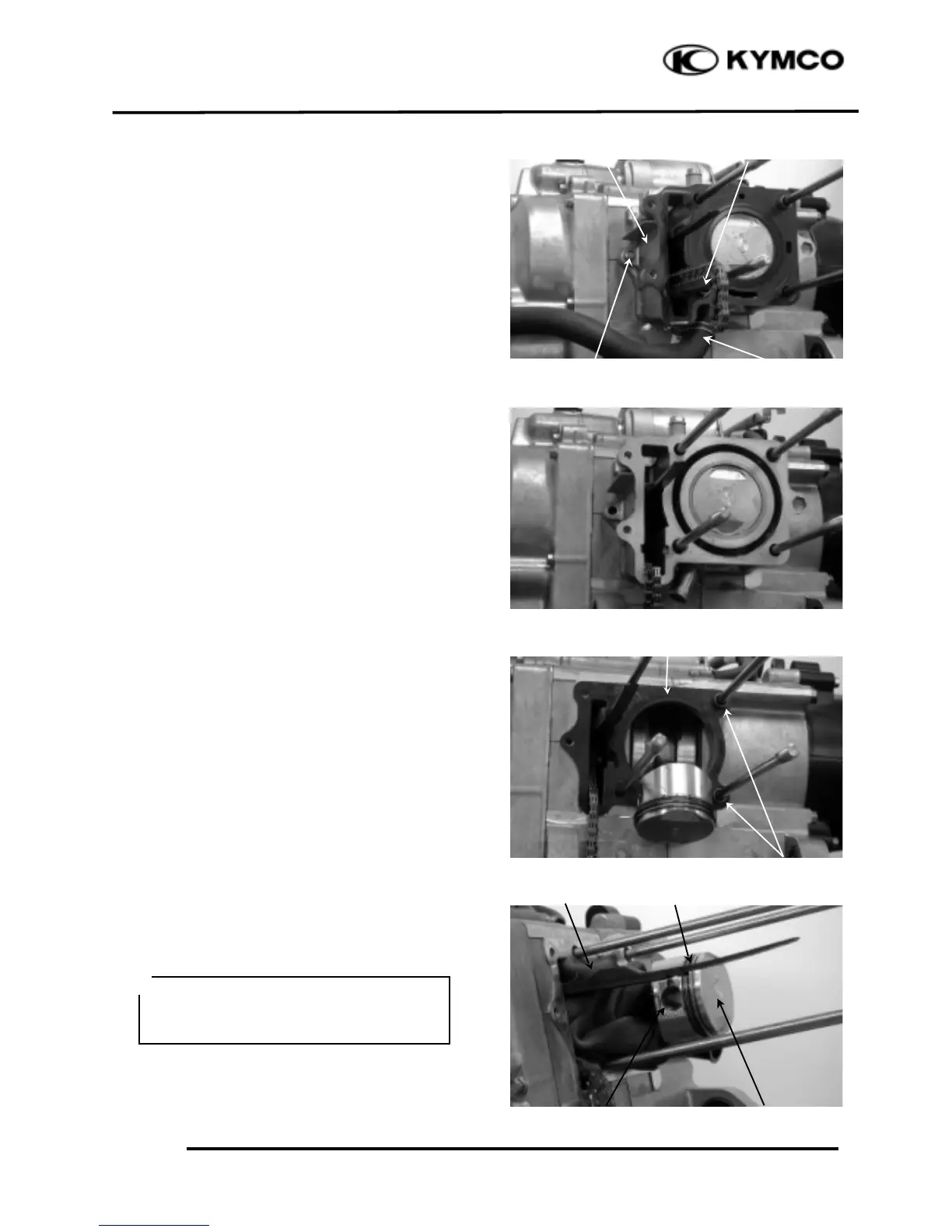

CYLINDER REMOVAL
Remove the cylinder head. (
!
6-7)
Remove the water hose from the cylinder.
Remove the cylinder base bolt.
Remove the cam chain guide.
Remove the cylinder.
Remove the cylinder gasket and dowel pins.
Clean any gasket material from the cylinder
surface.
PISTON REMOVAL
Remove the piston pin clip.
Press the piston pin out of the piston.
Cylinder Base Bolt
Water Hose
Dowel Pins
Cam Chain Guide
Gasket
Shop Towel
Cylinder
Piston Pin
Piston
Piston Rings
Place a clean shop towel in the crankcase
to keep the piston pin clip from falling
into the crankcase.
＊
