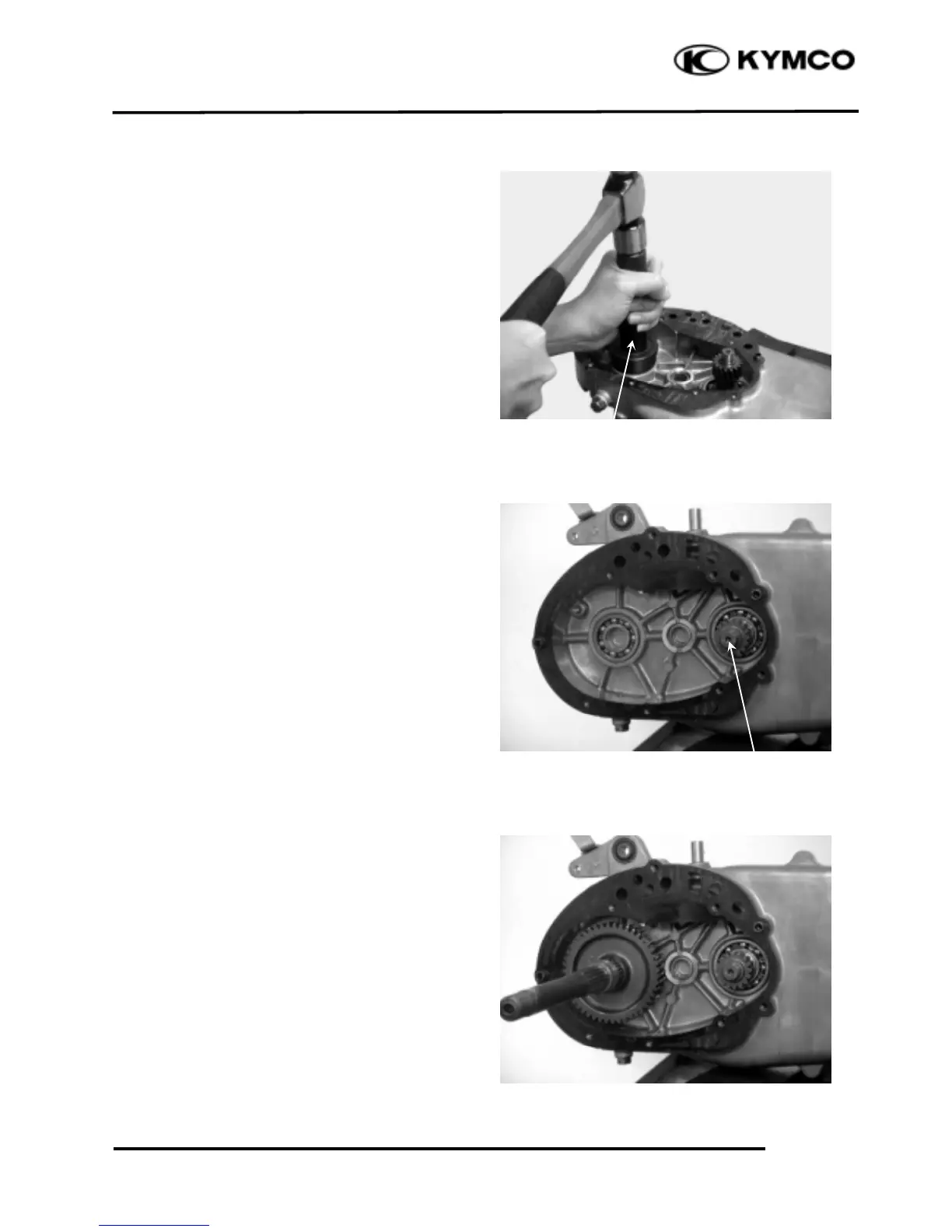

9. FINAL REDUCTION
9-6
Bet & Win 1 25/1 50
Drive new bearings into the left crankcase.
Install a new drive shaft oil seal.
FINAL REDUCTION ASSEMBLY
Install the drive shaft into the left
crankcase.
Install the final gear and final shaft into the
left crankcase.
Pilot, 15mm
Drive Shaft
