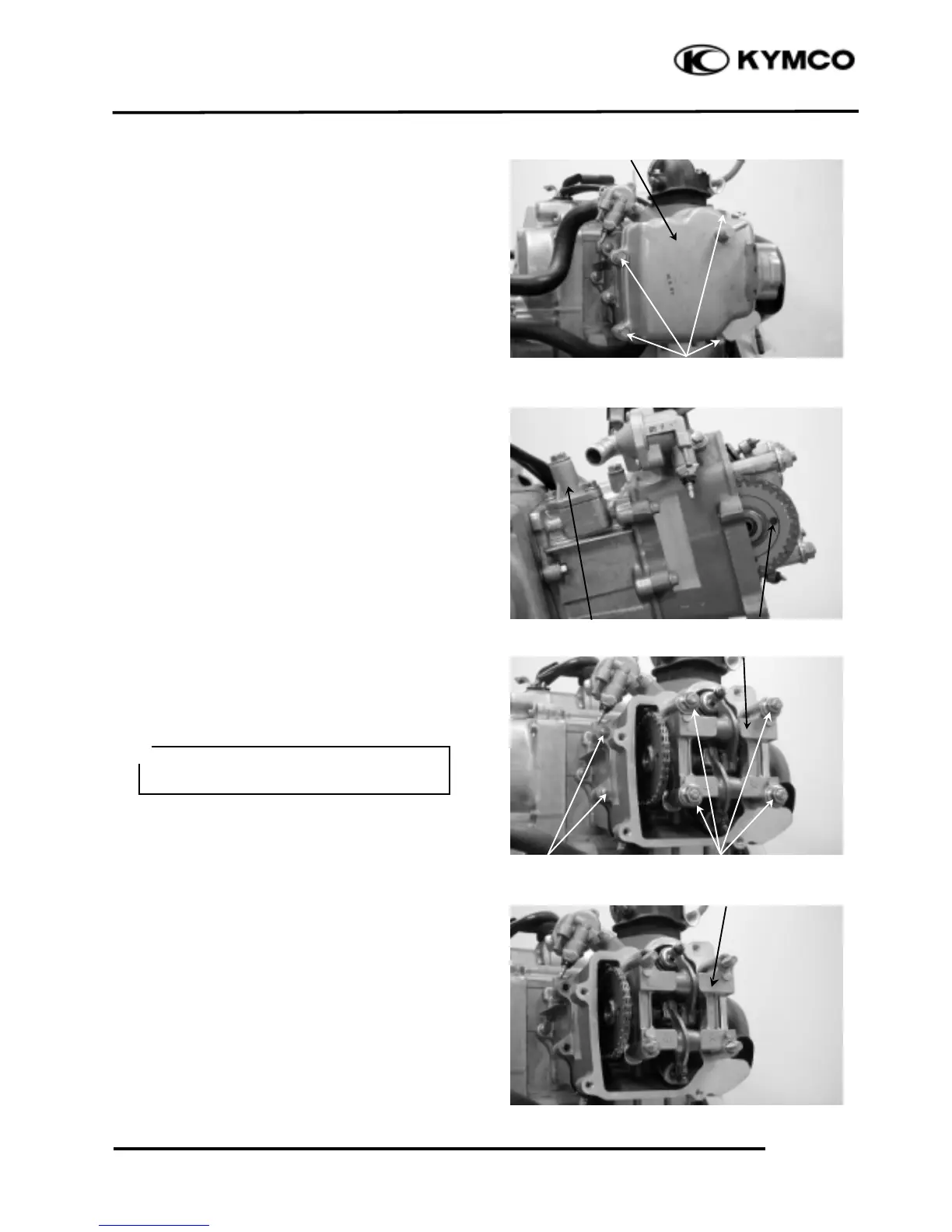

CYLINDER HEAD COVER
REMOVAL
Remove the center cover. (
!
2-3)
Remove the met-in box. (
!
2-3)
Remove the cylinder head cover four bolts
and then remove the cylinder head cover.
CAMSHAFT REMOVAL
Turn the A.C. generator flywheel so that the
“T” mark on the flywheel aligns with the
index mark on the crankcase.
Hold the round hole on the camshaft gear
facing up and the location is the top dead
center on the compression stroke.
Remove the two bolts attaching cam chain
tensioner and the tensioner.
First remove the two bolts between the
cylinder head and cylinder.
Then, remove the four cap nuts attaching the
cylinder head.
Remove the camshaft holder and dowel pins.
