14.STEERING HANDLEBAR/FRONT WHEEL/FRONT
BRAKE/FRONT SHOCK ABSORBER/FRONT FORK
14-17
Bet & Win 1 25/1 50
FRONT FORK
REMOVAL
Remove the handlebar covers. (
!
2-6)
Remove the steering handlebar. (
!
14-4)
Remove the front upper cover. (
!
2-5)
Remove the front lower cover. (
!
2-5)
Remove the front inner fender. (
!
2-6)
Remove the front wheel. (
!
14-5)
Remove the front brake caliper. (
!
14-11)

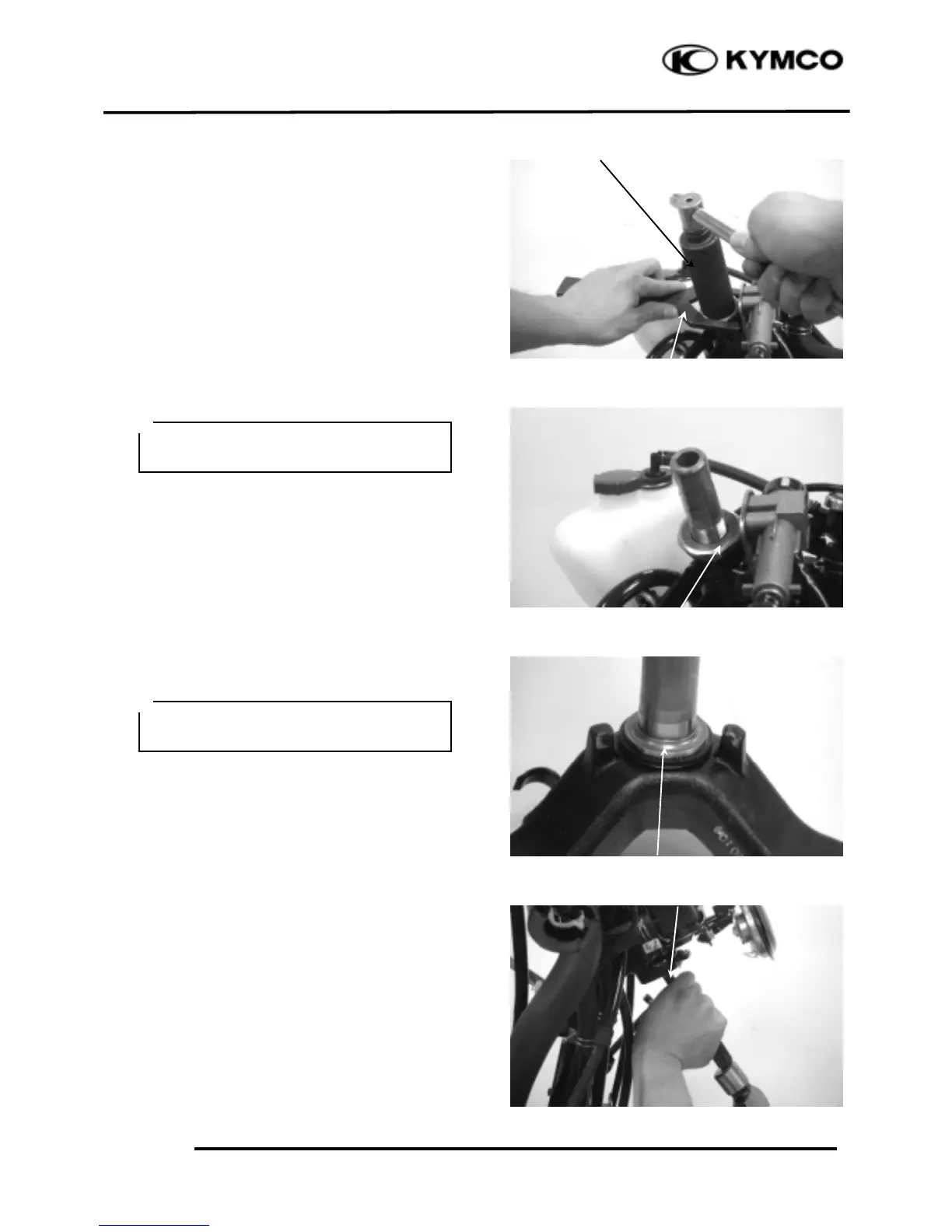

Hold the steering stem top cone race and
remove the steering stem lock nut.
Remove the top cone race and remove the
front fork.
Inspect the ball races, cone races and steel
balls for wear or damage. Replace if
necessary.
BOTTOM CONE RACE REPLACEMENT
Remove the bottom cone race using a chisel.
Drive a new bottom cone race into place with
a proper driver.
BALL RACE REPLACEMENT
Drive out the ball races.
Top Cone Race
Lock Nut Wrench
Lock Nut Socket
Be careful not to lose the steel balls (26
on top race and 19 on bottom race).
＊
Be careful not to damage the steering
stem and front fork.
＊
Bottom Cone Race
Ball Race Remover
