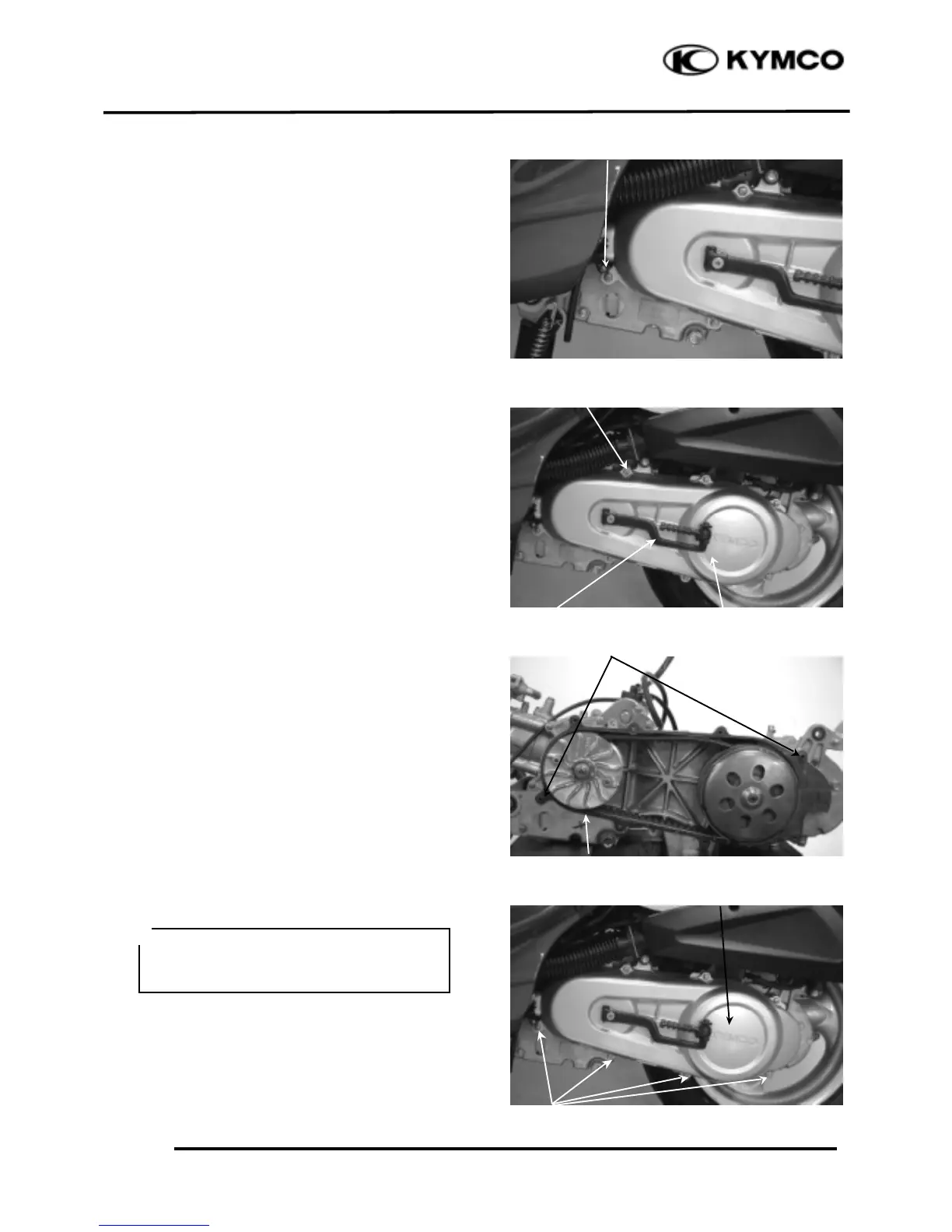

LEFT CRANKCASE COVER
REMOVAL
Loosen the drive belt air tube band screw.
Remove the left crankcase cover bolts and left
crankcase cover.
Remove the seal rubber and dowel pins.
INSTALLATION
Install the dowel pins and the seal rubber.
Install the left crankcase cover.
Install the cable clamp to the specified
location. Install and tighten the left crankcase
cover bolts.
• Do not pull out the kick starter spindle.
Press in the kick starter spindle when
installing the left crankcase cover.
To Next Page
