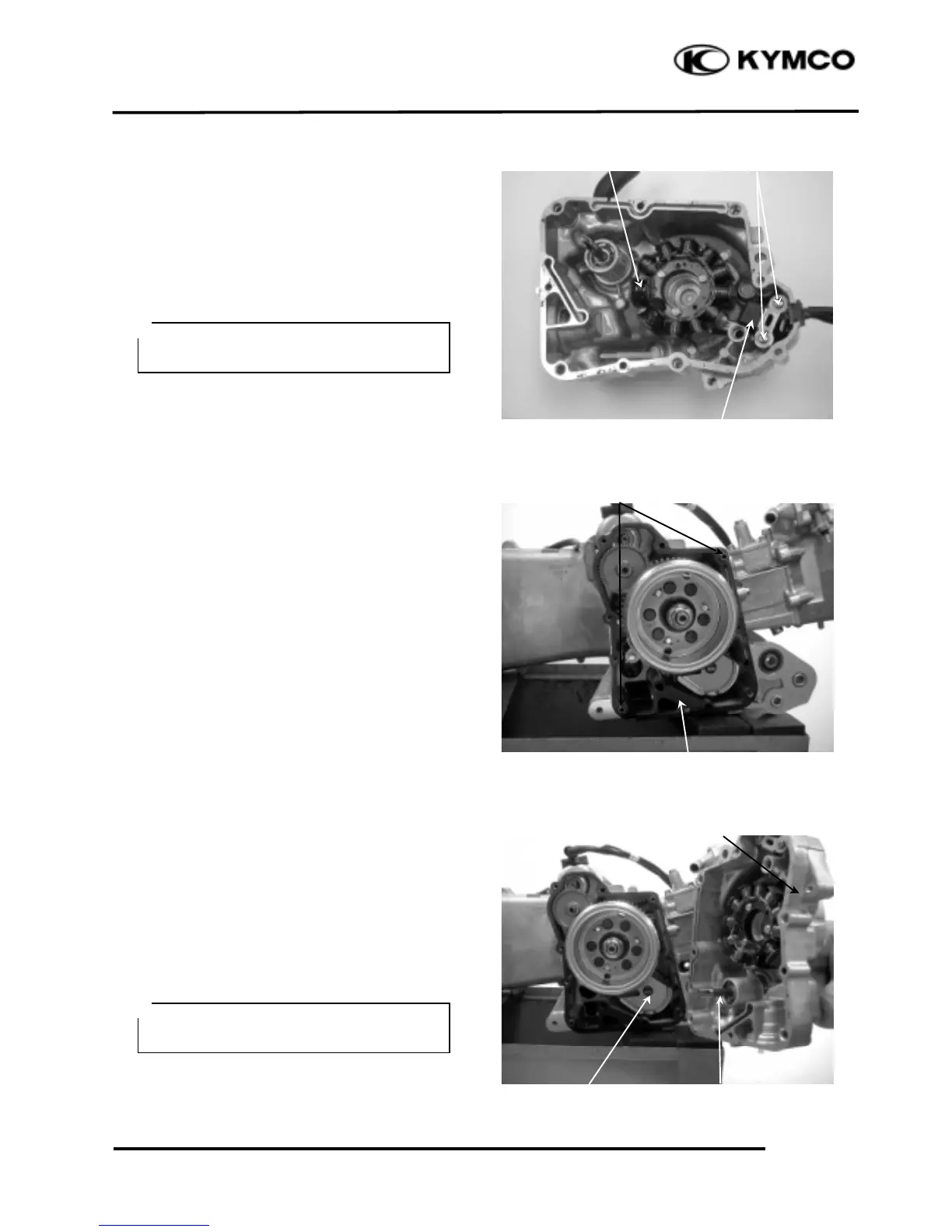

STATOR INSTALLATION
Install the A.C. generator stator on the right
crankcase cover and secure it with the three
bolts.
Install the pulser coil on the right crankcase
cover and secure it with the two screws.
Install the wire grommet in the groove in the
right crankcase cover securely.
RIGHT CRANKCASE COVER
INSTALLATION
Install the two dowel pins and a new gasket.
Install the right crankcase cover over the
crankcase, aligning the water pump shaft
groove with the oil pump shaft.
Tighten the nine right crankcase cover bolts.
Connect the water hoses to the right
crankcase cover.
Add the recommended engine oil. (
!
4-3)
Fill the cooling system with the specified
coolant. (
!
3-9)
