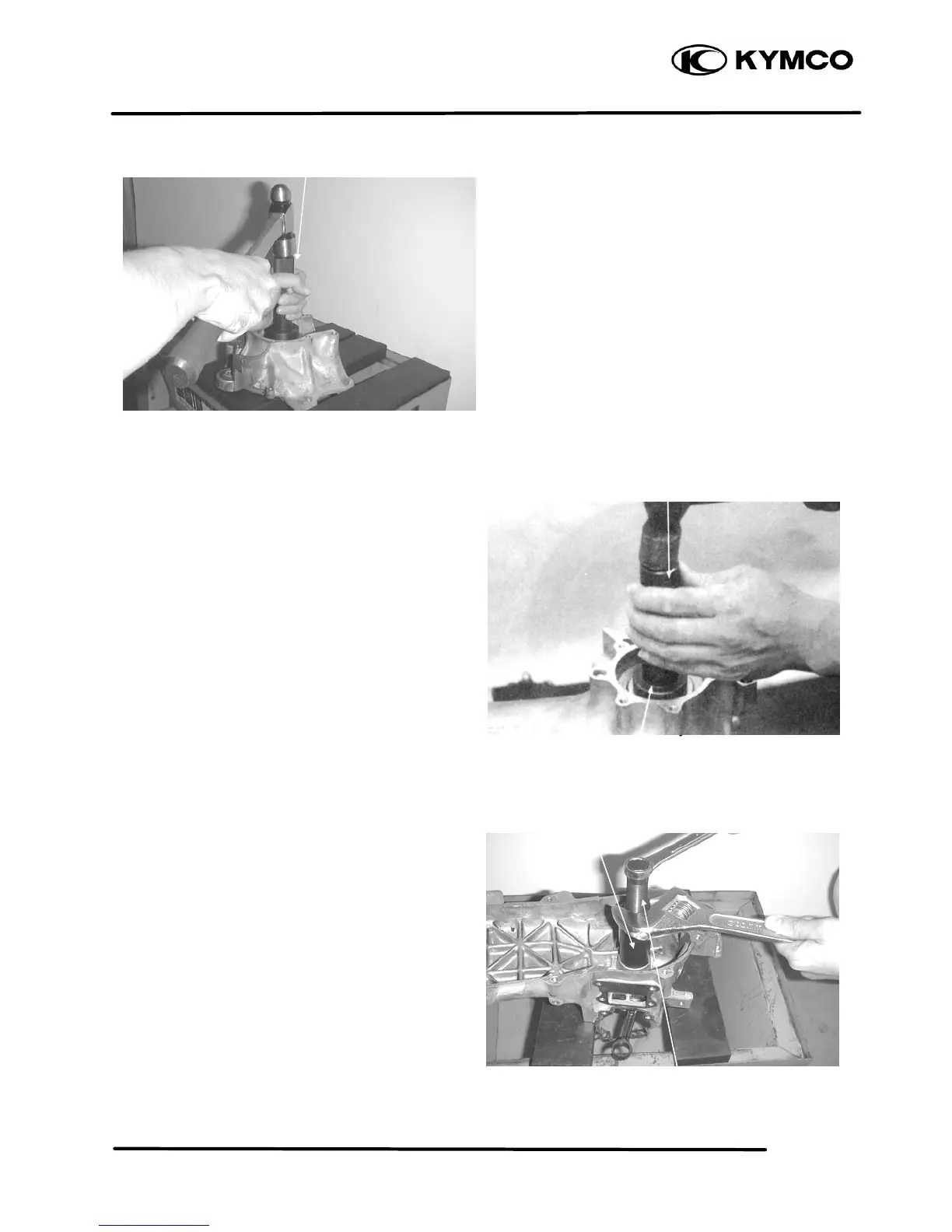

10. CRANKCASE/CRANKSHAFT
10
-
6
ZX / SCOUT
50
Drive a new crankshaft bearing into the left
crankcase.
Install the crankshaft into the left crankcase.
CRANKCASE ASSEMBLY
Install the dowel pins and a new gasket to the
Bearing Outer Driver Handle A
Bearing Outer Driver Handle A
Bearing Outer Driver, 37x40mm
Bearing Driver Pilot, 17mm
Bearing Outer Driver, 42x47mm
Pilot, 20mm
Crankcase Assembly Tool
Crankcase Assembly Collar
