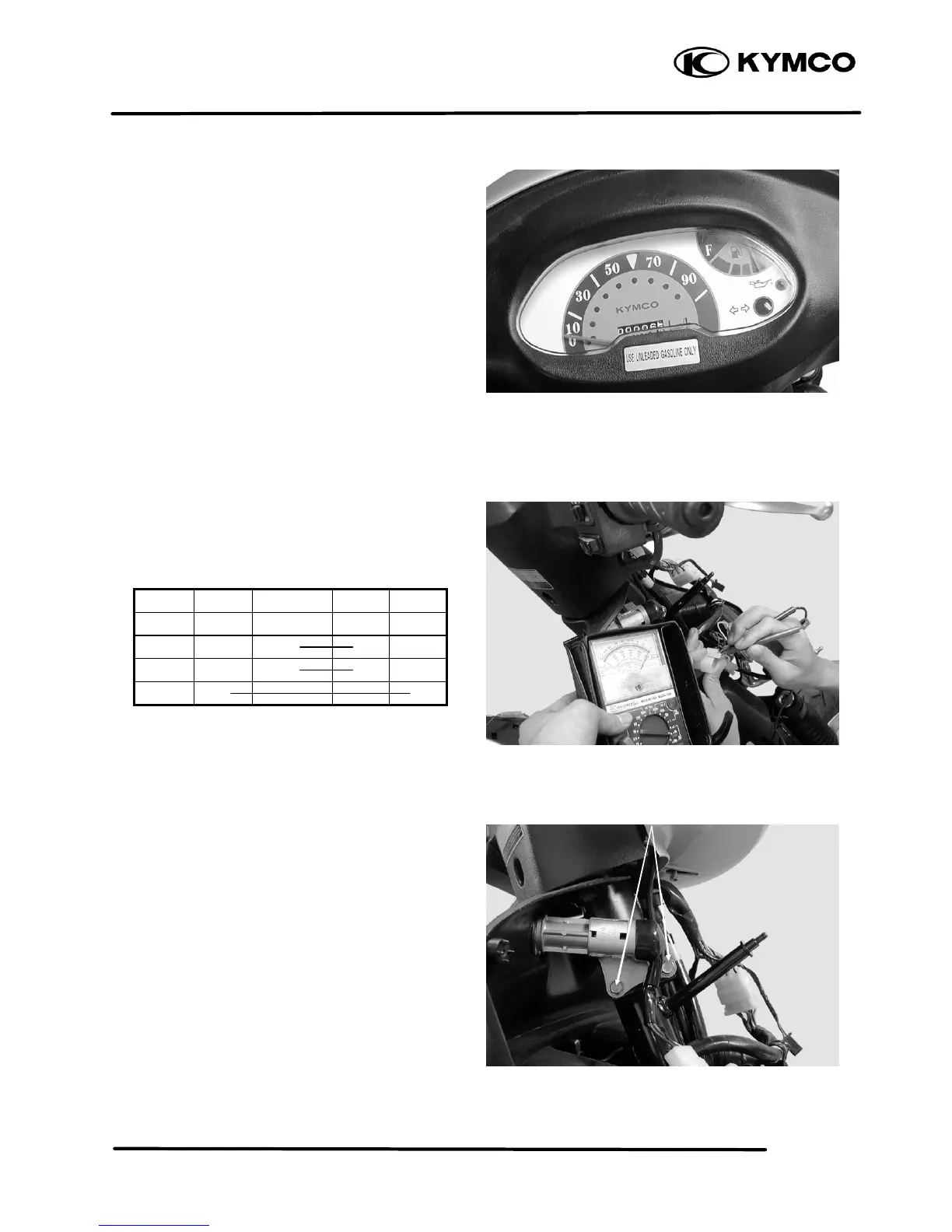

16. INSTRUMENT/SWITCHES/LIGHTS
Move the oil meter float up and down to see if
the oil indicator light will go out and come on.
SWITCHES
IGNITION SWITCH INSPECTION
Remove the front cover. (
ð
12-3)
Disconnect the ignition switch wire couplers
and check for continuity between the wire
terminals.
Color Red Black/White
? ?
OFF ? ?
ON ? ?
IGNITION SWITCH REPLACEMENT
Remove the front cover. (
ð
12-3)
Disconnect the ignition switch wire couplers.
Remove the two mounting bolts and remove
the ignition switch.
The installation sequence is the reverse of
removal.
HEADLIGHT SWITCH INSPECTION
