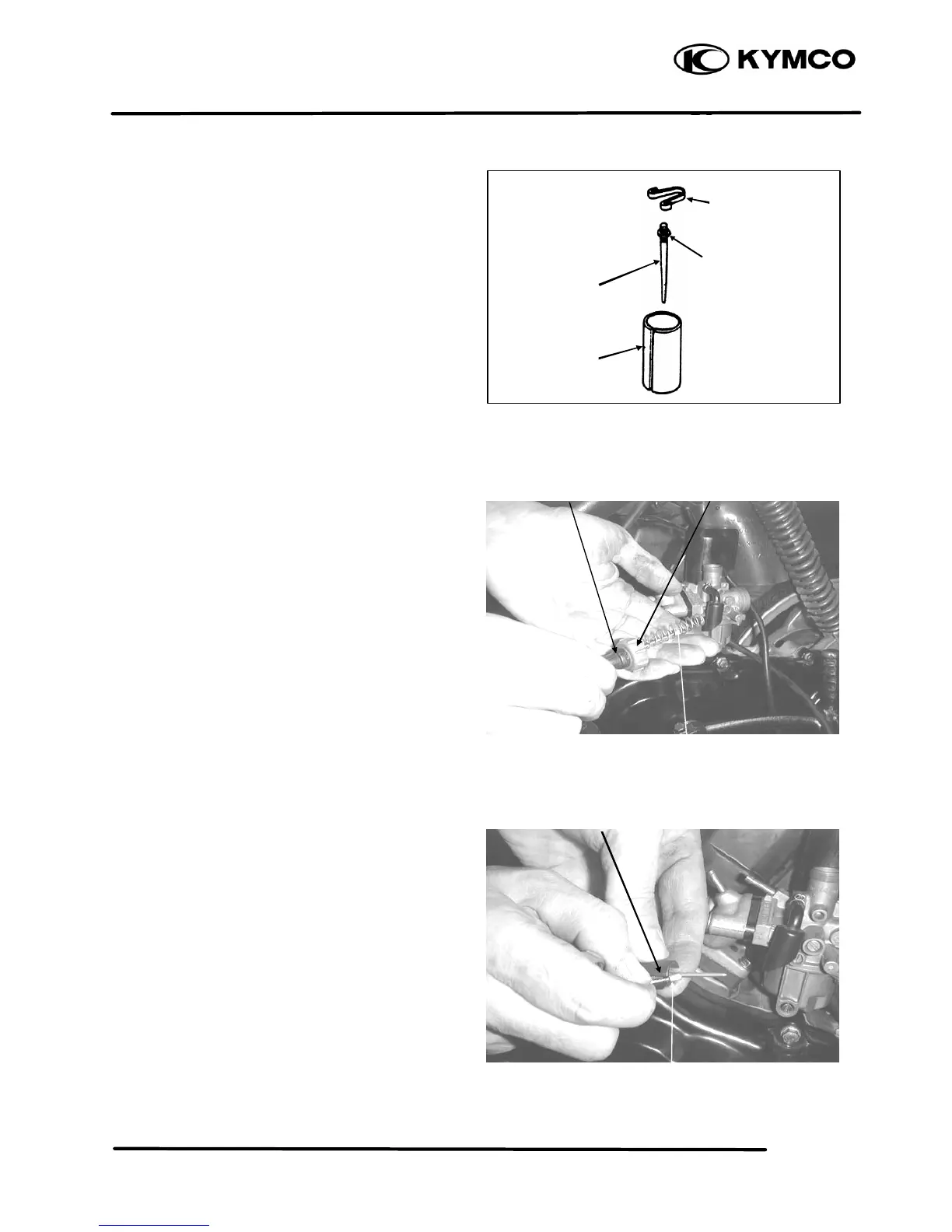

11. CARBURETOR
11
-
4
ZX / SCOUT
50
Remove the jet needle by removing the needle
clip.
Check the jet needle and throttle valve for
wear or damage.
THROTTLE VALVE
INSTALLA-TION
Install the jet needle on the throttle valve and
secure with the needle clip.
Install the rubber seal on the throttle cable and
then install the carburetor cap and throttle
valve spring.
Connect the throttle cable to the throttle valve.
Install the throttle valve by aligning the groove in
Carburetor Cap
Throttle Valve
Rubber Seal
Throttle Cable
Throttle Valve Spring
Needle Retainer
2nd Notch (STD)
T
hrottle Valve
Jet Needle
Needle Clip
