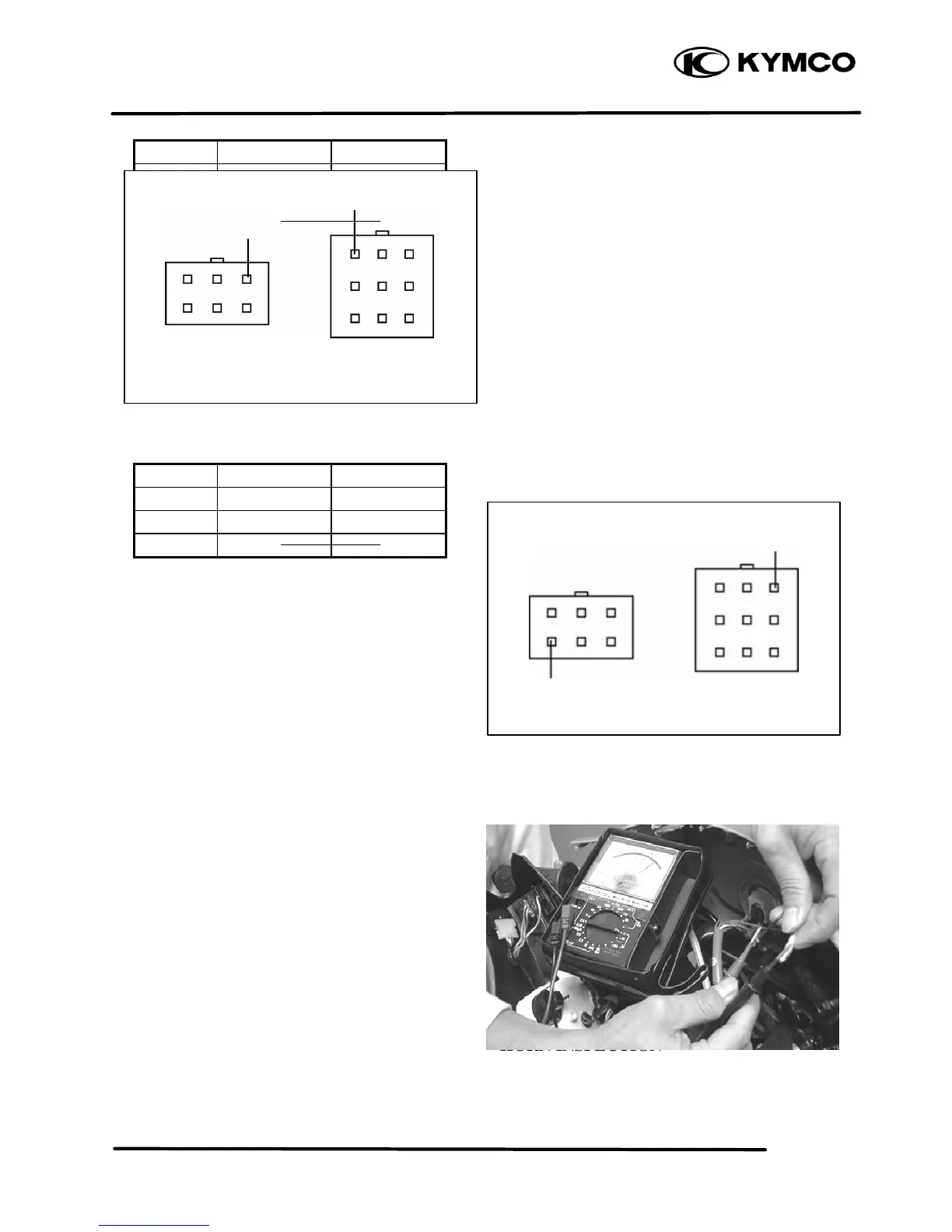

Push the starter button when measuring.
Color Yellow/Red Green
Symbol ST E
FREE
PUSH ? ?
HORN SWITCH INSPECTION
Check for continuity between wire terminals.
Push the horn button when measuring.
Color Light Green Black
Symbol HO BAT2
FREE
PUSH ? ?
STOP SWITCH INSPECTION
Remove the handlebar front cover. (
ð
12-3)
Disconnect the front and rear stop switch wire
couplers.
Check for continuity between the wire
terminals when the front/rear brake lever is
applied.
HORN INSPECTION
Remove the frame front cover. (
ð
12-3)
Disconnect the horn wire couplers. The horn is
normal if it sounds when a 12V battery is
To Next Page
