KYMCO Scout 50 - CYLINDER HEAD

6. CYLINDER HEAD/CYLINDER/PISTON
6
-
3
ZX / SCOUT

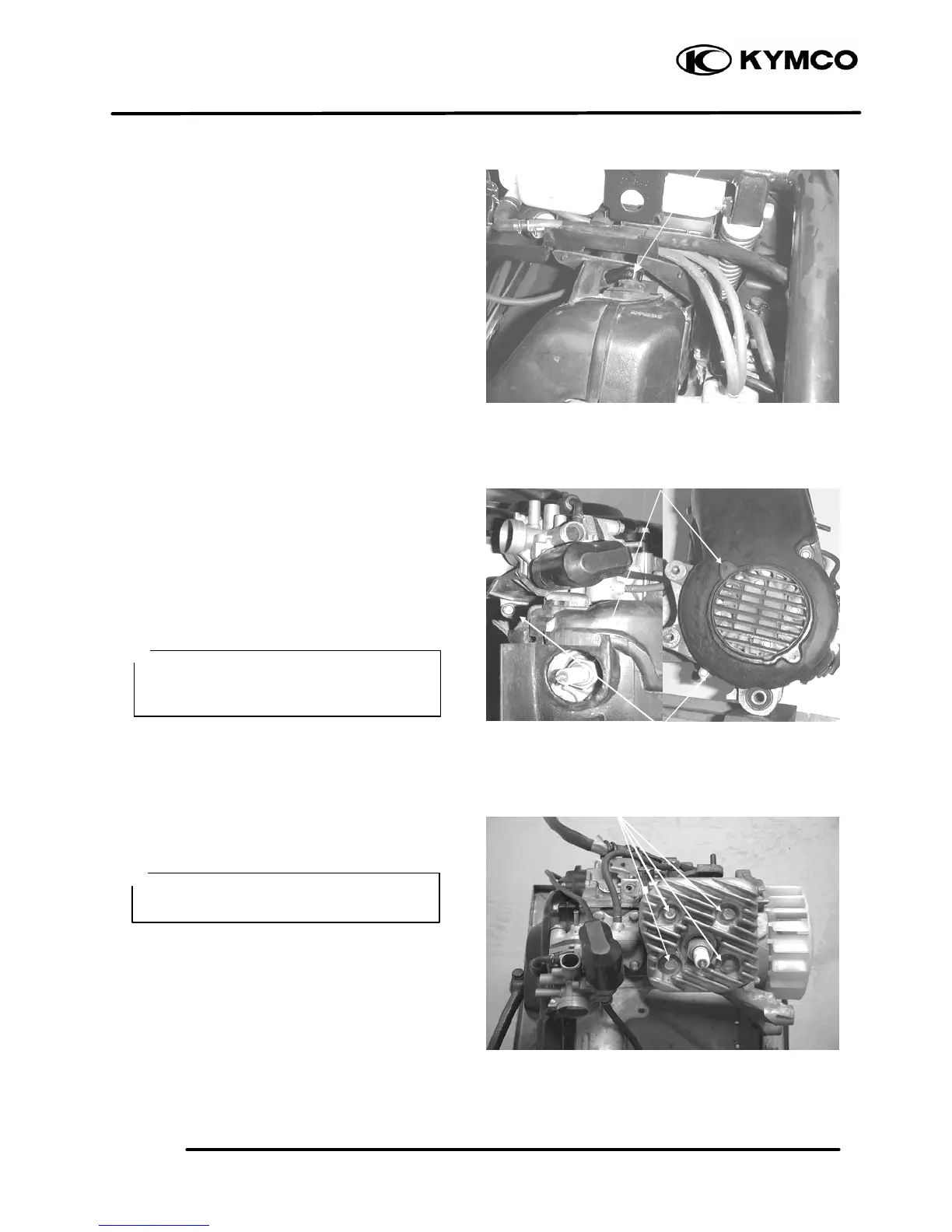

CYLINDER HEAD
REMOVAL
Remove the rear carrier.
Remove the frame body cover. (
ð
12-5)
Remove the spark plug cap.
Remove the three bolts attaching the fan cover
to remove the fan cover.
Remove the two joint lock nuts on the front of
the exhaust muffler and then remove the two
exhaust muffler lock bolts.
Remove the bolt attaching the engine hood to
remove the engine hood.
The installation sequence is the reverse of
removal.
Remove the spark plug.
Remove the cylinder head bolts and the
cylinder head.
Remove the cylinder head gasket.
COMBUSTION CHAMBER
Loosen the bolts diagonally in 2 or 3 times.
*
Cylinder head Bolts
Bolts
When installing the exhaust muffler, first
tighten the two nuts on the front and then
tighten the two bolts.
*
Cylinder Head
Spark Plug
Fan Cover/Engine Hood
Spark Plug Cap
