5. ENGINE REMOVAL/INSTALLATION
5
-
2
ZX / SCOUT
ENGINE REMOVAL
Remove the frame body cover. (
ð
12-5)

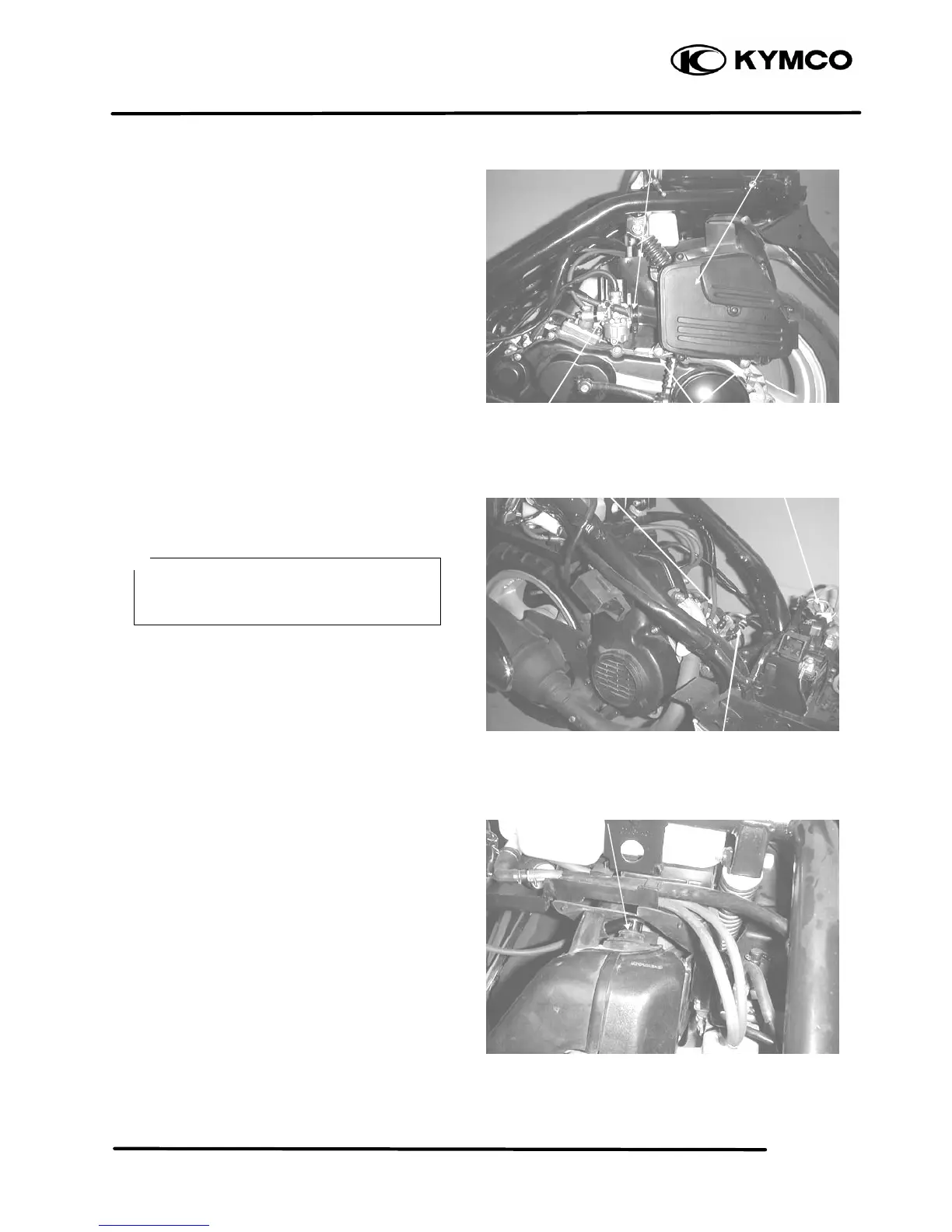

Remove the two bolts attaching the air cleaner
case.
Loosen the band between the air cleaner and
carburetor to remove the air cleaner case.
Remove the carburetor cap.
Disconnect the oil pump control cable from the
pump body.
Disconnect the oil inlet line from the oil pump.
Disconnect the auto bystarter, A.C. generator
and starter motor wire connectors.
Remove the spark plug cap.
After the oil inlet line is disconnected, plug
the oil line opening to prevent oil from
flowing out.
*
Carburetor Cap
Oil Inlet Line
Oil Pump Control Cable
Band
Air Cleaner Case
AC Generator Wire
Connector
Spark Plug
Cap
Bolt
