(2) Detaching and refitting the retard roller assembly
Procedure
1. Remove the cassette (See page 1-5-6).
2. Push the bottom plate down until it locks.
3. Unhook two hooks and then remove the
retard guide.

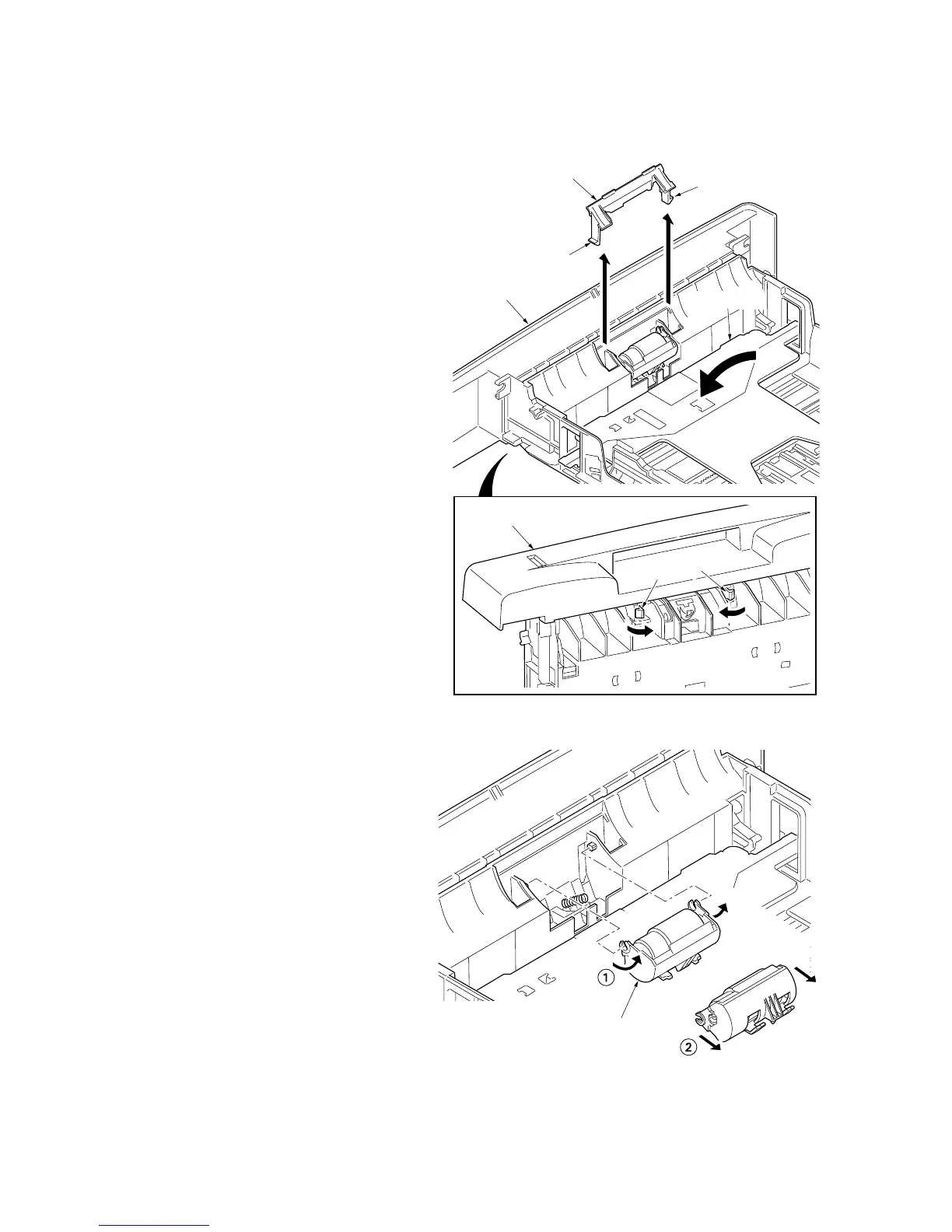

Figure 1-5-10
4. Remove the retard roller assembly.
Figure 1-5-11
Retard guide
Cassestte
Cassette
Hook
Hook
Hook
Hook
Bottom plate
Retard roller
Assembly

Kyocera FS-1320D Specifications

General

Print Technology	Laser
Paper Input Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Warm-up Time	15 seconds or less
Multi-purpose Tray Capacity	50 sheets
Print Speed	20 ppm
Resolution	1200 dpi
Paper Size (Main Tray)	A4, Letter, Legal
Print Media Sizes (Non-standard)	70 x 148 mm to 216 x 356 mm
