2LY/2LZ

1-5-22

(2) Detaching and refitting the power source PWB

Procedure

1. Remove the top cover (See page 1-5-3).

2. Remove the left cover (See page 1-5-4).

3. Remove four connectors.

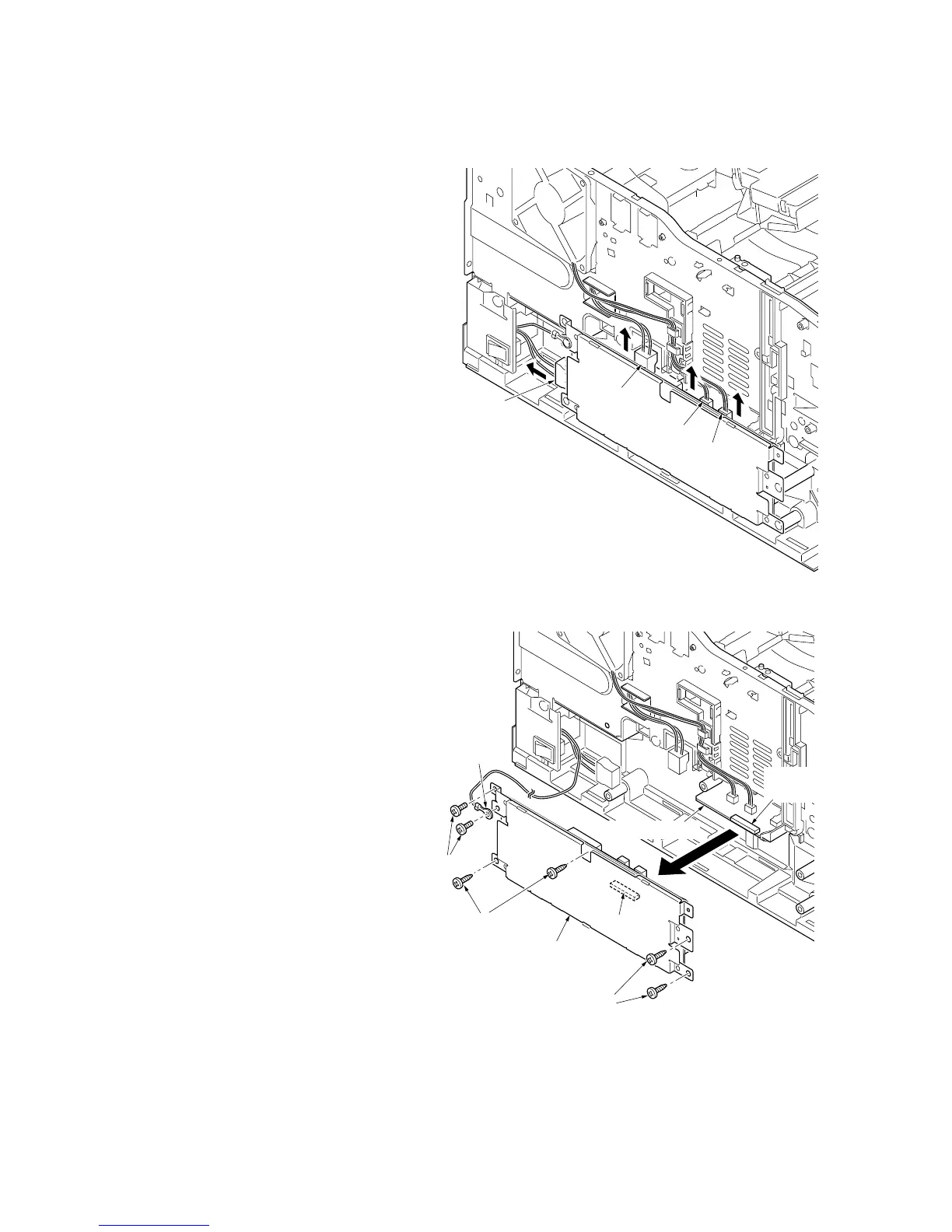

Figure 1-5-30

4. Remove four P tight screws, two screws and

ground terminal.

5. Remove the power source PWB assembly

from the high voltage PWB’s connector.

Figure 1-5-31

Connector

(YC104)

Power source PWB

assembly

P tight screws

Ground

terminal

Screws

Connecto

(YC201)

High voltage PWB

Connector

(YC103)
