Kyocera FS-1320D User Manual

2LY/2LZ
1-5-29
1-5-9 Others
(1) Detaching and refitting the main motor
Procedure
1. Remove the right cover (See page 1-5-4).
2. Remove the connector.

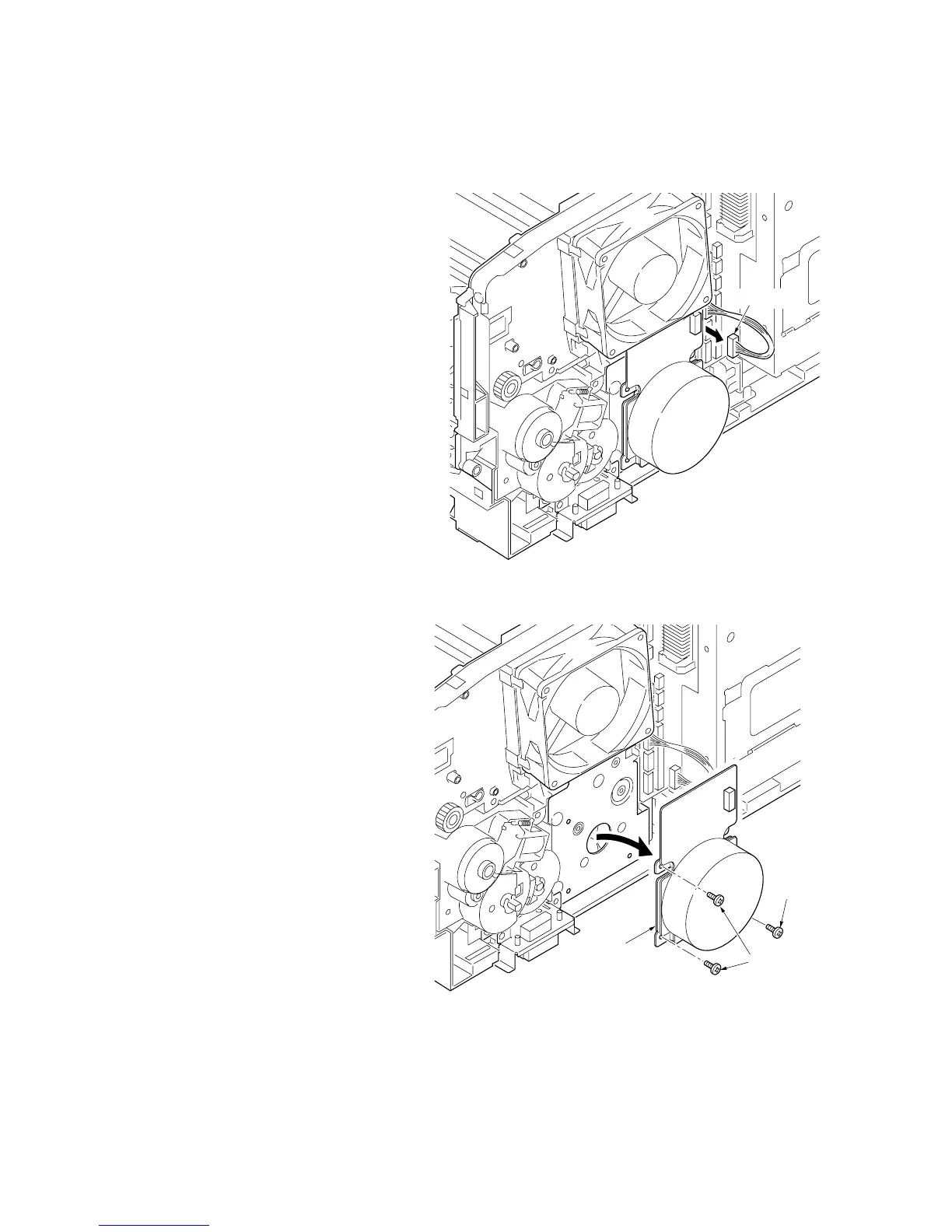

Figure 1-5-40
3. Remove the M3 screw and two M4 screws.
4. Remove the main motor.
5. Check or replace the main motor and refit all
the removed parts.
Figure 1-5-41
Connector
Main motor
M3 Screw
M4 screws

Kyocera FS-1320D Specifications

General

Print Technology	Laser
Paper Input Capacity	250 sheets
Connectivity	USB 2.0
Memory	32 MB
Warm-up Time	15 seconds or less
Multi-purpose Tray Capacity	50 sheets
Print Speed	20 ppm
Resolution	1200 dpi
Paper Size (Main Tray)	A4, Letter, Legal
Print Media Sizes (Non-standard)	70 x 148 mm to 216 x 356 mm
