Specications
L2-BUMP specications
Description
Flying frame for L2 and L2D (incl. 1 extension sling + 1 laser adapter)
2 × Ø19 mm shackles WLL 3.25 t
W
eight (net)
25 kg / 55 lb
Material
high grade steel with anti-corrosion coating

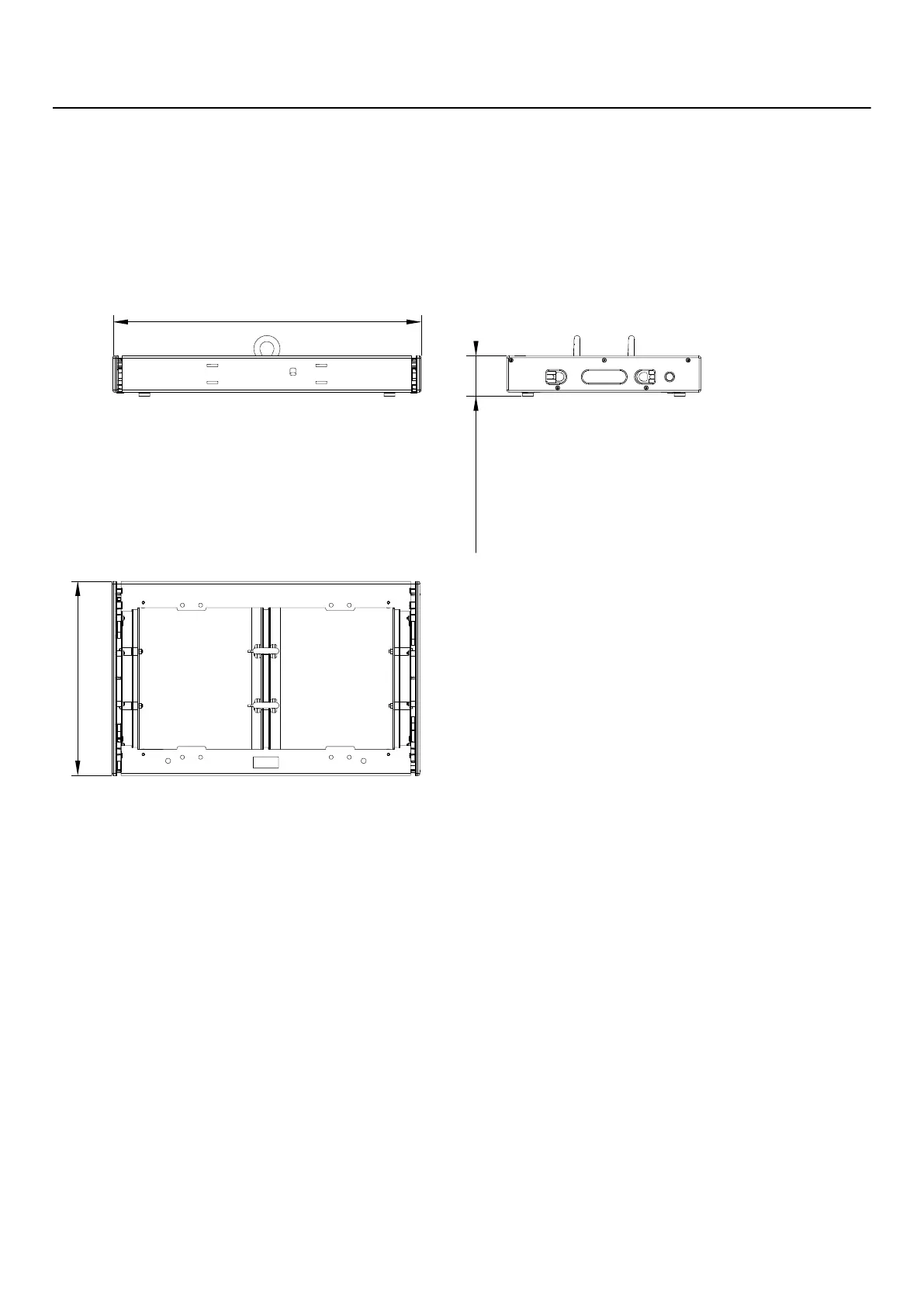

L2-BUMP dimensions
845
mm
/ 33.3
in
111
mm
/ 4.4
in
535
mm
/ 21.1
in
130
L2
owner's
manual
(EN)
version
2.0
129
131
Table of Contents
Table of Contents
3
Safety
6
Instructions
6
Introduction
8
L2/L2D 16-Channel Active Progressive Curvature WST Enclosures
8
How to Use this Manual
9
Revision History
9
System Components
10
System Component Illustrations
11
Electro-Acoustical Description
14
Polar Pattern
14
Adjustable Ns
15
Directivity
19
Preset Description
22
Connectors
23
Rigging System Description
24
L2/L2D
24
Rigging Elements
28
L2-Bump
28
L2-Bar
30
L2-Rigbar
31
Delta 1.5T
33
La-Rakmount
34
K2-Jack
35
L2-Lasermount
36
Storage and Handling
37
L2-Roll
37
L2-Chariot
38
L2D-Chariot
39
L2-Chariotcov
40
L2D-Chariotcov
41
L2-Chariotlid
42
L2D-Chariotlid
43
L2-Bumpflight
44
Mechanical Safety
45
Loudspeaker ConGurations
47
Line Source
47
Line Source with Low-Frequency Element
48
Rigging Procedures
51
Securing L2/L2D on L2-CHARIOT/L2D-CHARIOT
51
Flying
57
Securing LA-RAK III on L2-BUMP with LA-RAKMOUNT
57
Flying an L2/L2D Array with L2-BUMP and L2-BAR
60
Flying an L2/L2D Array with L2-RIGBAR
70
Adding a Pullback with L2-RIGBAR
72
Stacking
74
Attaching K2-JACK Stabilizers to L2-CHARIOT/L2D-CHARIOT
74
Adjusting L2-CHARIOT Site Angle with K2-JACK
77
Adjusting L2D-CHARIOT Site Angle with K2-JACK
79
Transporting
81
Mounting L2-CHARIOTLID/L2D-CHARIOTLID on L2/L2D
81
Stacking Multiple L2-CHARIOT/L2D-CHARIOT
84
Stacking Multiple L2-CHARIOTLID/L2D-CHARIOTLID
85
Connection to la AmpliEd Controllers
86
Corrective Maintenance
87
Preparing Enclosures for Maintenance
88
L2D
106
SpeciCations
124
L2D
126
Ks28
128
L2-Bump
130
L2-Bar
131
L2-Rigbar
132
La-Rakmount
133
Bpchain 1.5T
134
K2-Jack
135
L2-Lasermount
136
Delta 1.5T
137
L2-Chariot
138
L2D-Chariot
139
APPENDIX A: Recommendation for Speaker Cables
142
APPENDIX B: Installing a Laser Inclinometer
143
L2-Lasermount
143
L2-Bump
144
