Rigging procedures

Stacking multiple L2-CHARIOT/L2D-CHARIOT

Type of deployment storing

Rigging accessories L2-CHARIOT/L2D-CHARIOT

Min number of operators 1

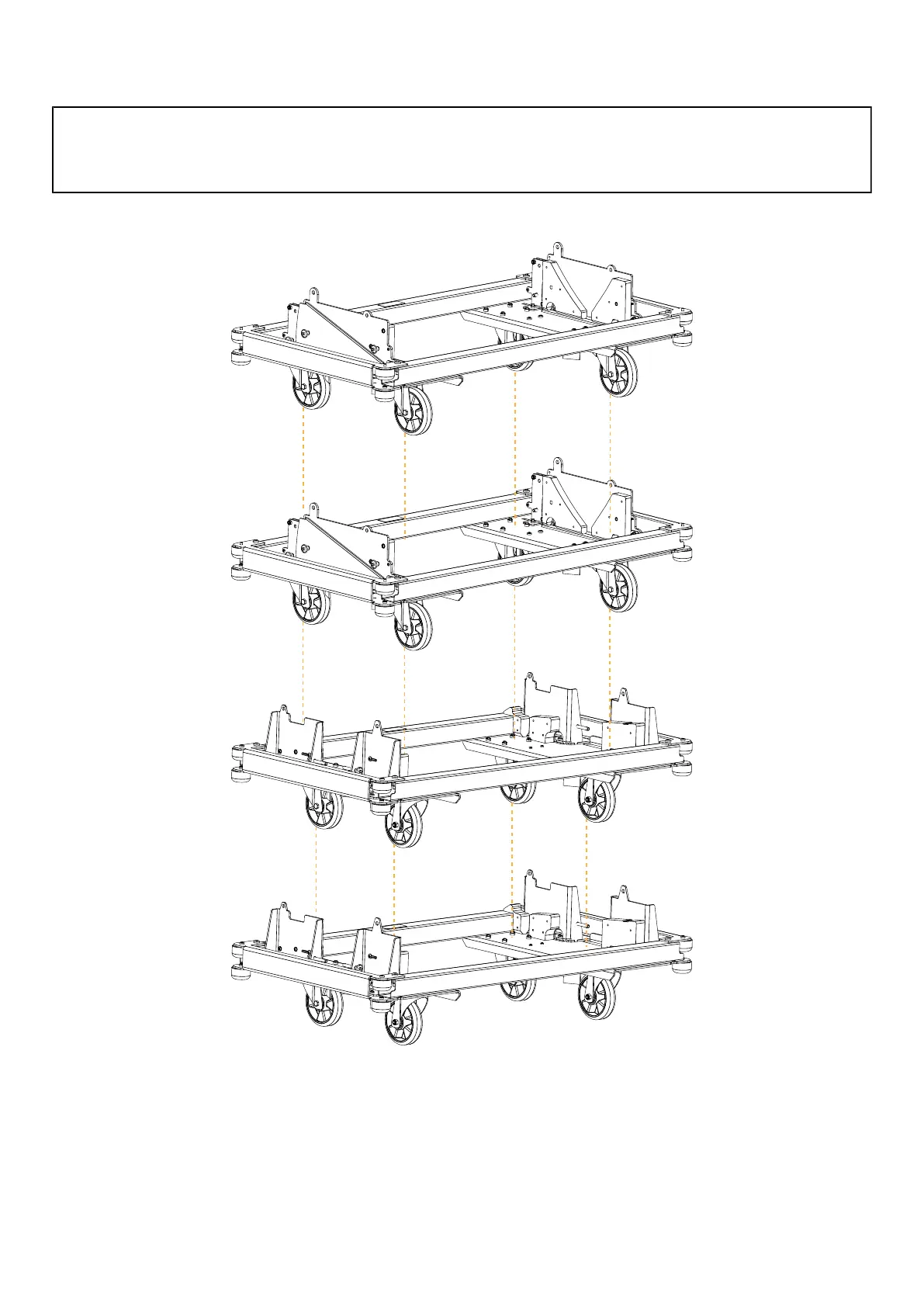

Stack the chariots in any direction and in any order, up to four chariots plus four chariotlids.

What to do next

Optionnally, stack L2-CHARIOTLID/L2D-CHARIOTLID on top. Refer to Stacking multiple L2-CHARIOTLID/L2D-CHARIOTLID

(p.85).

84 L2 owner's manual (EN) version 2.0
