Rigging procedures
Flying an L2/L2D array with L2-BUMP and L2-BAR
Type of deployment own array
Rigging accessories L2-BUMP
BPCHAIN 1.5T
1 or 2 L2-BAR (optional)
2 Ø19 mm shackles WLL 3.25 t
+ 2 Ø19 mm shackles WLL 3.25 t (if using a second L2-BAR)
Min number of operators 2
Risk of falling objects
Verify that no unattached items remain on the product or assembly.
Additional safety for own arrays
When ying an array, use available holes to implement a secondary safety.
Prerequisite
Each L2/L2D is secured to its chariot. See Securing L2/L2D on L2-CHARIOT/L2D-CHARIOT (p.51).
L2-CHARIOTLID/L2D-CHARIOTLID and L2-
CHARIOTCOV/L2D-CHARIOTCOV are
removed.
See Mounting L2-CHARIOTLID/L2D-CHARIOTLID on L2/L2D (p.81)
LA-RAK III is secured on L2-BUMP (optional) See Securing LA-RAK III on L2-BUMP with LA-RAKMOUNT (p.57).
Procedure
1. Secure the L2-BUMP on top of the enclosure:

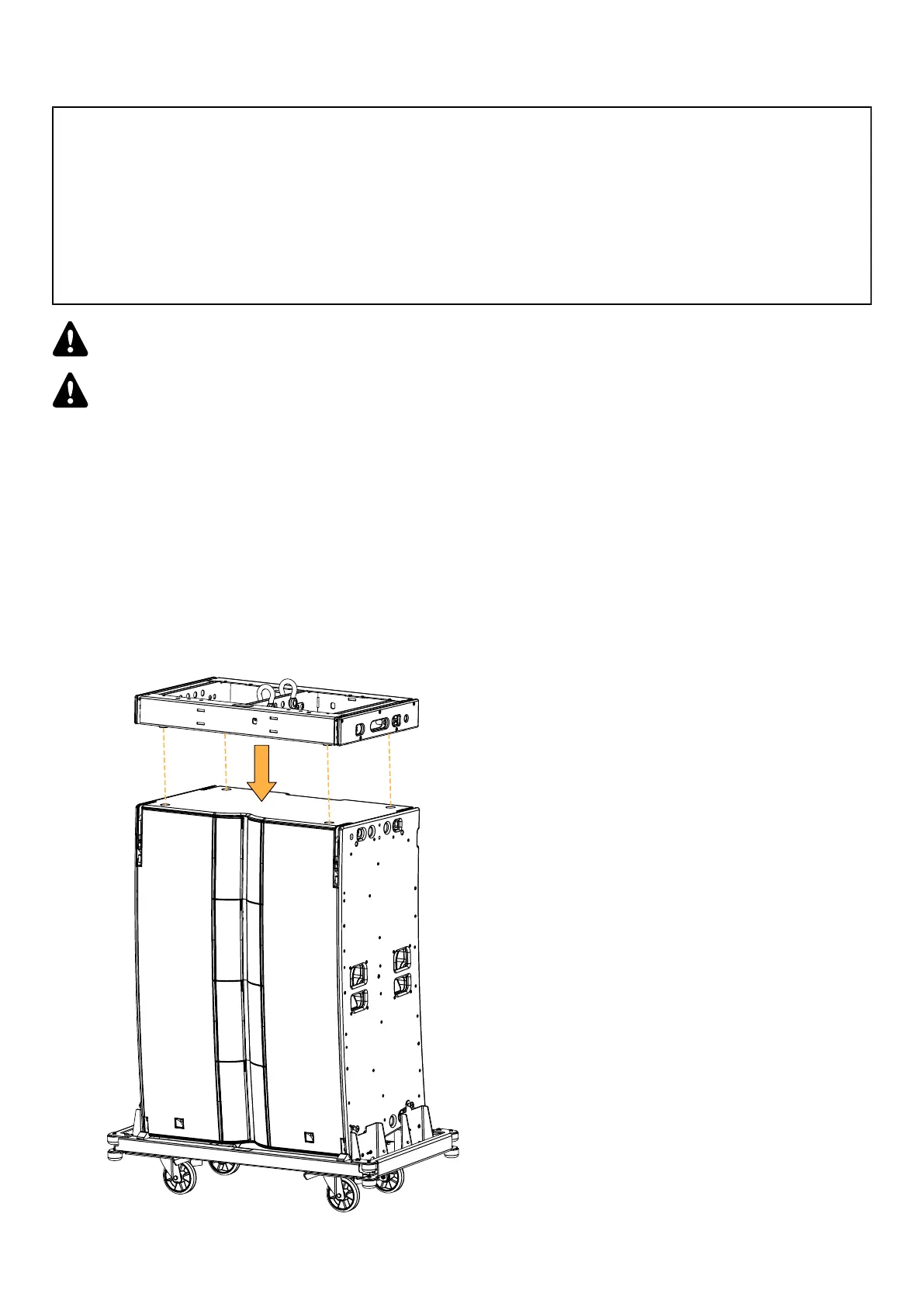

a) Position the L2-BUMP runners on the enclosure matching tracks.
60 L2 owner's manual (EN) version 2.0
