24 INSTALLATION AND MAINTENANCE MANUAL 554515_A_PUB_DATE_1_FEB_2014.DOC
3.3. DIMENSIONS AND COMPONENTS OF THE WASHERS 33-40-55 kg /
80-100-125 lb
FRONT SIDE LEFT SIDE
REAR SIDE

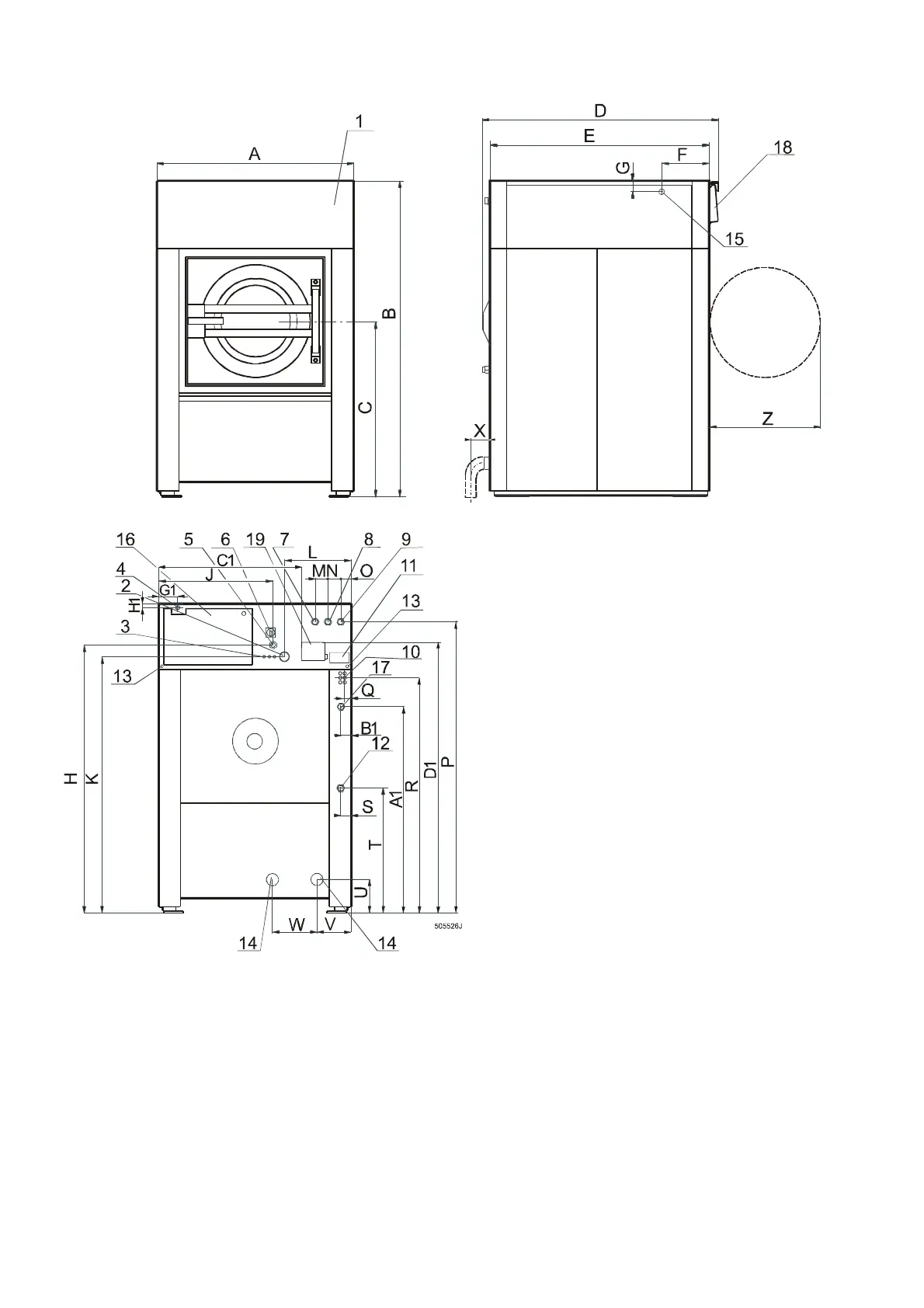

Figure 3.3. – Machines 33-40-55 kg / 80-100-125 lb
1. Operator panel
2. Tub ventilation: Ø 60mm / 2.4“
3. Lubrication points
4. Entry soap supply cable
5. Entry main power cable
6. Main switch
7. Hard cold water inlet
8. Hot water inlet
9. Soft cold water inlet
10. Hose connection soap supply
11. Data plate
12. Steam inlet
13. Equipotential bounding terminal
14. Drain outlet
15. Soap dispenser air relieve
16. Frequency inverter cover
17. Compressed air inlet
18. Soap dispenser
19. Electrical signals liquid soap
