26 INSTALLATION AND MAINTENANCE MANUAL 554515_A_PUB_DATE_1_FEB_2014.DOC
3.4. DIMENSIONS OF THE WASHERS 40-55 kg / 100-125 lb WITH FORWARD
TILTING – ON REQUEST
FRONT SIDE LEFT SIDE REAR SIDE
VIEW FROM ABOVE LEFT SIDE

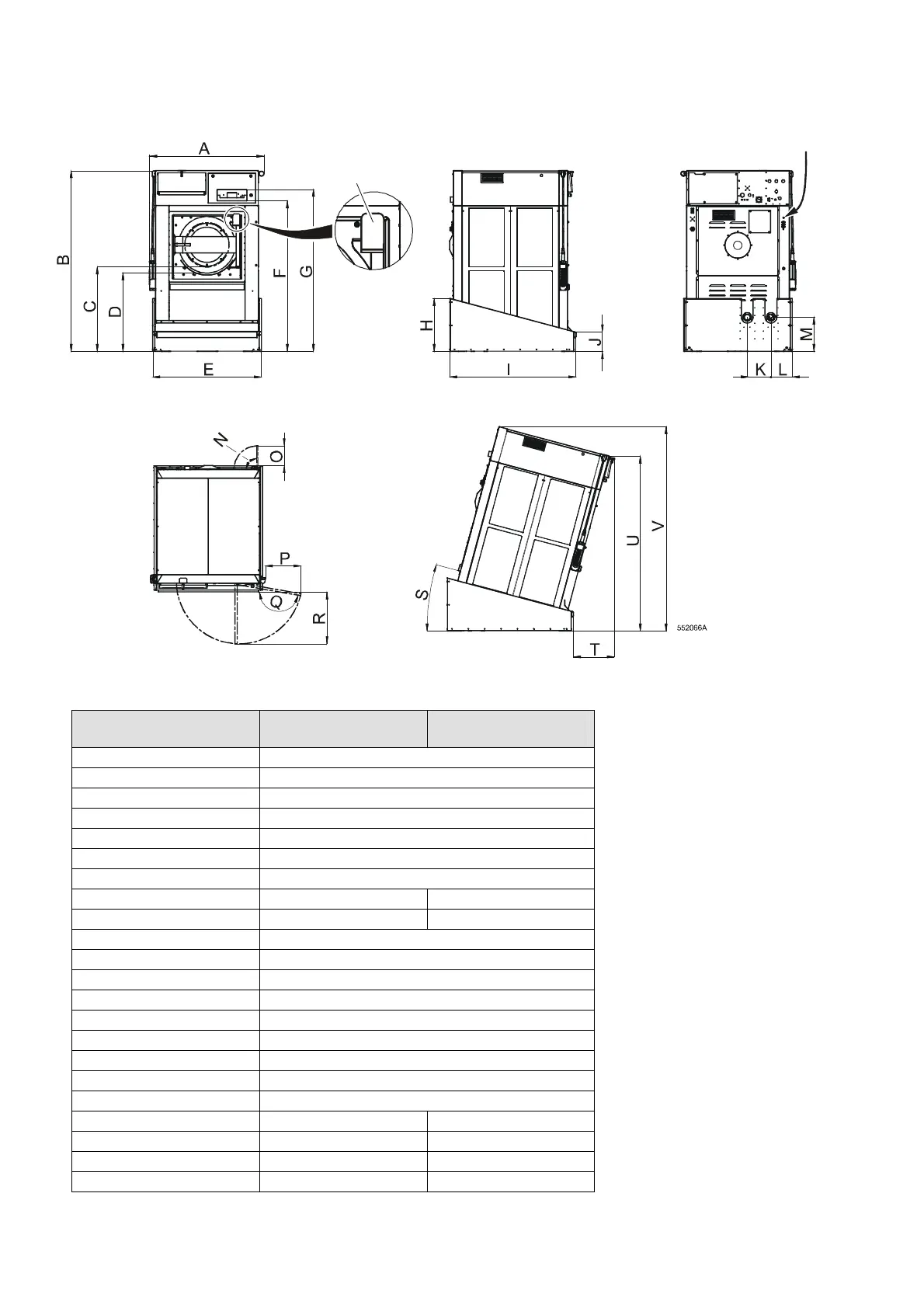

Figure 3.4. – Machines 40-55 kg / 100-125 lb with forward tilting
Machine kg / lb 40 / 100 55 / 125
A mm / inch
1328 / 52.28
B mm / inch
2096 / 82.52
C - WITHOUT LOAD mm / inch
980 / 38.58
D mm / inch
910 / 35.83
E mm / inch
1260 / 49.61
F mm / inch
1747 / 68.78
G mm / inch
1878 / 73.94
H mm / inch
614 / 24.17 662 / 26.06
I mm / inch
1463 / 57.60 1643 / 64.68
J mm / inch
228 / 8.98
K mm / inch
275 / 10.83
L mm / inch
247 / 9.72
M mm / inch
399 / 15.71
N
90°
O mm / inch
232 / 9.13
P mm / inch
413 / 16.26
Q
170°
R mm / inch
602 / 23.70
S
15° 13°
T mm / inch
478 / 18.82 410 / 16.14
U mm / inch
2026 / 79.76 2043 / 80.43
V mm / inch
2368 / 93.23 2381 / 93.74
Table 3.4. – Machines 40-55 kg / 100-125 lb with forward tilting
COMPRESSED AIR INLET
DOOR SECURING:
LATCH
