554515_A_PUB_DATE_1_FEB_2014.DOC INSTALLATION AND MAINTENANCE MANUAL 51

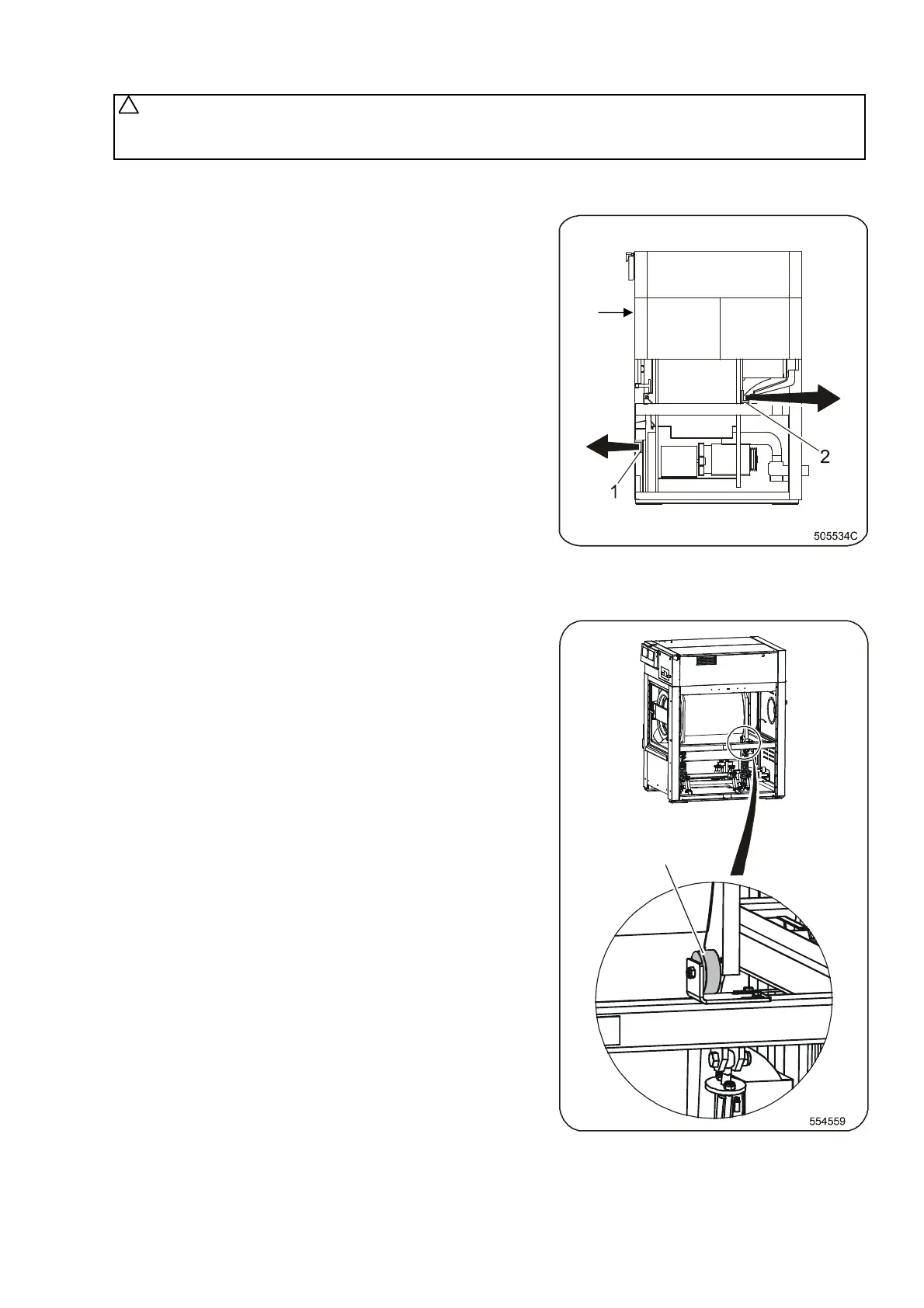

Figure 4.5.B. – Machines 40-55 kg / 100-125 lb
with tilting
BACKSTOP
FRONT
SIDE
Figure 4.5.A. – Machines 33-40-55 kg /
80-100-125 lb, Transport braces
4.5. PUTTING THE MACHINE INTO SERVICE
WARNING!
THE TRANSPORT BRACES MUST BE REMOVED PRIOR PUTTING YOUR MACHINE INTO SERVICE.
OTHERWISE YOUR WASHING MACHINE CAN BE SERIOUSLY DAMAGED!
MACHINES 33-40-55 kg / 80-100-125 lb, figure 4.5.A
Before you put the machine into operation, remove the three
striking color transport braces securing the vibrating machine
components during the transport. One brace (figure 4.5.A., pos.1)
is located in the front part of the machine, accessible after
removal of the front lower cover. The two braces (2) are
placed in the rear machine part, accessible after removal
of the rear cover. After removal of the braces, mount
the covers back to their places.
MACHINES 40-55 kg / 100-125 lb WITH TILTING
Once the transport braces are removed, place two backstops
in their places – figure 4.5.B. (supplied with the machine).
These backstops secure the machine when it is being tilted.
When the braces are removed and backstops attached,
put the guards back.
!
