554515_A_PUB_DATE_1_FEB_2014.DOC INSTALLATION AND MAINTENANCE MANUAL 31
4. INSTALLATION
4.1. HANDLING, TRANSPORT AND STORAGE
TRANSPORT AND STORAGE
WARNING!
FORKS OF LIFT TRUCK MUST HAVE SUFFICIENT LENGTH (SEE FIGURE 4.1.).
Use a lift truck or a manual skid cart for handling with the machine in transporting package.
– If possible, leave the machine in the transporting package or at least let it set on the transporting wooden
skid until the time of final installation on the foundation according the chapter 4.3. of this manual.

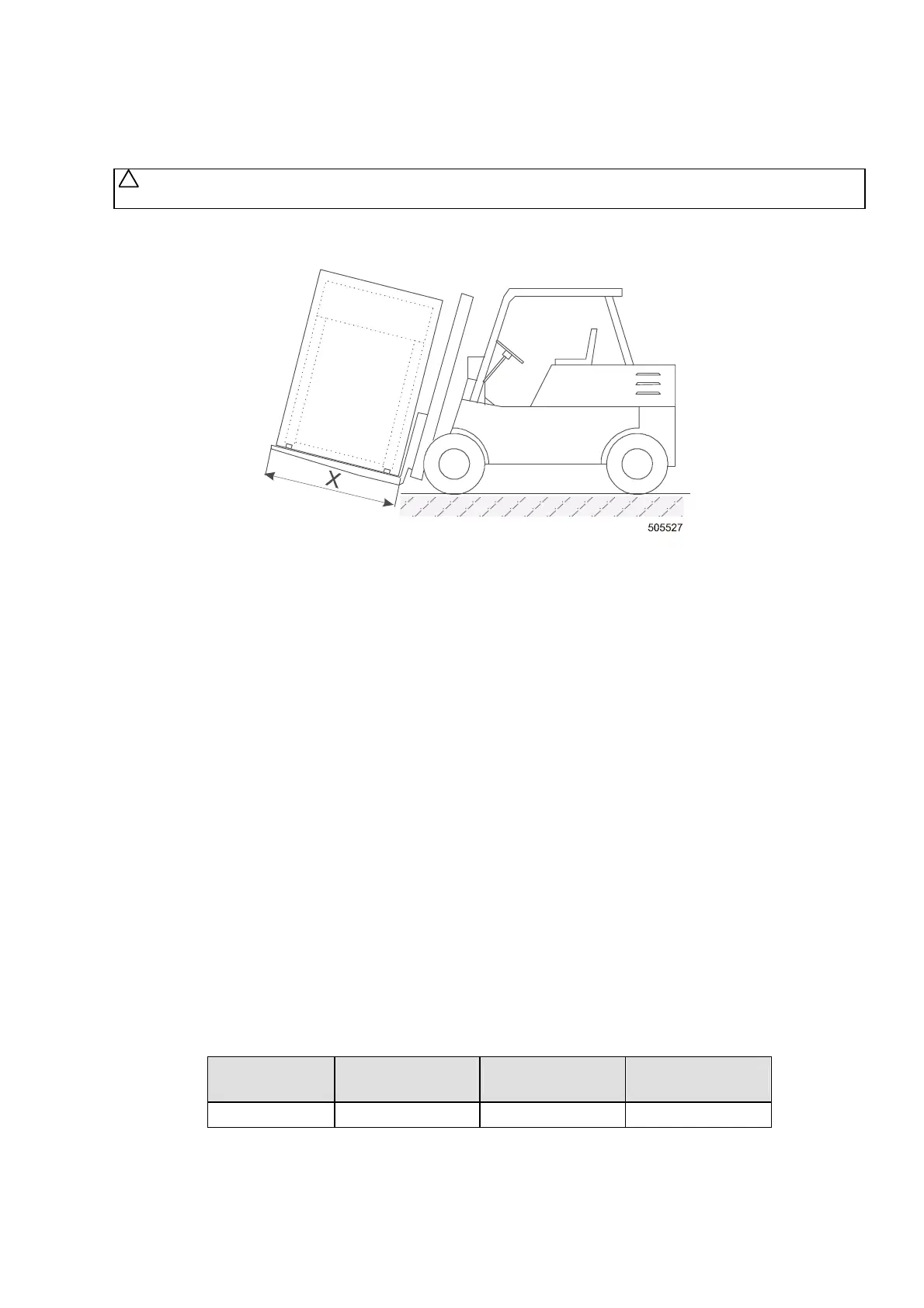

Figure.4.1. Minimum length „X“ of lift truck forks for machine model
HANDLING DURING INSTALLATION
All activities can be done only by a worker, which knows all information about the machine. Machine is delivered
to the customer in a wooden packing and protected with polyethylene film. The machine is attached to the skid
by means of four bolts M16.
To remove the machine to its final location follow these precautions:
– All passages and spaces the machine has to be transported through at installation should be reasonably
dimensioned to meet the height and width of the machine including the package.
– Never push, pull or press the components protruding from the contour line of machine (front part,
filling door, control elements, belt cover, water inlet and outlet pipes etc.).
MAKE SURE THAT THESE COMPONENTS ARE SECURED SO AS TO AVOID THEIR DAMAGE
DURING HANDLING AND INSTALLATION OF THE MACHINE.
– Make sure that the filling door are secured to avoid its opening during the handling.
– Lift the machine up by lift truck using a transport skid to which the machine has been attached.
UNPACKING
– After unpacking, check if the machine has not been damaged and if all the accessories are included
according to your order. Verify the type of your machine by its serial label and find the corresponding information
in the manual. The accessories and the manual is located inside the drum, which can be opened according to
chapter 6.1.
– Before locating the machine to its place, remove the packaging, loosen four nuts and lift the machine carefully
up - take care not to damage the machine components located in its lower part. The lift truck forks must be at
least 10 cm longer than the length of the washing machine frame, see table 4.1.
MACHINE kg / lb
33-40-55 /
80-100-125
80 / 180 100-120 / 230-275
X 1500 mm / 59“ 1800 mm / 71“ 2000 mm / 78,73“
Table.4.1. – Minimum length „X“ of a lift truck forks for individual machine model
!
