554515_A_PUB_DATE_1_FEB_2014.DOC INSTALLATION AND MAINTENANCE MANUAL 29
COMPRESSED AIR INLET
DOOR SECURING:
FINGER BACKSTOP
FINGER COMPLETE

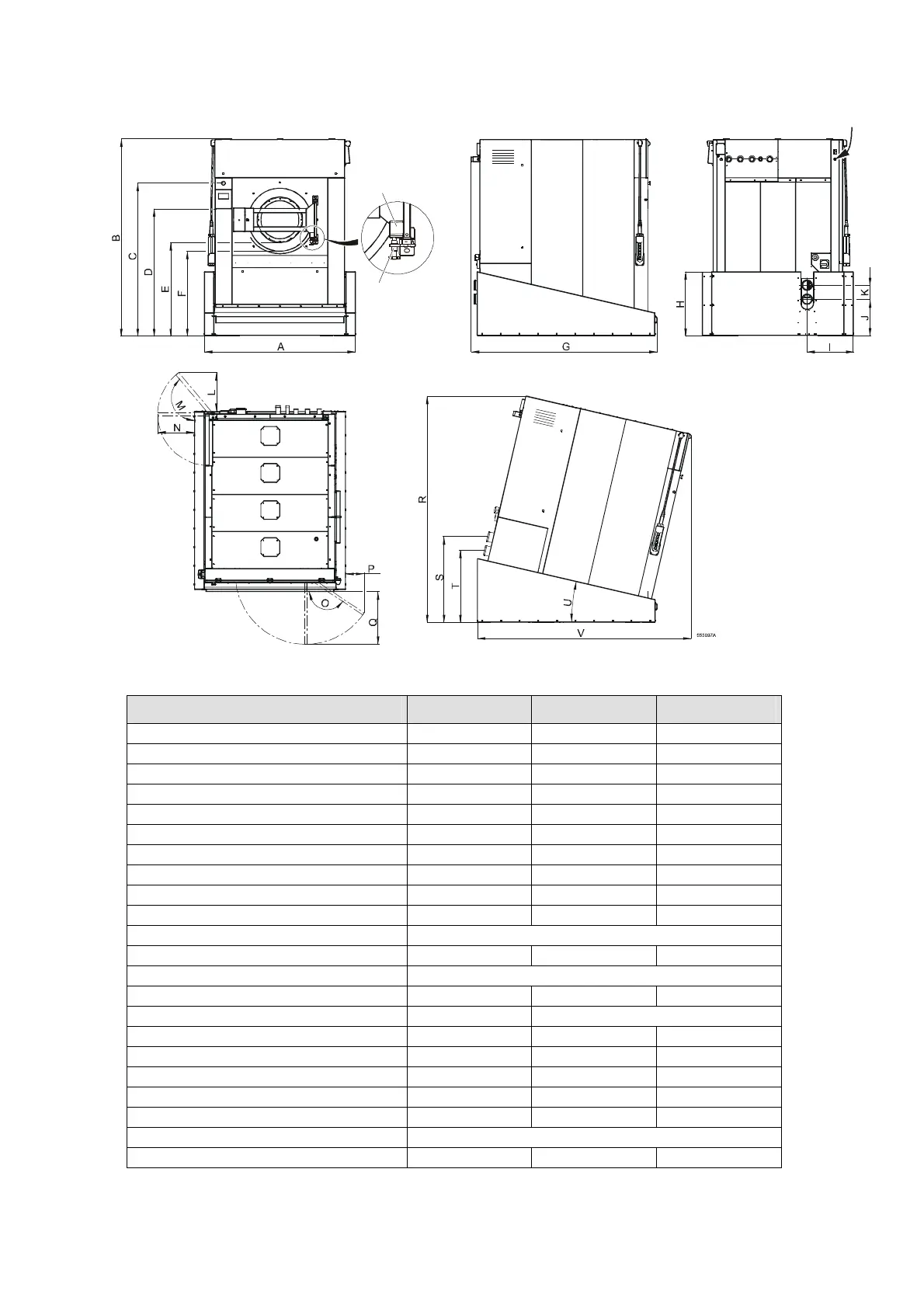

3.6. DIMENSIONS OF THE WASHERS 80-100-120 kg / 180-230-275 lb
WITH FORWARD TILTING – ON REQUEST
FRONT SIDE LEFT SIDE REAR SIDE
VIEW FROM ABOVE LEFT SIDE
Figure 3.6. – Machines 80-100-120 kg / 180-230-275 lb with forward tilting
Machine kg / lb 80 / 180 100 / 230 120 / 275
A mm / inch
1620 / 63.78 1920 / 75.59 2000 / 78.74
B mm / inch
2118 / 83.39 2192 / 86.30 2225 / 87.60
C mm / inch
1640 / 64.57 1668 / 65.67 1666 / 65.59
D mm / inch
1366 / 53.78 1394 / 54.88 1392 / 54.80
E - BOTTOM OF THE DOOR OPENING mm / inch
1008 / 39.68 1045 / 41.14 995 / 39.17
F mm / inch
910 / 35.83 977 / 38.46 915 / 36.02
G mm / inch
1993 / 78.46 2057 / 80.98 2145 / 84.45
H mm / inch
688 / 27.09 701 / 27.60 726 / 28.58
I mm / inch
496 / 19.53 644 / 25.35 682 / 26.85
J mm / inch
391 / 15.39 402 / 15.83 381 / 15
K mm / inch
155 / 6.10
L mm / inch
419 / 16.50 403 / 15.87 421 / 16.57
M
140°
N mm / inch
396 / 15.60 412 / 16.22 441 / 17.36
O
146° 150°
P mm / inch
200 / 7.87 97 / 3.82 200 / 7.87
Q mm / inch
568 / 22.36 554 / 21.81 666 / 26.22
R mm / inch
2434 / 95.83 2518 / 99.13 2564 / 100.94
S mm / inch
925 / 36.42 952 / 37.48 948 / 37.32
T mm / inch
778 / 30.63 805 / 31.69 801 / 31.54
U
13°
V mm / inch
2292 / 90.24 2365 / 93.11 2479 / 97.60
Table 3.6. – Machines 80-100-120 kg / 180-230-275 lb with forward tilting
