3. SYMBOLS ON THE MACHINE (DEPENDING ON THE MACHINE MODEL)
Caution, dangerous electrical tension,
electrical devices
Caution, other danger, read and follow
written instructions
Caution - Increased temperature
The machine hot air outlet
Warm water inlet
(red color of the label)
Soft cold water inlet
(light blue color of the label)
Hard cold water inlet
(dark blue of the label)

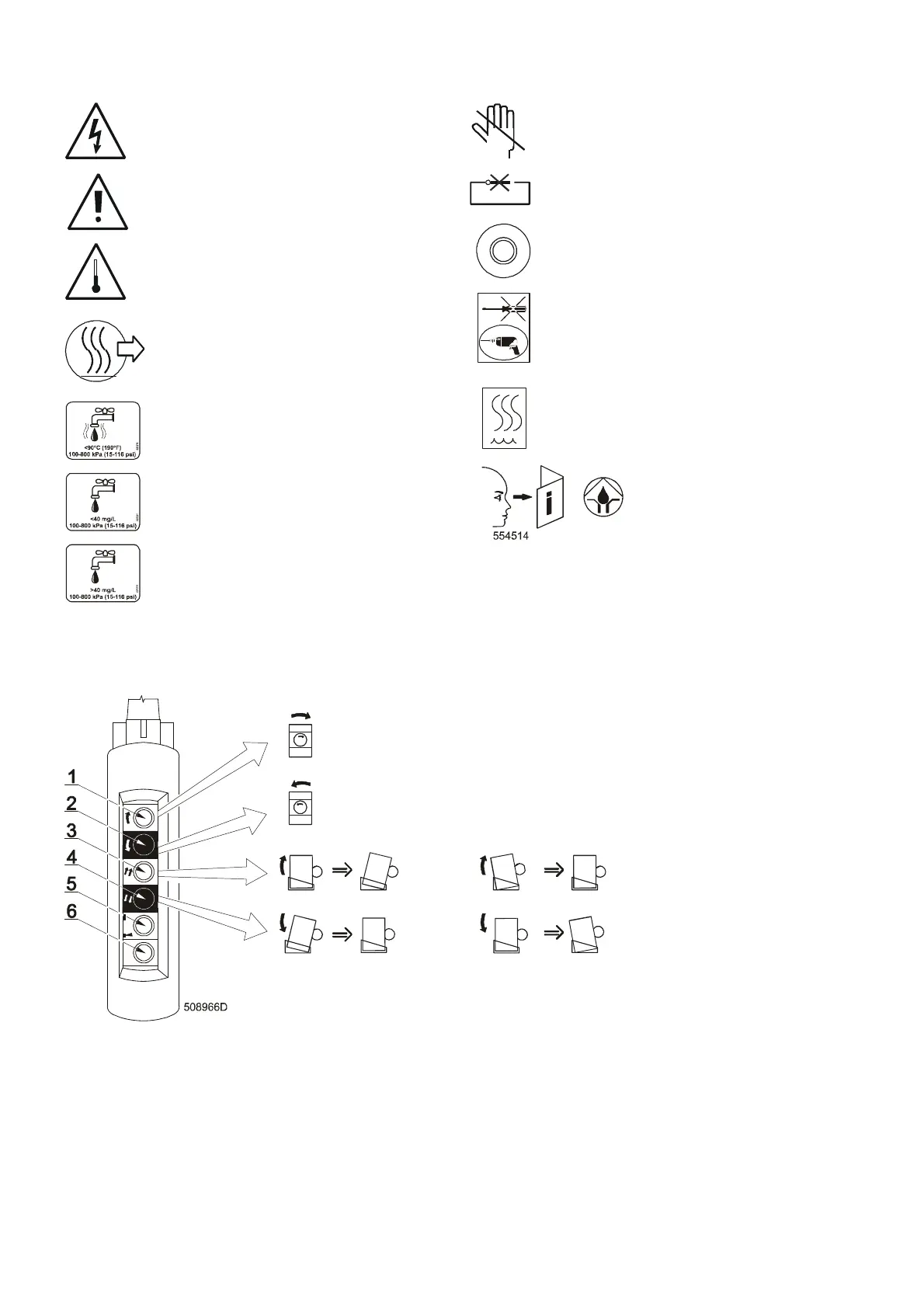

Figure 3.A. Symbols on the machine
HANGING CONTROL – MACHINE WITH TILTING SYSTEM (ON REQUEST),
NOT APPLICABLE FOR 33 kg / 80 lb MACHINE
Figure 3.B. – Hanging control
1. Button for drum rotating, direction of rotating is clockwise from the frontal view.
2. Button for drum rotating, direction of rotating is counter clockwise from the frontal view.
3. Button for tilting, direction of tilting is forward.
4. Button for tilting, direction of tilting is backward.
5. Button for permission of washer tilting – two-hand control.
6. Button for permission of drum rotation – two-hand control.
Do not put your hands on the marked area
Do not close or cover
In case of emergency press the
emergency button to stop the machine
The holes to be drilled not punched
Steam
Lubrication point
FORWARD TILTING
BACKWARD TILTING
–
A
PPLICABLE TO MACHINES WITH
BOTH-WAY TILTING (FORWARD AND BACKWARD) ONLY

LAVAMAC LH-800 Specifications

General

Brand	LAVAMAC
Model	LH-800
Category	Washer
Language	English
