554515_A_PUB_DATE_1_FEB_2014.DOC INSTALLATION AND MAINTENANCE MANUAL 27
3.5. DIMENSIONS AND COMPONENTS OF THE WASHERS 80-100-120 kg /
180-230-275 lb
RIGHT SIDE
FRONT SIDE
REAR SIDE LEFT SIDE

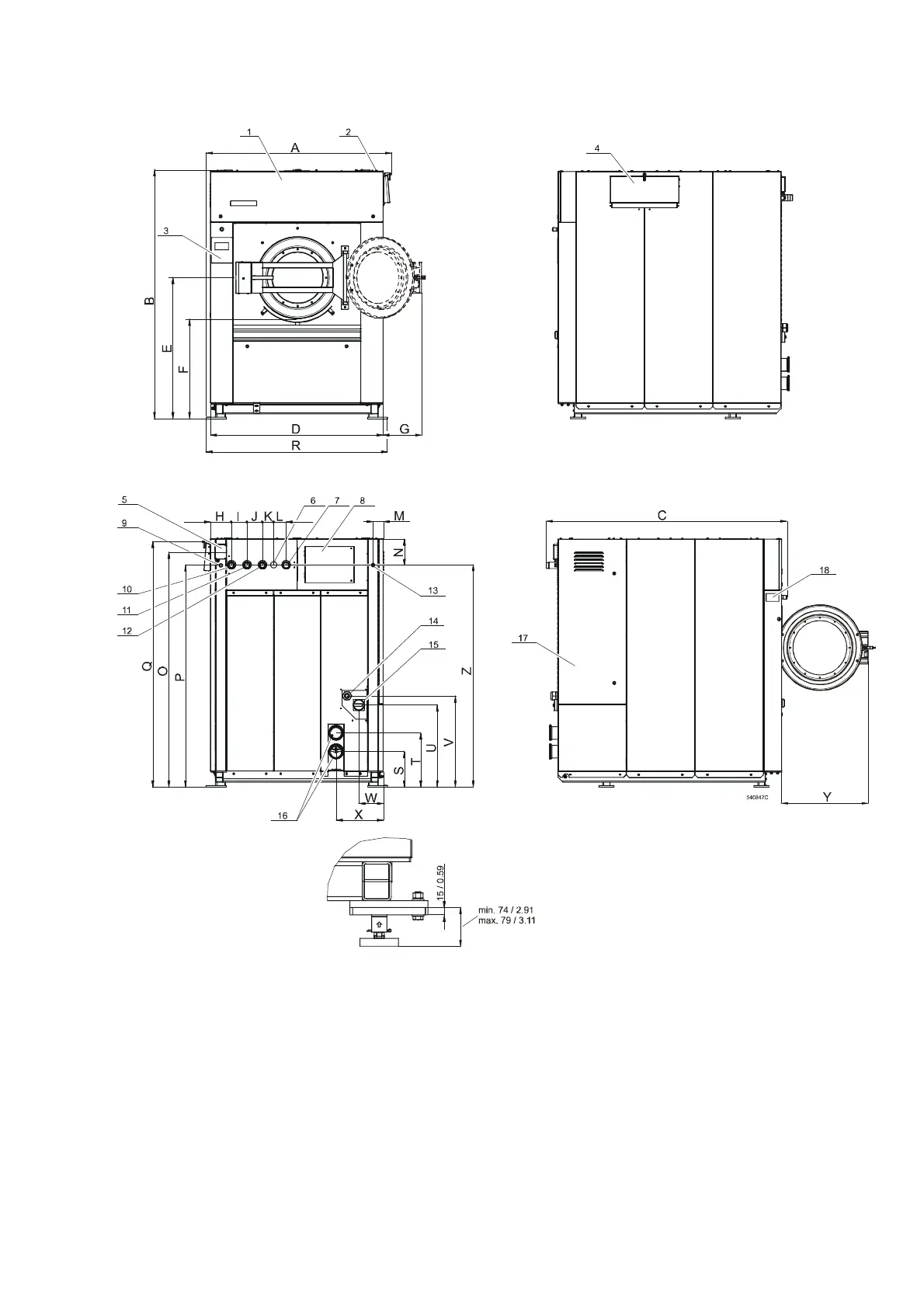

Figure 3.5. – Machines 80-100-120 kg / 180-230-275 lb, (dimensions are stated in mm / inches)
1. Box of electrical components
2. Soap dispenser ventilation
3. Control panel
4. Soap dispenser
5. Electrical signals liquid soap
6. Steam inlet
7. Tub ventilation
8. Cover for pneumatic components
9. Hose connection soap supply
10. Hard cold water inlet
11. Soft cold water inlet
12. Hot water inlet
13. Compressed air inlet
14. Entry main power cable
15. Main switch
16. Drain outlet
17. Electric switchboard cover
18. Serial label
WITH WEIGHING
