5.11. THRUST OF DOOR SEAL
If there is a water leakage around the door it is necessary to find out if the problem has been caused
due to the door shift out of its position or if the door seal thrust should be adjusted. In some cases the door
seal has to be replaced.
ADJUSTING ON THE SIDE OF THE DOOR HANDLE
1. Unscrew the bolt (figures 5.11.A., 5.11.B., detail „B“, pos. 1) securing the casing of the door handle (2).
2. Unscrew the casing (2) from the door bearer (3) always by a whole turn that the groove in the casing thread (2)
appears bellow the securing bolt (1).
3. To make the casing turning (2) easier, use the semicircle notches (4) between the casing (2) and the handle pin (5),
in which you insert cylindrical object (a bolt etc.). By turning the handle, the casing (2) will also move.
4. After the door thrust has been adjusted, tighten up the securing bolt (1) to the groove in the casing (2) thread.

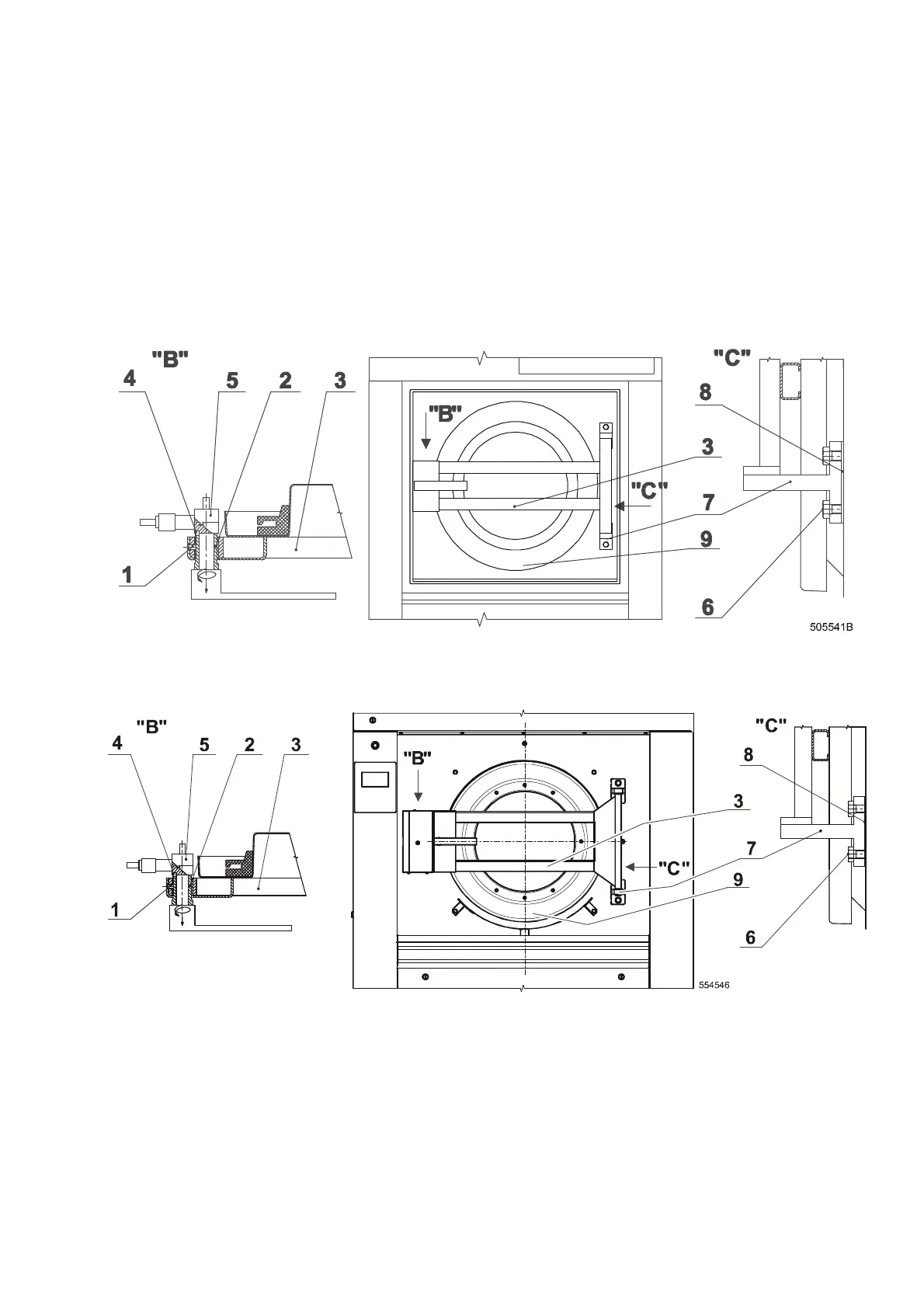

Figure 5.11.A. – Machines 33-40-55 kg / 80-100-125 lb
Figure 5.11.B. – Machines 80-100-120 kg / 180-230-275 lb
1. Handle bolt
2. Handle sleeve
3. Door carrier beam
4. Semicircle cuts
5. Handle pin
6. Hinge bolt
7. Hinge
8. Elimination washer
9. Door
