Page 14
KG/KC 024, 030, 036, 048, 060, 072, 074, 090
G-Field-Furnished Blower Drives
For field-furnished blower drives, use belt drive blower
tables to determine BHP and RPM required. Reference
the drive kit specification table and manufacturer's drive
number table.

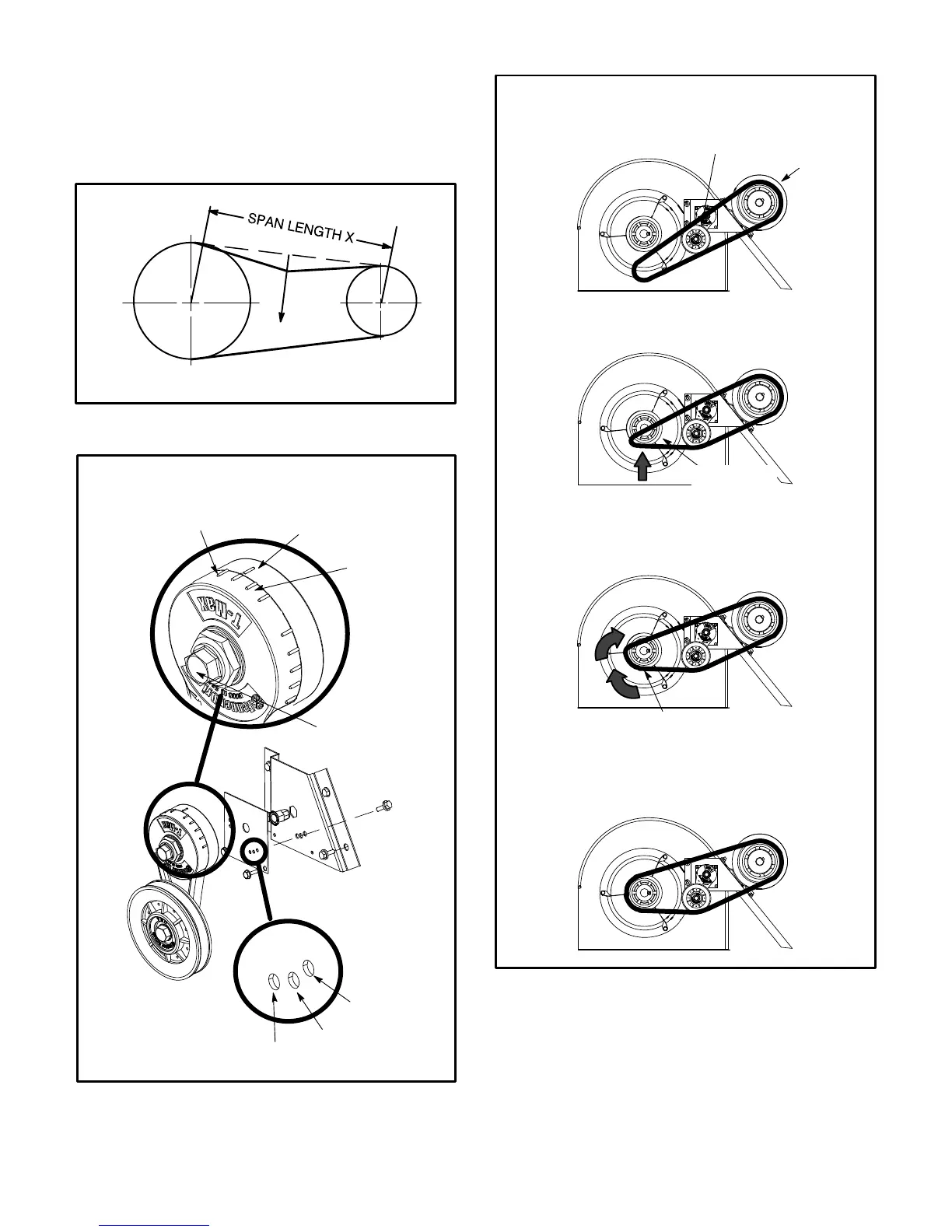

MEASURE BELT TENSION
FIGURE 21
DEFLECTION 1/64” PER INCH OF SPAN
OR 1.5mm PER 100mm OF SPAN
FORCE
FIGURE 22
ADJUST BELT TENSIONER
MAXIMUM
TENSION
MINIMUM
TENSION
INDICATOR SHOULD BE
BETWEEN MINIMUM AND
MAXIMUM TENSION LINES
FACTORY-SET
POSITION
TIGHTER
BELT POSITION
TENSIONER
TIGHTEST
BELT
POSITION
BRACKET
TIGHTEN MOUNTING
BOLT TO 22 LB./FT.
USING 9/16” WRENCH
INSTALL BELT
FIGURE 23
1
2
3
4
TENSIONER
DRIVER
PULLEY
DRIVEN
PULLEY
ROTATE DRIVEN
PULLEY TO SEAT BELT
