Page 50
KG/KC 024, 030, 036, 048, 060, 072, 074, 090
60
70
80
90
100
110
120
130
100 110 120 130 140 150 160 170
Liquid Temperature (° F)
Suction Pressure (psig)
Outdoor Temperature (°F)

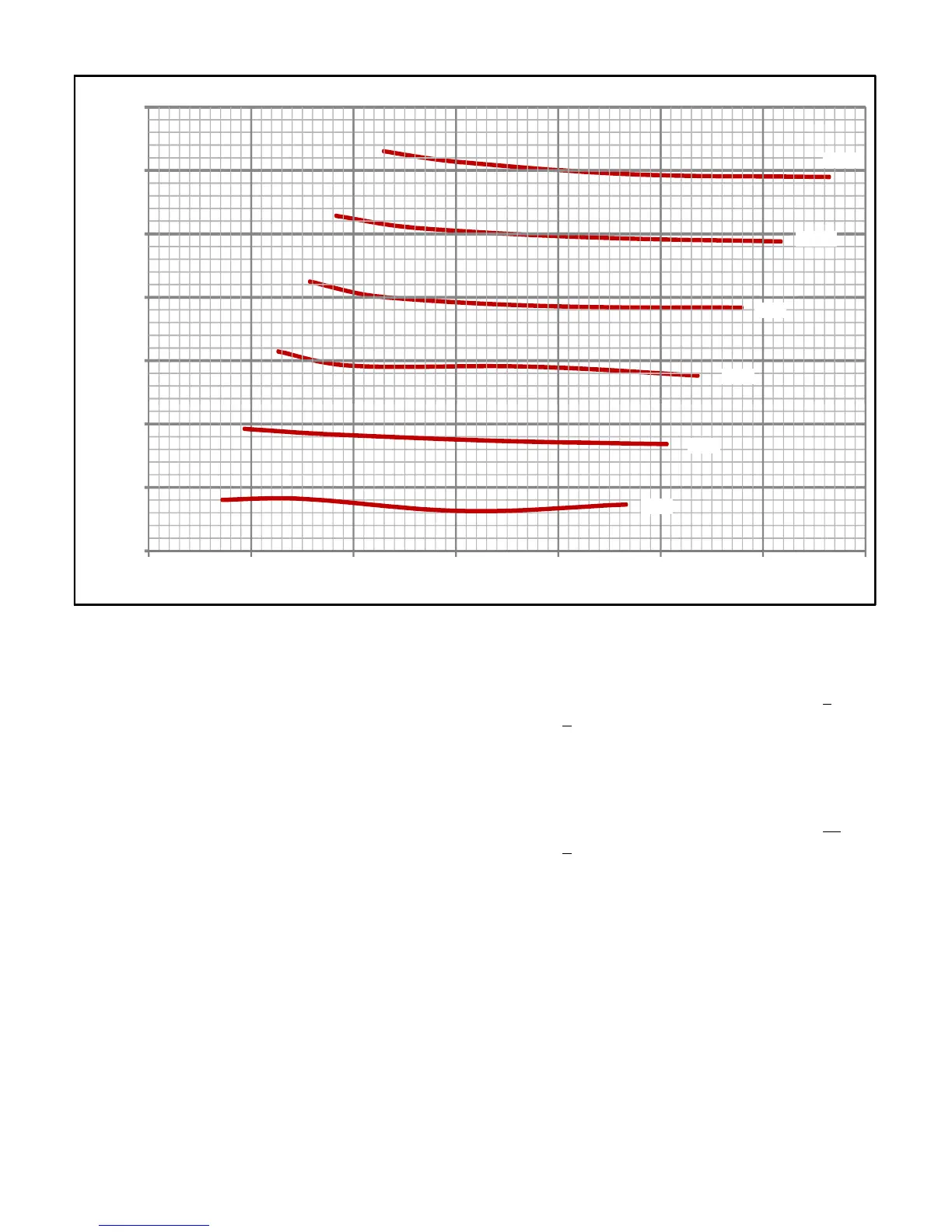

KGA/KCA 090 Charging Curves
115°
105°
95°
85°
75°
65°
F-Compressor Controls
See unit wiring diagram to determine which controls are
used on each unit. Optional controls are identified on
wiring diagrams by arrows at junction points.
1- Freezestat (S49)
Switch de-energizes compressor when evaporator
coil temperature falls below 29°F (-2°C) to prevent
evaporator freeze-up. Switch resets when
evaporator coil temperature reaches 58°F (15°C).
2- High Pressure Switch (S4)
High pressure switches are SPST N.C. switches
which open on a pressure rise. The switch is a
manual reset switch on KGA/KCA036, 048, 060 &
090 units. The switch is an auto-reset switch on
KGB/KCB024-074 and KGA/KCA072 units.
S4 is wired in series with the compressor contactor
coil and is located on the compressor discharge line.
When discharge pressure rises to 640+
10psig
(4412+
69kPa), indicating a problem with the system,
the switch opens. The respective compressor is
de-energized but the economizer can continue to
operate.
Auto-reset switches close at 475+2
0psig
(3275+
138kPa)
3- Compressor High Temperature Limit (S5)
S5 is located on the top of Interlink compressors and
is wired in series with the high pressure switch S4.
To Next Page
