Removing the front USB connector assembly
To remove the front USB connector assembly, complete the following steps.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 73.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page 78).
4. Remove the bezel (see “Removing the bezel” on page 76).
5. Disconnect the front USB cable from the system board, noting the routing of the
cable (see “System-board internal connectors” on page 10 for the location of the
front USB connector).
6. Press down and hold the release tab on the top of the front USB housing; then,
tilt the top of the housing away from the chassis and lift the housing out of the
opening in the chassis.

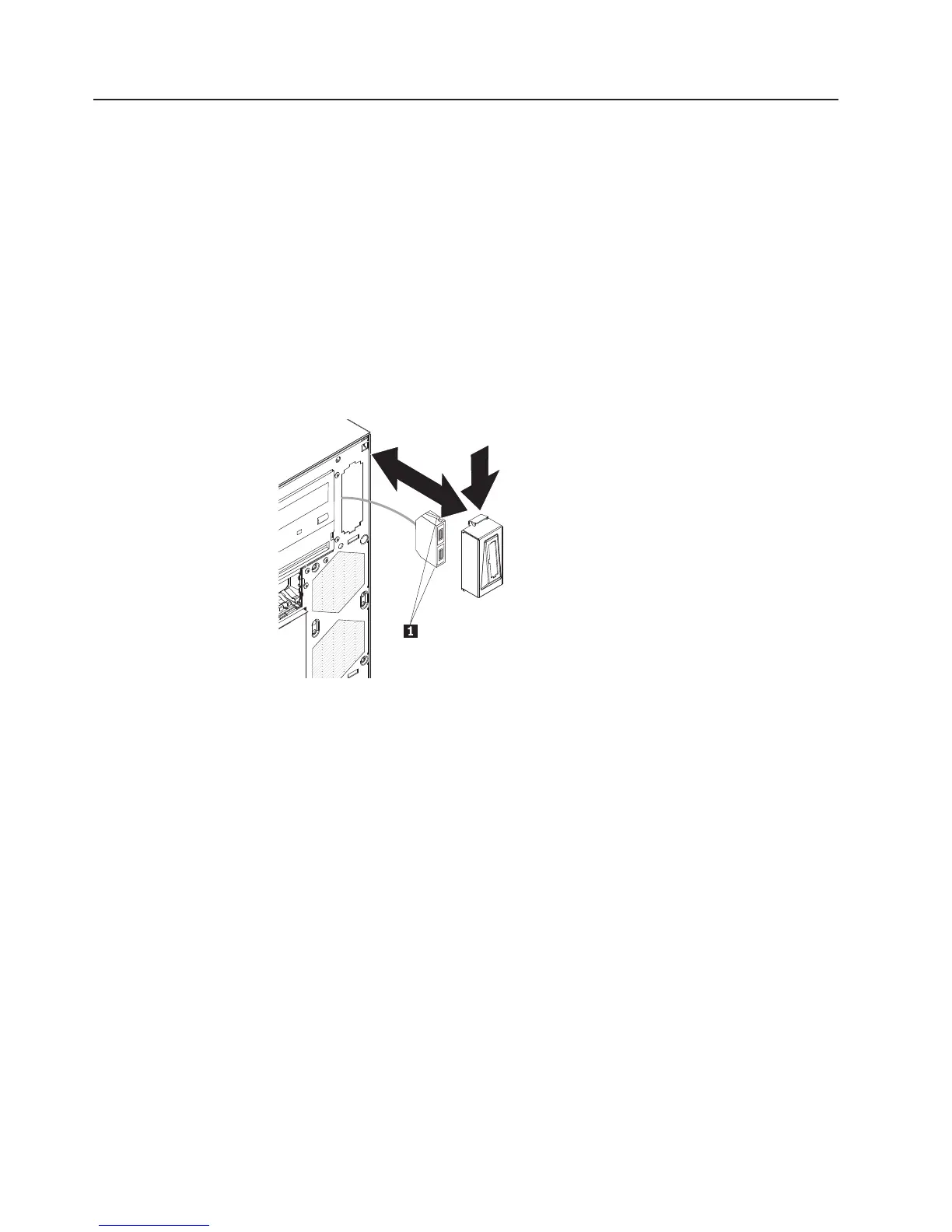

7. Squeeze the spring clips 1 on the sides of the front USB connector assembly
and pull the assembly out of the back of the housing.
8. Carefully pull the front USB cable out of the opening in the chassis.
9. If you are instructed to return the front USB connector assembly, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
110 ThinkServer TD100 and TD100x: Hardware Maintenance Manual
