Internal connectors, LEDs, and switches
The following illustrations show the connectors, light-emitting diodes (LEDs), and
switches on the system board. The illustrations might differ slightly from your
hardware.
System-board internal connectors

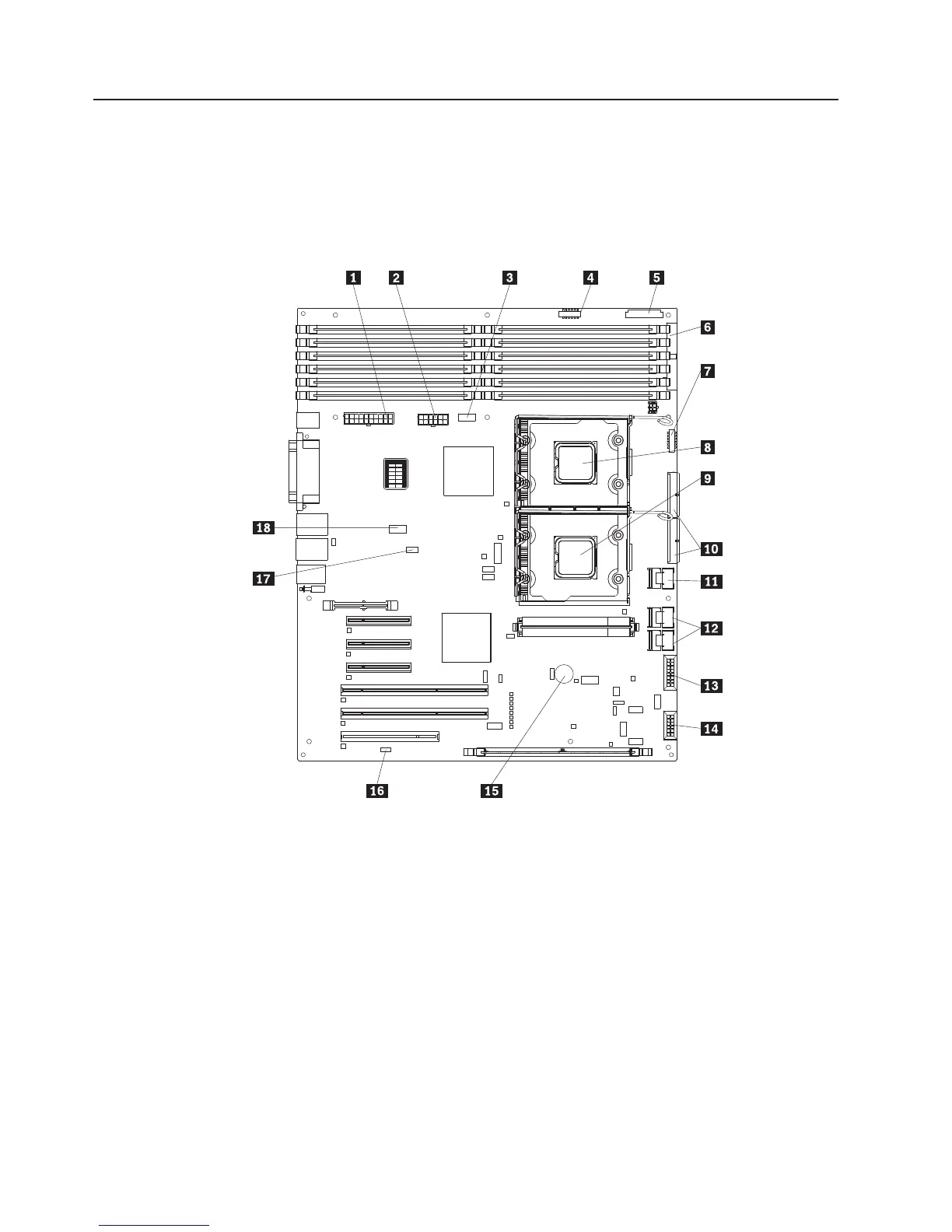

The following illustration shows the internal connectors on the system board.
1
2
3
4
5
6
7
8
9
10
11
12
DIMM LEDs
1 Main power 10 SAS/SATA backplane power
2 Power 11 Simple-swap SATA backplate
3 Power 12 Hot-swap SAS/SATA signal
4 USB tape 13 Hot-swap main fan
5 Front panel 14 Hot-swap fan (redundant)
6 Primary IDE 15 Battery
7 Front USB 16 Wake on LAN
8 Microprocessor 1 17 COM 2 header
9 Microprocessor 2 18 Rear fan
10 ThinkServer TD100 and TD100x: Hardware Maintenance Manual
