Removing and replacing Tier 2 CRUs
You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional
charge, under the type of warranty service that is designated for the server.
The illustrations in this document might differ slightly from your hardware.
Removing the battery
To remove the battery, complete the following steps.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 73.
2. Turn off the server and all attached devices; then, disconnect all power cords
and external cables.
3. Unlock and remove the side cover (see “Removing the side cover” on page 78).
4. Remove any adapters that impede access to the battery.
5. Locate the battery on the system board (see “System-board internal connectors”
on page 10).
6. Remove the battery:

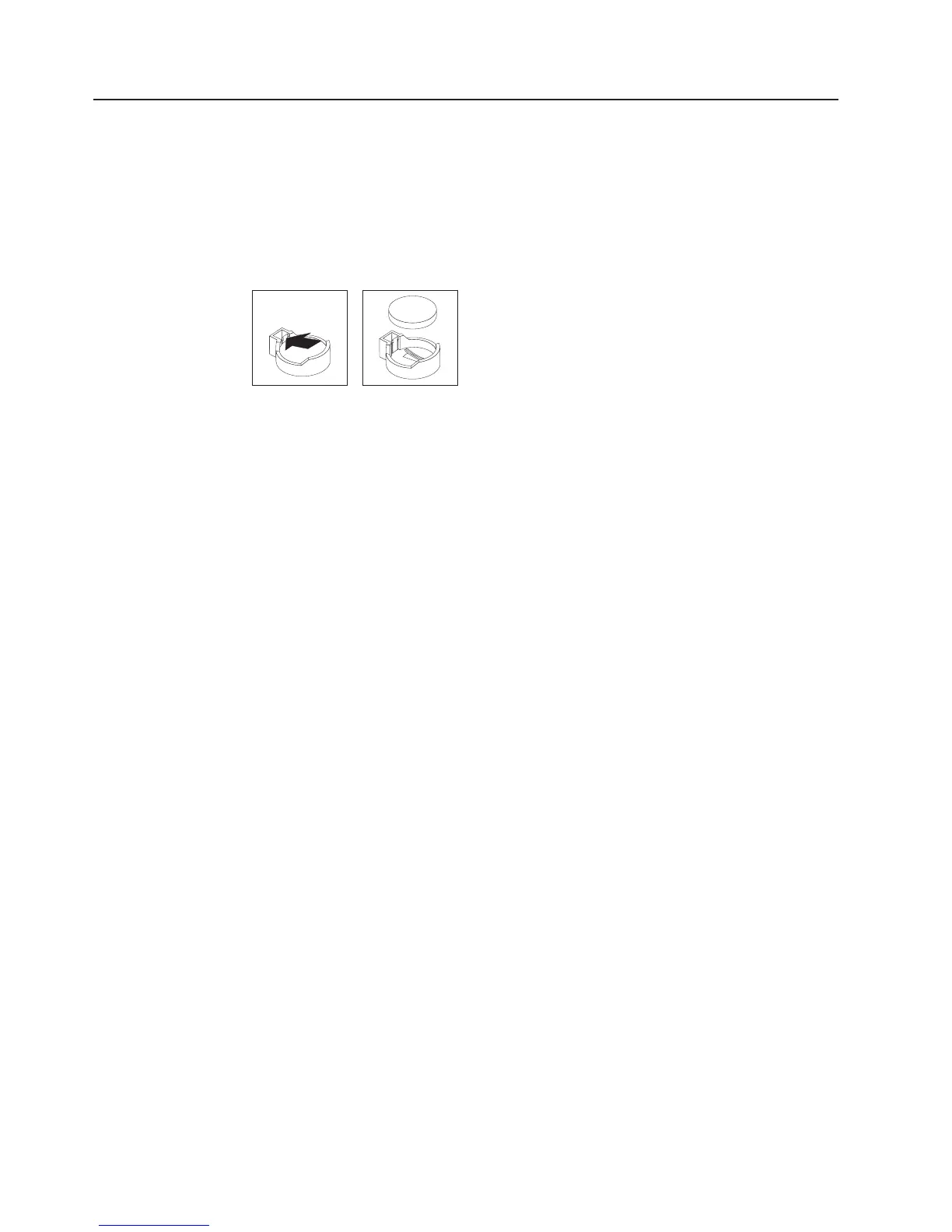

a. Use a fingernail to press the top of the battery clip away from the battery.
The battery pops up when it is released.
b. Use your thumb and index finger to lift the battery from the socket.
Installing the battery
The following notes describe information that you must consider when replacing the
battery in the server.
v You must replace the battery with a lithium battery of the same type from the
same manufacturer.
v To order replacement batteries, call 1-800-426-7378 within the United States, and
1-800-465-7999 or 1-800-465-6666 within Canada. Outside the U.S. and
Canada, call your Lenovo marketing representative or authorized reseller.
v After you replace the battery, you must reconfigure the server and reset the
system date and time.
v To avoid possible danger, read and follow the following safety statement.
114 ThinkServer TD100 and TD100x: Hardware Maintenance Manual
