Easy LED Diagnostics panel (TD100x only)
To remove the Easy LED Diagnostics panel, complete the following steps.

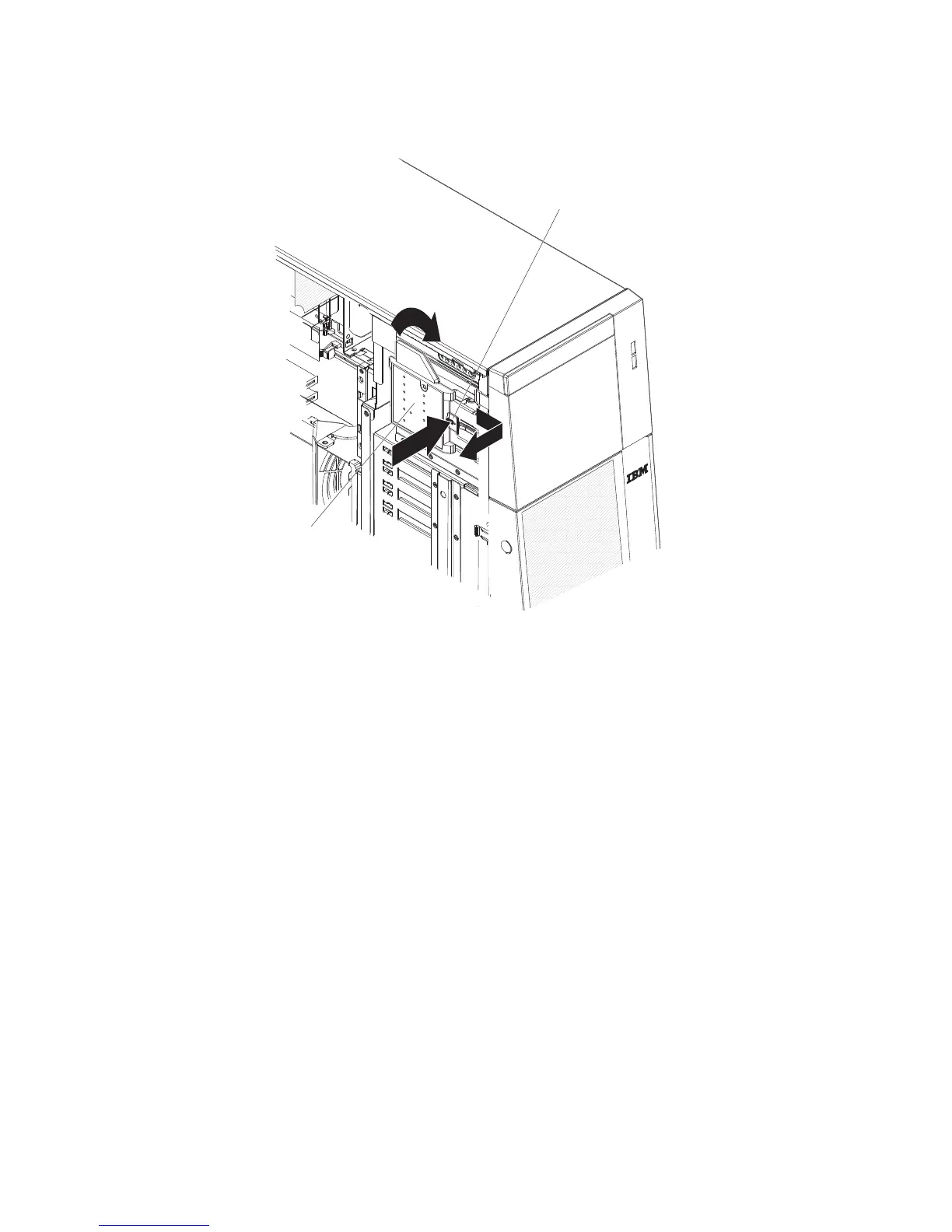

Light path
diagnostics panel
Release Tab
1. Read the safety information that begins on page vii and “Safety statements” on
page x.
2. Turn off the server and peripheral devices, and disconnect the power cords and
all external cable as necessary to replace the device.
3. Unlock and remove the left-side cover (see “Removing the side cover” on page
78).
4. Disconnect the Easy LED Diagnostics panel cable from the system board.
5. Press in on the release tab and twist the Easy LED Diagnostics panel clockwise
until it stops; then, remove the panel from the server.
To install a replacement Easy LED Diagnostics panel, complete the following steps:
1. While you hold the cable out of the way, position the Easy LED Diagnostics
panel over the slots on the side of the drive bay cage.
2. Rotate the panel counter clockwise until it clicks into place.
3. Connect the cable to the system board.
4. Install the left-side cover and close the bezel.
5. Reconnect power cords and external cables.
146 ThinkServer TD100 and TD100x: Hardware Maintenance Manual
