Lenovo ThinkServer RS110 Hardware Maintenance Manual

6. If necessary, remove the Remote Supervisor Adapter II SlimLine retention tab
and store it for future use.

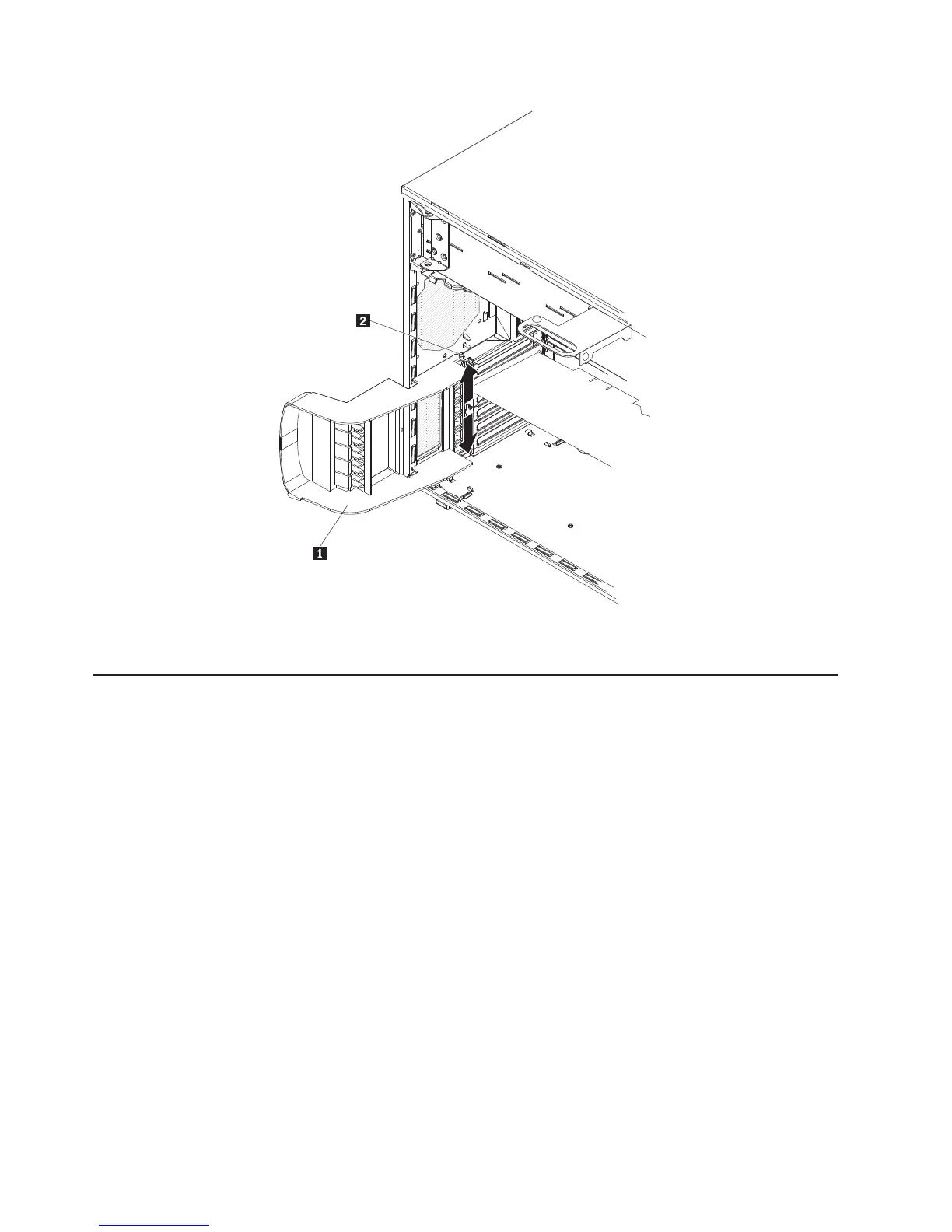

Installing the rear adapter retention bracket
To install the rear adapter retention bracket, complete the following steps:
1. If you remove the Remote Supervisor Adapter II SlimLine retention tab earlier,
reinstall it and any other adapters you might have removed.
2. Position the rear adapter retention bracket so that the hole in one of the hinge
points is aligned with the hinge pin on the chassis; then, place the hinge pin
through the hole on the chassis.
3. Rotate the adapter guide into place so that the hole in the opposite hinge point
snaps into place over the hinge pin on the chassis.
4. Install the side cover (see “Installing the side cover” on page 79).
5. Lock the side cover if it was unlocked during removal.
6. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
112 ThinkServer TD100 and TD100x: Hardware Maintenance Manual
