Removing and replacing Self-service CRUs
Replacement of Self-service CRUs is your responsibility. If Lenovo installs a
self-service CRU at your request, you will be charged for the installation.
The illustrations in this document might differ slightly from your hardware.
Removing the bezel
To remove the bezel, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 73.
2. Unlock the side cover.

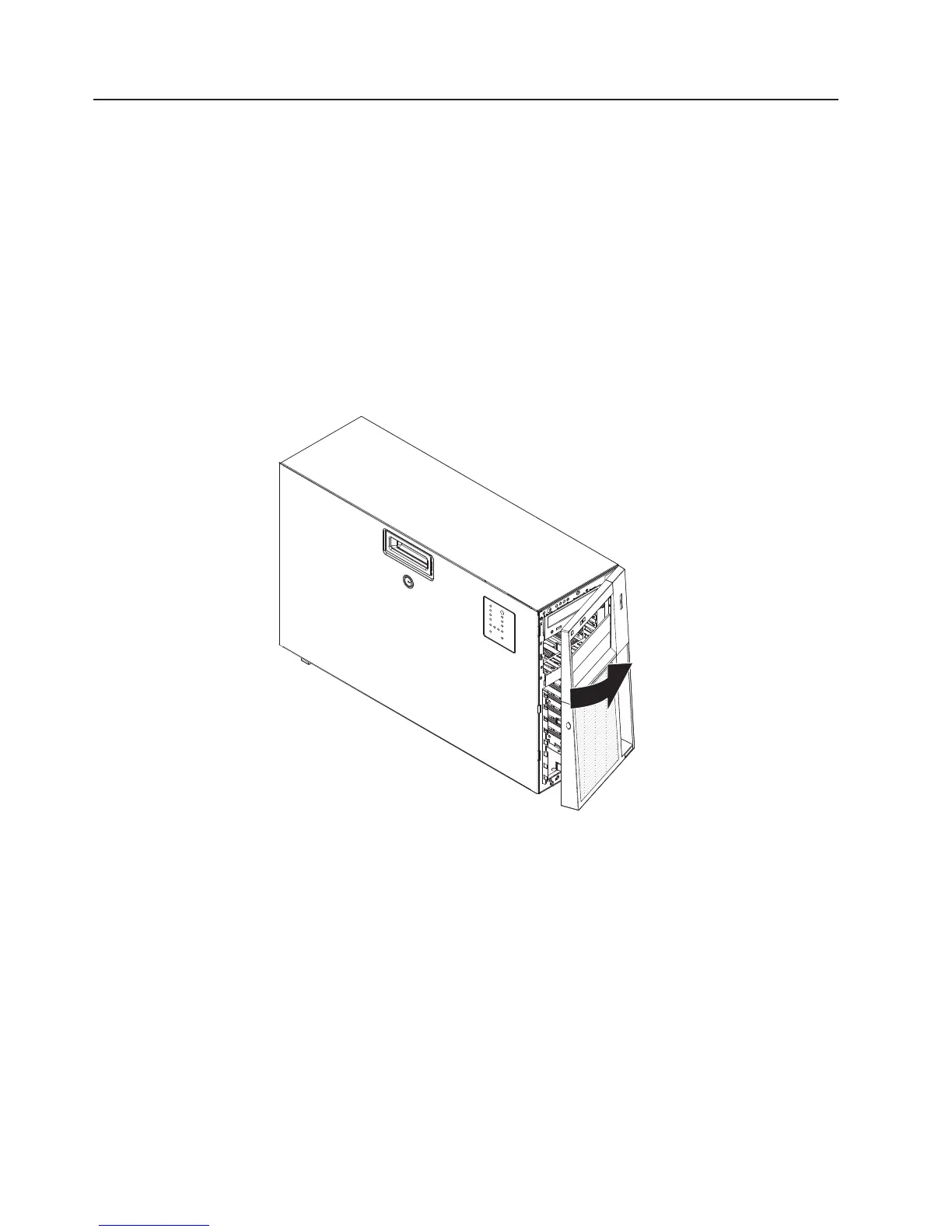

3. Position your finger on the depressed area on the left side of the bezel and
rotate the bezel away from the server. After rotating the bezel beyond 90°, pull
the bezel off the server and set it aside.
76 ThinkServer TD100 and TD100x: Hardware Maintenance Manual
