Information SET-02 37
DIGITAL plus
13.5 Programming on the programming track" â step by step
instructions
Pull out the 4-terminal green connector UVJK of the power
station LV200 which is connected to your LH200. This
disconnects the tracks of your model railway from the power station
and switches off the power supply. If you have more power stations
connected, then also pull out the terminal green 3 terminal green
connector CDE.
Caution make sure you disconnect the "CDE" connector from the
LV200 that is connected to the LH200 as track signals will also
transverse down these wires to other connected LV200s.
SET-02 contains a second 4-terminal green connector.
Connect terminals J and K to the programming track. This
track must be separated electrically from the rest of your track
system. If you want to program a switch decoder, you can connect
it directly to the terminals J and K.
Connect the terminals allocated to U and V to your model
railway transformer and plug this into the LV200. You can also
use a switch to disconnect the LV200 from the layout, but you must
ensure you switch it before you enter program track programming
mode.

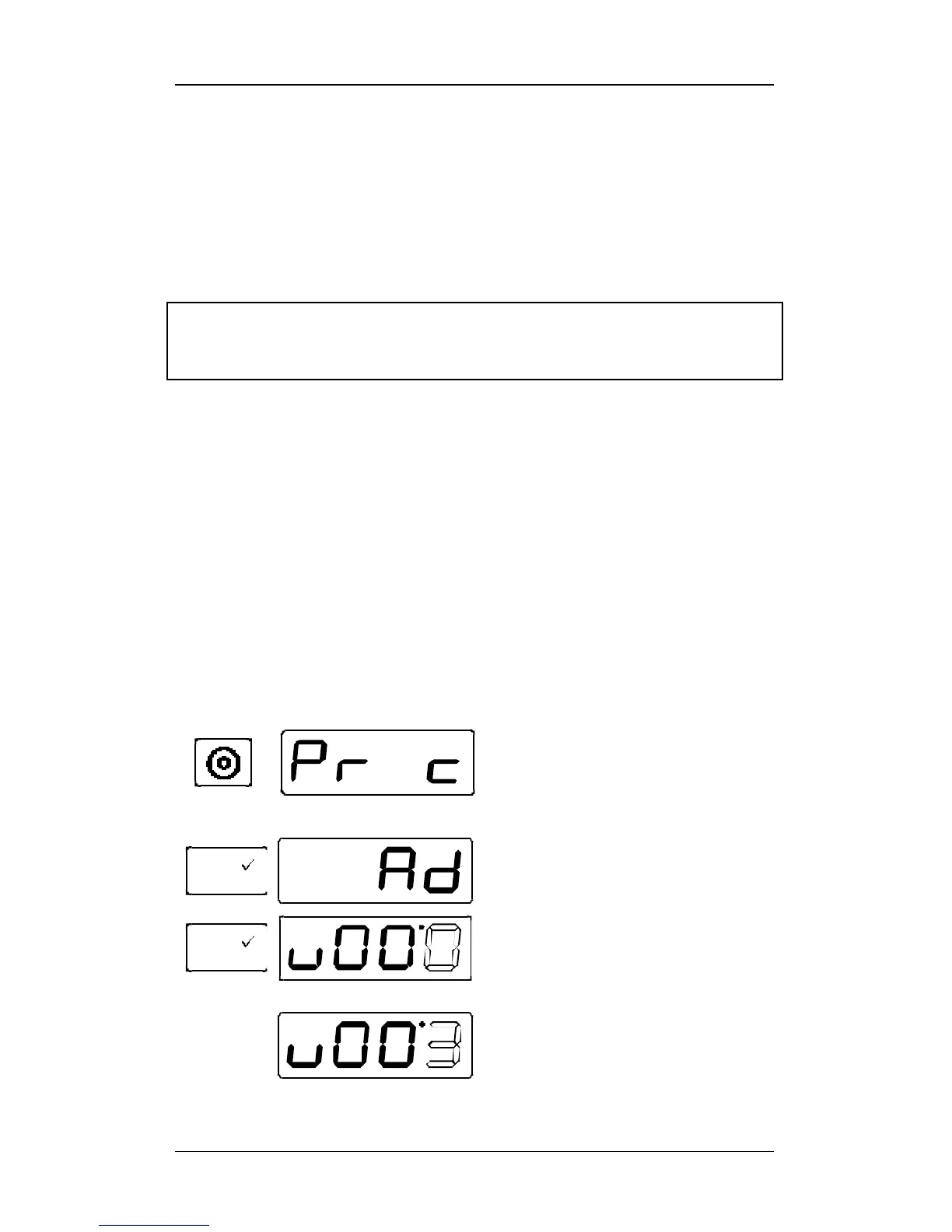

To begin unplug the black coil cable from the LH200, press
the "STOP"-key of LH200 and keep it pressed.
While you are still pressing the "STOP"-
key, replug the black coil cable into the
LH200 ( "programming on the
programming track" can be accessed only
if you start operating SET-02 while
pressing the "STOP"-key).
A
First, it is suggested that you program the
address (CV1) of a locomotive. If you
wish to do this, confirm with "Aî".key.
A
You are now asked to enter the value that
you want to program.
The alteration of the value is executed in
the manner familiar to you from other
menus. If you want to program a 4-digit
address, the small ''u" will disappear from
the display if you press key "1".
