Information SET-02 49
DIGITAL plus
Pin # Color Description
Pin 1 White "C" Control Bus Connection
Pin 2 Black Ground "M"
Pin 3 Red - RS-485 "B"
Pin 4 Green + RS-485 "A"
Pin 5 Yellow +12 volts "L"
Pin 6 Blue "D" Control Bus Connection
15.4.4 Installation considerations
There must not be a capacitor connected to the track for
interference control. A capacitor is only needed for conventional
operations to prevent radio interference. In DCC operation a
capacitor corrupts the data format and the error free data transfer is
disturbed.
It is normal for the Power Station to get warm during operation.
Ensure sufficient airflow around the Power Station to prevent the
internal safety circuit from activating during normal operations.
Never allow your layout to operate without supervision! If
there is an unnoticed short, the heat build-up could present
a fire hazard!

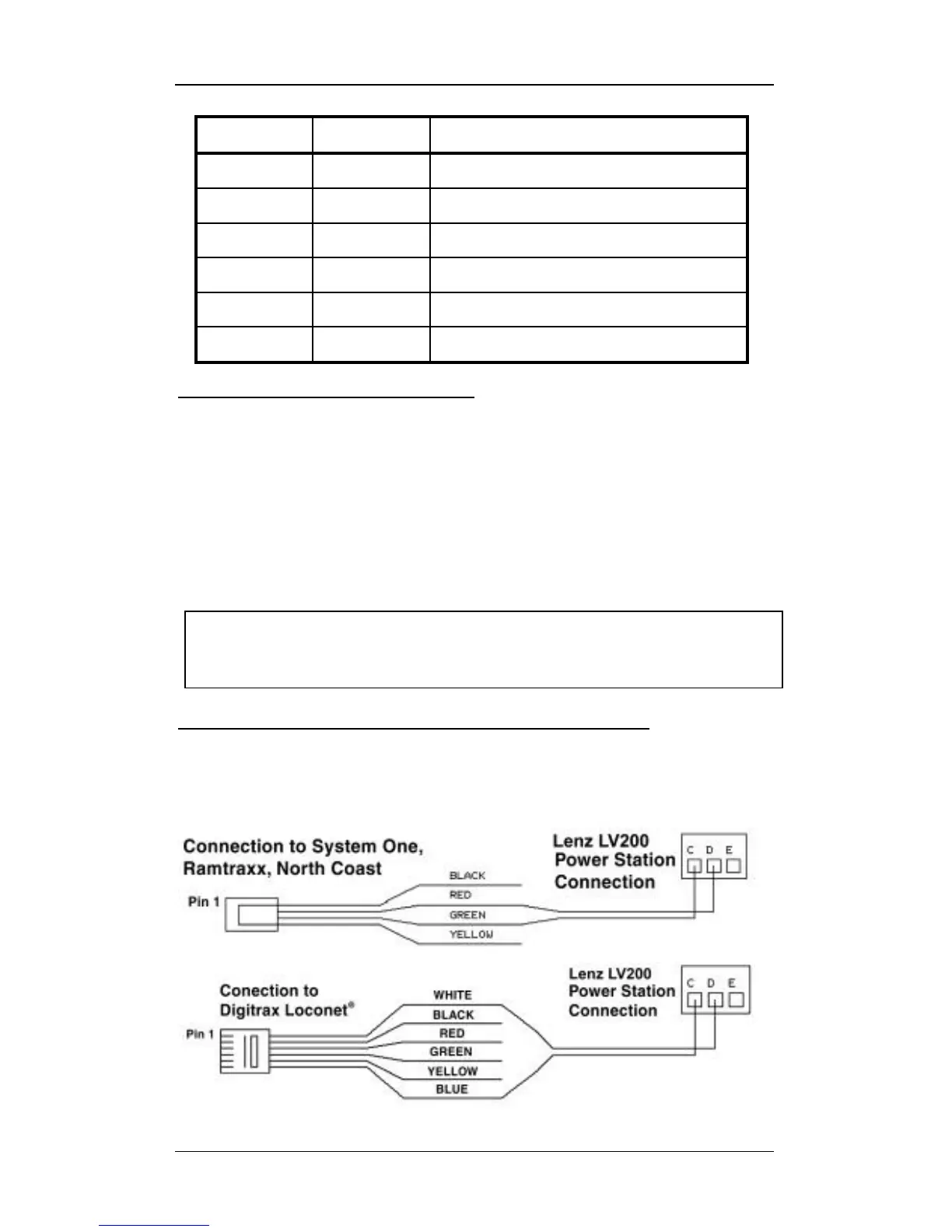

15.4.5 Connecting the LV200 to Other DCC Systems
The LV200 has been designed to be used with a broad range of
NMRA DCC systems. Following are diagrams to assist you in
connecting the LV200 to other systems.
