Basic units in the power range 45 ... 55 kW
Mounting with fixing brackets and footprint mains filter
5
Basic device installation
5.6
5.6.2
L
5.6-2
EDS82EV903-1.0-11/2002
5.6.2 Mounting with fixing brackets and footprint mains filter
8200vec298

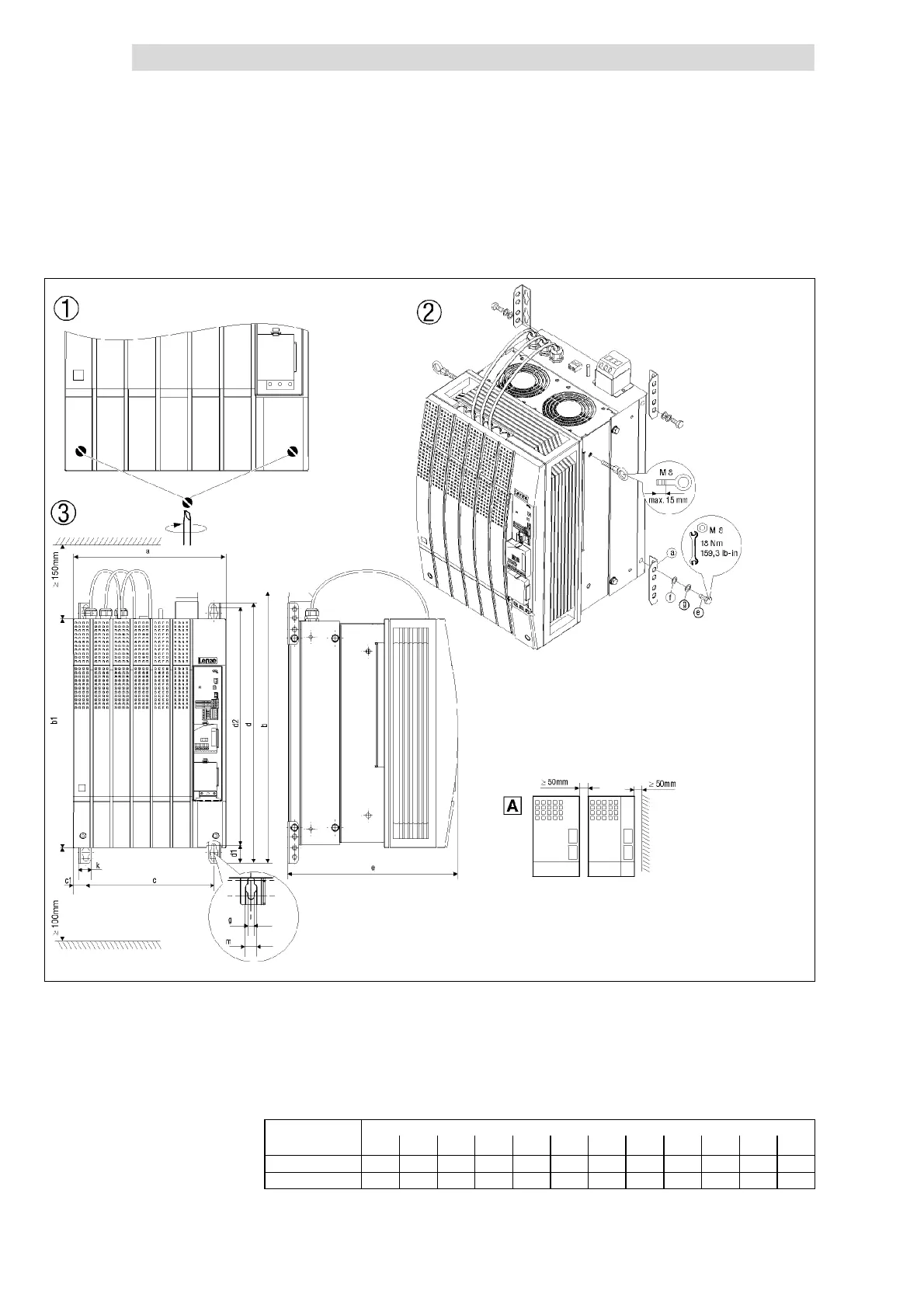

Fig. 5.6-2 Standard mounting with footprint mains filter 45 ... 55 kW
 Loosebothscrewsinordertoremovethehousingcover.
 Mounting of the fixing brackets
 Dimensions
0
Mount the drive controllers side by side leaving a certain space for dismounting
the lifting-eye bolt.
Dimensions [mm]
8200 vector a b b1 c c1 d d1 d2 e g k m
E82EV453K4B3xx 340 619 510 284 28 580 38 532 375 11 28 18
E82EV553K4B3xx 340 729 591 284 28 672 38 624 375 11 28 18
