Installation
4-4 821XKlimaBA0399
4.1.2.2 Types 8215 to 8218
Typ
Id.-NR
Fer t. - Nr
Serien -Nr.
Eingang1
Eingang2
Lenze
Postfach 101352,31763HAM ELN
k
a
g
bd
e
1)
3)
K35.0148

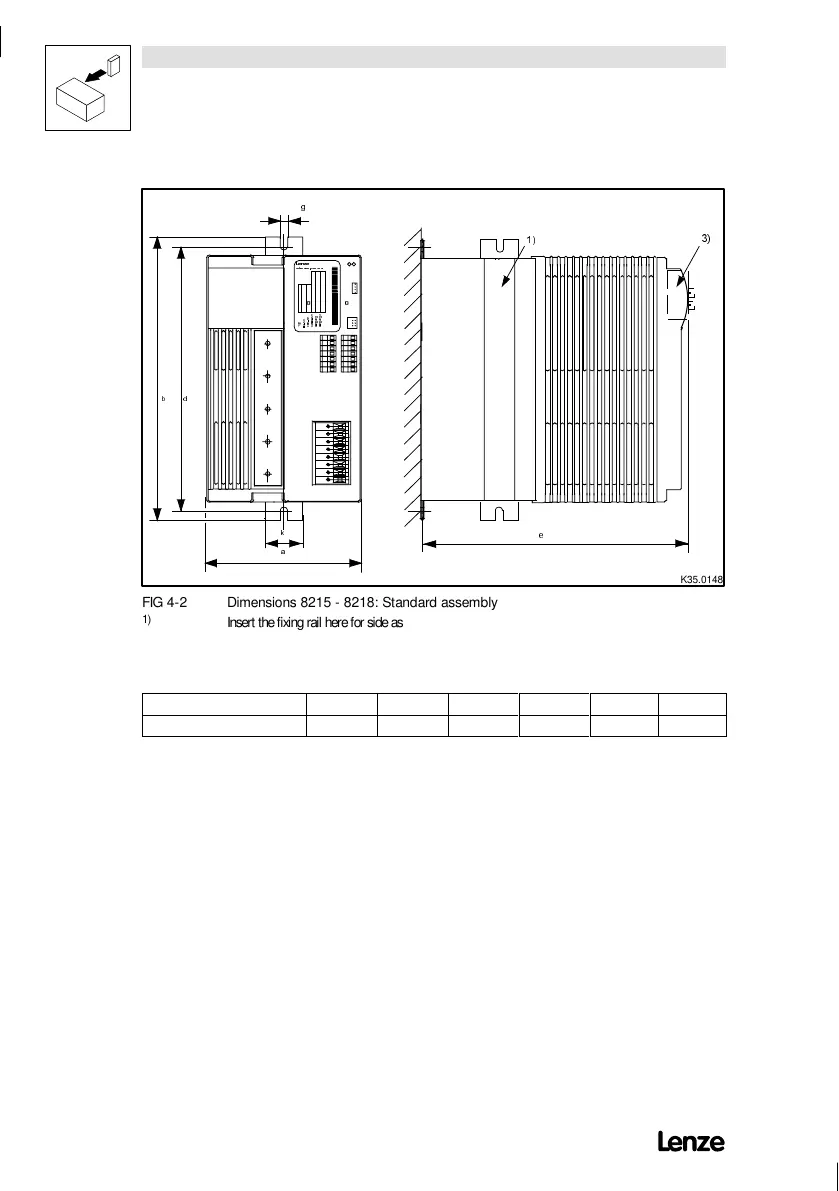

FIG 4-2 Dimensions 8215 - 8218: Standard assembly
1)
Insert the fixing rail here for side assembly
2)
Observe the free space required for the connection cables
3)
With attachable fieldbus or I/O module:
Observe assembly depth and assembly space required for connection cables
[mm]
a b d e
3)
g k
8215 / 8216 / 8217 / 8218 125 283 263 218 6.5 30
