Mains connecon
1-phase mains connecon 230/240 V

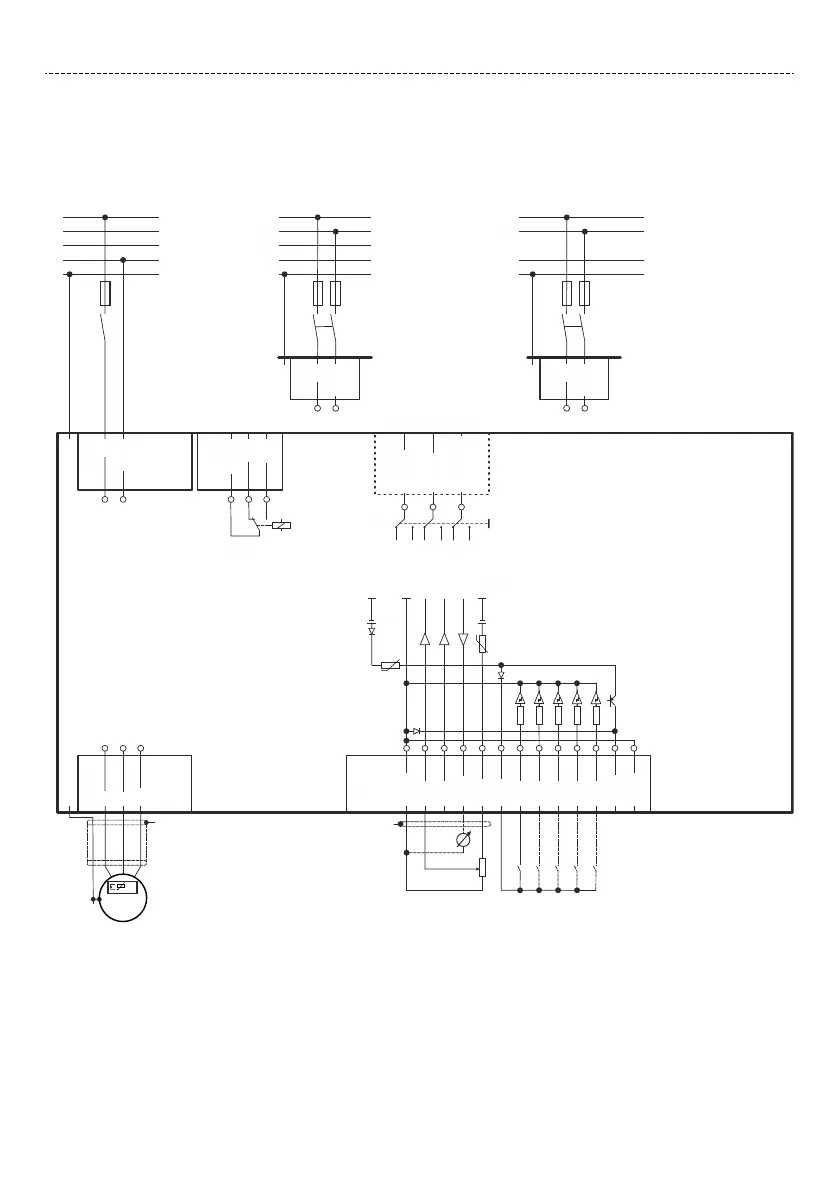

Connecon diagrams
The connecon plan is valid for the inverters I51AExxxB.
CL/TA
CG/COM
CH/TB
X216
CANopen/Modbus
Modbus
CH
TB
CL
TA
CG
COM
1k ... 10k
0 ... 10 V
S1
"
100 mA
+24 V
Basic I/O
GND
DO1
4.4k
DI1
4.4k
DI2
4.4k
DI3
4.4k
DI4
4.4k
DI5
AI1
AI2
+10 V
10 mA
10V
GND
AO1
24V
X3
X105
U
V
W
+
"
M
3~
+
J
J
NC
NO
COM
X9
AC 240 V
3 A
F1
…
F3
Q1
X100
L1
L2/N
2/PE
AC 170 V ... 264 V
45 Hz ... 65 Hz
+
2/PE
AC 170 V ... 264 V
45 Hz ... 65 Hz
+
F1
…
F2
Q1
X100
L1
L2/N
X100
L1
L2/N
F1
Q1
PE
N
L2
L1
2/N/PE
AC 208 V ... 240 V
PE
N
L3
L2
L1
3/N/PE
AC 208 V ... 240 V
PE
N
L3
L2
L1
+
1/N/PE
AC 170 V ... 264 V
45 Hz ... 65 Hz
3/N/PE
AC 400 V
Fig. 1: Wiring example
S1 Start/Stop
Fx Fuses
Q1 Mains contactor
--- Dashed line = opons
Electrical installaon
Mains connecon
1-phase mains connecon 230/240 V
