Lenze I51AE175B Mounting And Switch-On Instructions

Networks
CANopen/Modbus
The network must be terminated with a 120 Ω resistor at the physically rst and last node.
Connect resistor to terminals CH/TB and CL/TA.

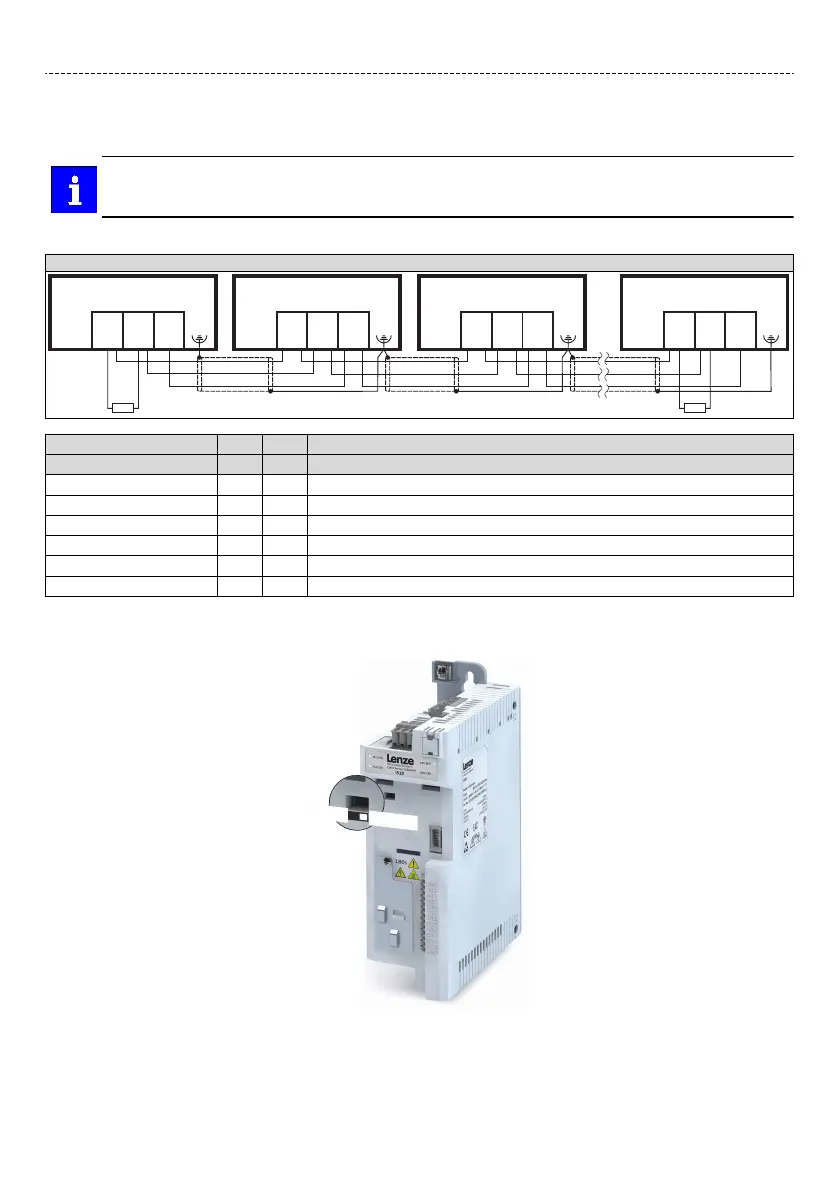

Typical topologies
Line
A1 A2 A3 An
X216 X216 X216 X216
120120
CG/
COM
CL/
TA
CH/
TB
CG/
COM
CL/
TA
CH/
TB
CG/
COM
CL/
TA
CH/
TB
CG/
COM
CL/
TA
CH/
TB
Connecon descripon CANopen/Modbus
Connecon X216
Connecon type Pluggable
Max. cable cross-secon mm² 2.5
Max. cable cross-secon AWG 12
Stripping length mm 10
Stripping length in 0.39
Required tool Screwdriver 0.4 x 2.5
Basic network sengs
1. Select network CANopen or Modbus using the switch on the front of the inverter.
openCAN
Modbus
2. Set node address and baud rate via the corresponding parameters.
Electrical installaon
Networks
CANopen/Modbus
50
