Remote Jack Pack Setup
RJP Available? If you will use a Remote Jack Pack (RJP) in your system, set Installer Menu item 093
RJP AVAILABLE appropriately (for example, on a legacy model RJP: HDMI Mode, set RJP AVAILABLE
to 001). See Installer Menu detailed descriptions for further information.
TV Connections
Make these connections ONLY after Commercial Mode Setup and Cloning Master TV
procedures are complete.

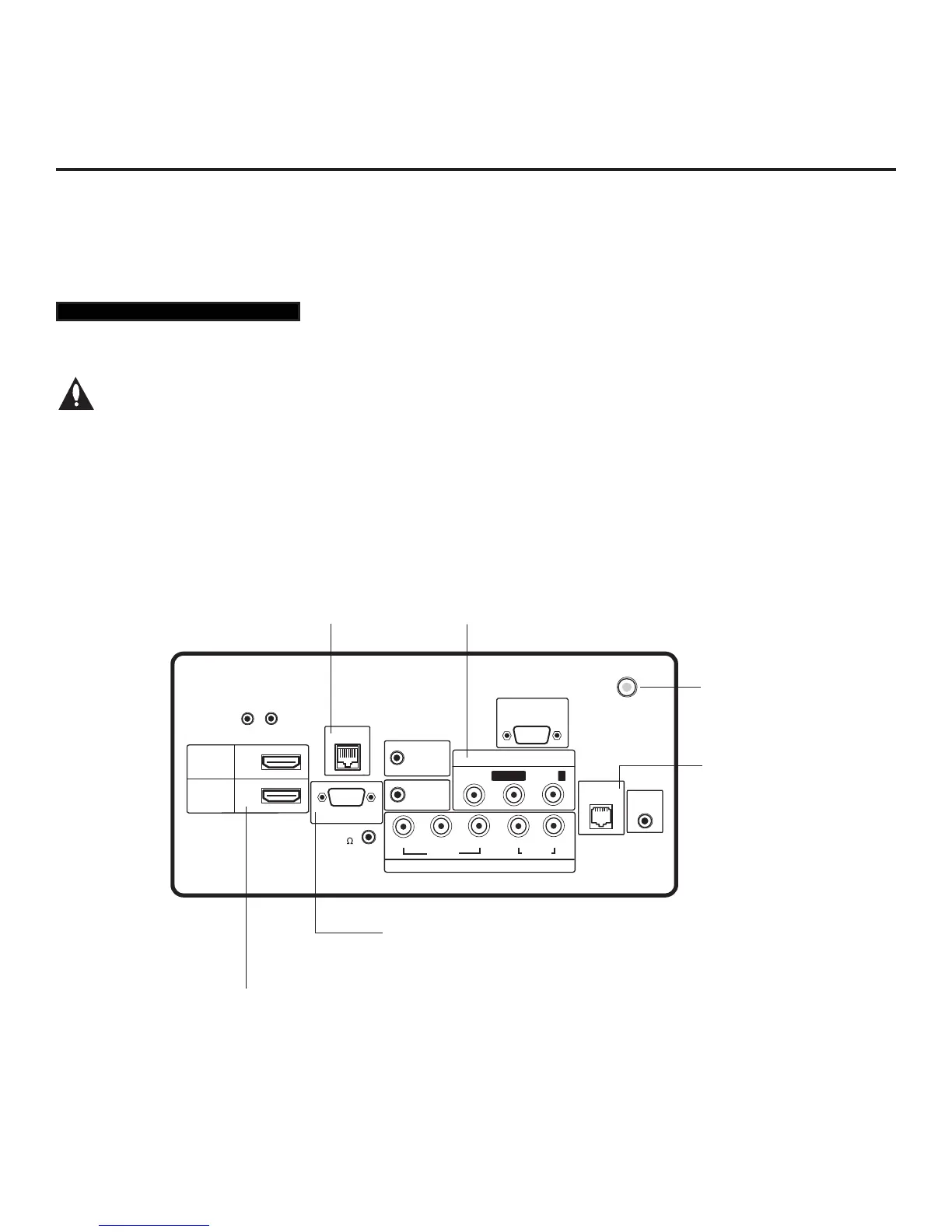

Refer to the figure below, and connect the RJ-45 Control cable from the RJP cable bundle to the RJP
INTERFACE port on the TV’s jack panel. Then, connect HDMI, RGB, and Composite Video/Audio con-
nectors, as applicable, for the cable bundle.
Remote Jack Pack / TV Connections & Setup
093 RJP AVAILABLE 001
UPDATE
RESET
AUDIO IN
(RGB/DVI)
RS-232C IN
(SERVICE ONLY)
.....
....
..........
2
1
HDMI
/DVI IN
RJP
VIDEO
L/MONO-AUD IO-R
AV IN 1
RGB IN (PC)
.....
.....
.....
TV-LINK
CFG
GAME
CONTROL
..........
REMOTE
CONTROL
OUT
SPEAKER
OUT
8
HDMI
COMPONENT IN
R
L
PB
Y
P
R
VIDEO
AUDIO
( )
ANTENNA IN
HDMI/DVI IN 1
Connect HDMI connector
from RJP cable bundle.
RJP
Connect RJ-45 Control cable
from RJP cable bundle.
RGB IN (PC)
Connect RGB connector from RJP
cable bundle (legacy RJP only).
AUDIO/VIDEO IN 1
Connect Composite Video/
Audio connectors from RJP
cable bundle. (Composite
Video on legacy RJP only.)
(26LD320H only)
(26LD320H only:
GAME CONTROL/MPI)

LG 32LD330H Specifications

General

Equalizer	Yes
Audio system	Infinite Surround
RMS rated power	20 W
Built-in subwoofer	No
Number of speakers	2
Equalizer bands quantity	5
Product color	Black
Panel mounting interface	200 x 100 mm
Comb filter	3D
Display diagonal	32 \
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Supported video modes	720p
Contrast ratio (dynamic)	60000:1
Supported graphics resolutions	1366 x 768
Package depth	193.04 mm
Package width	985.51 mm
Package height	619.75 mm
Package weight	14650 g
Video formats supported	MPEG2, MPEG4
Number of OSD languages	4
On Screen Display (OSD) languages	ENG, ESP, FRE, KOR
Placement supported	Horizontal
Number of AV connections	1
Mean time between failures (MTBF)	60000 h
Certification	RoHS
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	150 W
Power consumption (standby)	1 W
Power consumption (typical)	80 W
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	223.52 mm
Width (with stand)	805.18 mm
Height (with stand)	581.66 mm
Weight (with stand)	12560 g
Depth (without stand)	109.21 mm
Height (without stand)	528.31 mm
Weight (without stand)	11390 g
