LG 32LD330H User Manual

8
206-4177
UPDATE
RESET
AUDIO IN
(RGB/DVI)
RS-232C IN
(SERVICE ONLY)
.....
....
..........
2
1
HDMI
/DVI IN
VIDEO
L/MONO-AUD IO-R
AV IN 1
RGB IN (PC)
.....
.....
.....
..........
REMOTE
CONTROL
OUT
SPEAKER
OUT
8
HDMI
COMPONENT IN
R
L
PB
Y
P
R
VIDEO
AUDIO
( )

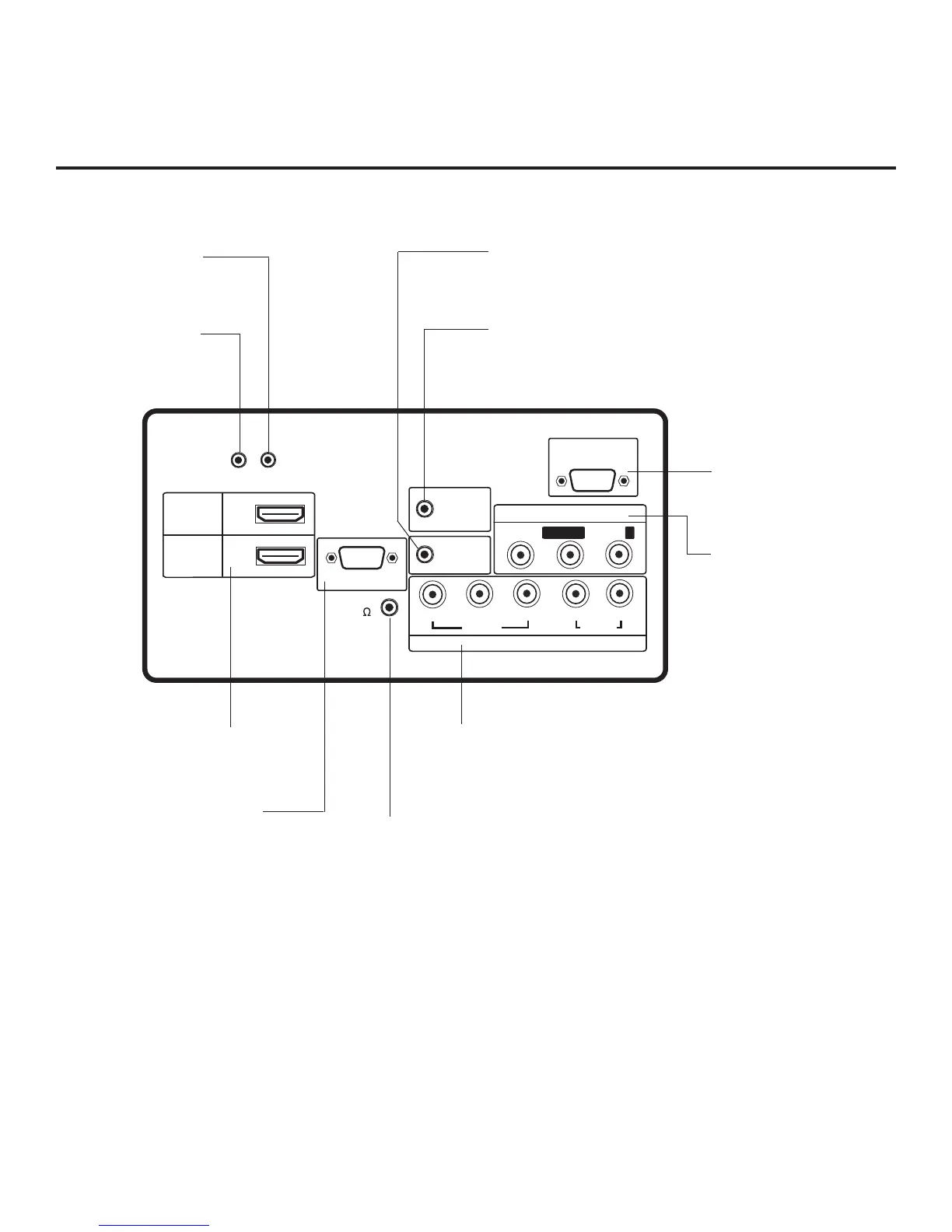

LD310H Rear Jack Panel
RGB IN (PC)
Connection for RGB
output from PC.
UPDATE
Restricted to
software updates.
RESET
Press RESET to
re-initialize the TV.
AUDIO/VIDEO IN 1
Connection for composite
audio/video output from
external device.
SPEAKER OUT (8Ω) *
Connect to 8 ohm self-powered
speaker input. Intended for special
applications, such as a powered bath-
room speaker with volume control.
REMOTE CONTROL OUT
IR output for controlling an
auxiliary device.
RS-232C IN
Use for downloading
software updates, etc.
COMPONENT IN
Connection for component
output from external device.
AUDIO IN (RGB/DVI)
Audio connection for
RGB or DVI device.
HDMI/DVI IN
Connection for HDMI/DVI
output from external device.
* This stereo jack provides a mono speaker
fixed-level, 1 watt output (audio +, audio -,
w/ground shield). Do NOT plug in a mono
connector, as this may damage the TV.

LG 32LD330H Specifications

General

Equalizer	Yes
Audio system	Infinite Surround
RMS rated power	20 W
Built-in subwoofer	No
Number of speakers	2
Equalizer bands quantity	5
Product color	Black
Panel mounting interface	200 x 100 mm
Comb filter	3D
Display diagonal	32 \
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Supported video modes	720p
Contrast ratio (dynamic)	60000:1
Supported graphics resolutions	1366 x 768
Package depth	193.04 mm
Package width	985.51 mm
Package height	619.75 mm
Package weight	14650 g
Video formats supported	MPEG2, MPEG4
Number of OSD languages	4
On Screen Display (OSD) languages	ENG, ESP, FRE, KOR
Placement supported	Horizontal
Number of AV connections	1
Mean time between failures (MTBF)	60000 h
Certification	RoHS
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	150 W
Power consumption (standby)	1 W
Power consumption (typical)	80 W
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	223.52 mm
Width (with stand)	805.18 mm
Height (with stand)	581.66 mm
Weight (with stand)	12560 g
Depth (without stand)	109.21 mm
Height (without stand)	528.31 mm
Weight (without stand)	11390 g
