LG 32LD330H User Manual

10
206-4177
Installer Overview
This is the Commercial Mode Setup Guide only.
Installer Menu / Commercial Mode Setup
To set up a Master TV for cloning purposes, you will need to know how
to enter the TV Installer Menu and make changes to the default values
as required. Similarly, to configure a TV’s Installer Menu settings in FTG
Mode, you will need to know how to access and use the FTG
Configuration Application utilities. If necessary, familiarize yourself with
the Installer Menu and how to make and save changes. Refer to page 14
for information on accessing the Installer Menu in Pass-through Mode.
Pages 15 to 20 describe Installer Menu items in detail. Refer to pages 29
to 36 for information on entering FTG Mode and using the FTG
Configuration Application utilities.
Installer Remote
The LG Installer Remote is supplied with and dedicated to operate the
TV. See next page for typical key functions in TV operating mode. Some
DVD and VCR controls may be available for selected LG DVD/VCR
products.
Cloning
Cloning refers to the process of capturing a Master TV Setup and trans-
ferring it to a Target TV. The Master TV’s clonable features need to be
configured as part of the Commercial Mode Setup. This is a critical step.
If the Master TV’s clonable features—channel icons or labels, digital font
options, etc.—are not set up correctly, the cloned TVs will all have prob-
lems. Pages 23 to 28 provide detailed information on cloning require-
ments and procedures.

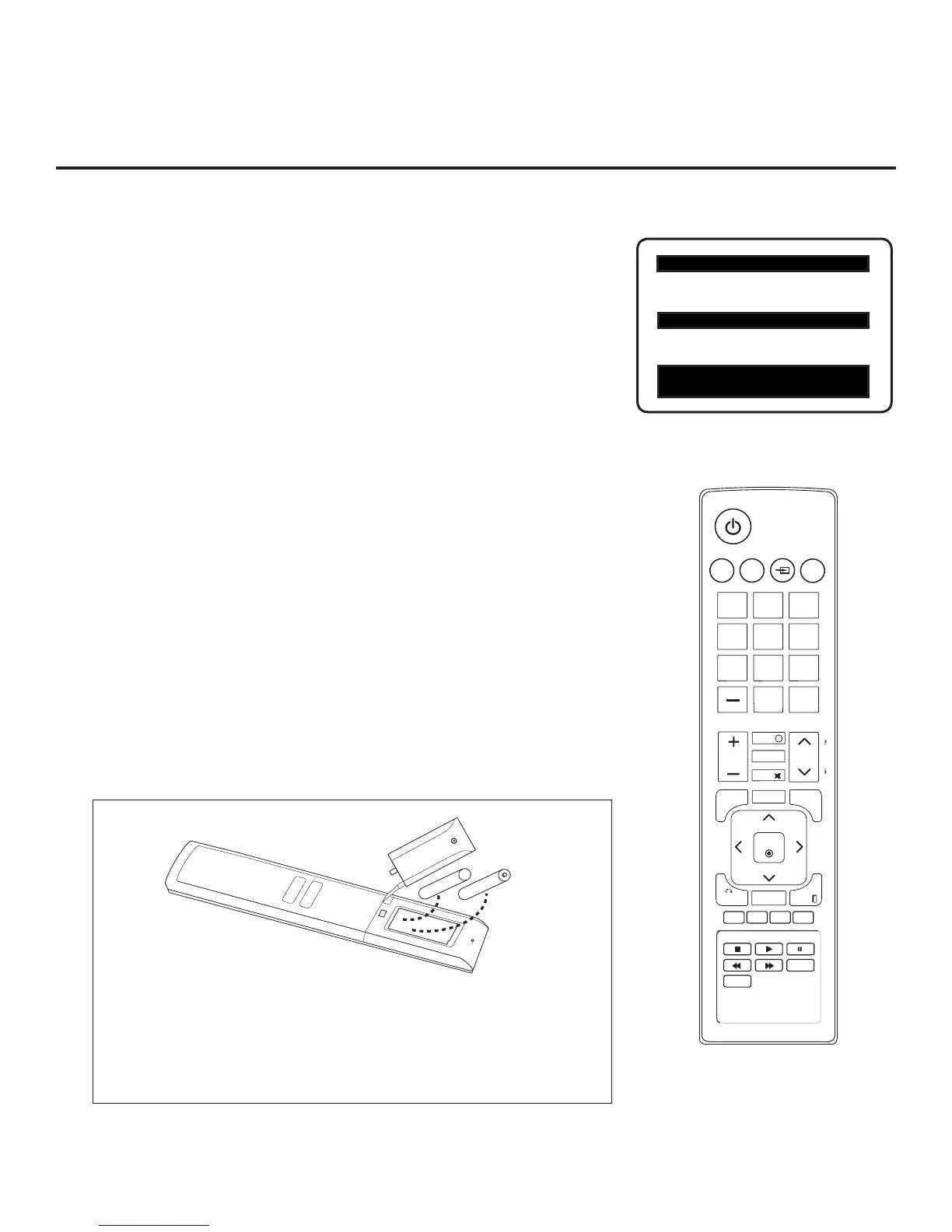

Typical Installer Menu
MENU
MUTE
VOL
CH
P
A
G
E
RETURN
INPUT
TV
ALARM
TIMER
1 2 3
4 5 6
7 8
0
9
FLASHBK
PORTAL
ENTER
GUIDE
EXIT
INFO
EJECT
SAP
RATIO
CC
i
xxLD310H PTC INSTALLER MENU
000 INSTALLER SEQ 000
UPN 000-000-000-000 ASIC 20E7
PTC V1.00.001 CPU V3.25.00
+ AAA
AAA +
Installing Batteries in Installer
Remote
• Open the battery compartment cover on the back side of the remote.
• Install two high-quality alkaline 1.5V AAA batteries. Never mix old
or used batteries with new ones. Install batteries matching correct
polarity as shown (+ with + and - with -).
• Replace the battery compartment cover.

LG 32LD330H Specifications

General

Equalizer	Yes
Audio system	Infinite Surround
RMS rated power	20 W
Built-in subwoofer	No
Number of speakers	2
Equalizer bands quantity	5
Product color	Black
Panel mounting interface	200 x 100 mm
Comb filter	3D
Display diagonal	32 \
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Supported video modes	720p
Contrast ratio (dynamic)	60000:1
Supported graphics resolutions	1366 x 768
Package depth	193.04 mm
Package width	985.51 mm
Package height	619.75 mm
Package weight	14650 g
Video formats supported	MPEG2, MPEG4
Number of OSD languages	4
On Screen Display (OSD) languages	ENG, ESP, FRE, KOR
Placement supported	Horizontal
Number of AV connections	1
Mean time between failures (MTBF)	60000 h
Certification	RoHS
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	150 W
Power consumption (standby)	1 W
Power consumption (typical)	80 W
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	223.52 mm
Width (with stand)	805.18 mm
Height (with stand)	581.66 mm
Weight (with stand)	12560 g
Depth (without stand)	109.21 mm
Height (without stand)	528.31 mm
Weight (without stand)	11390 g
