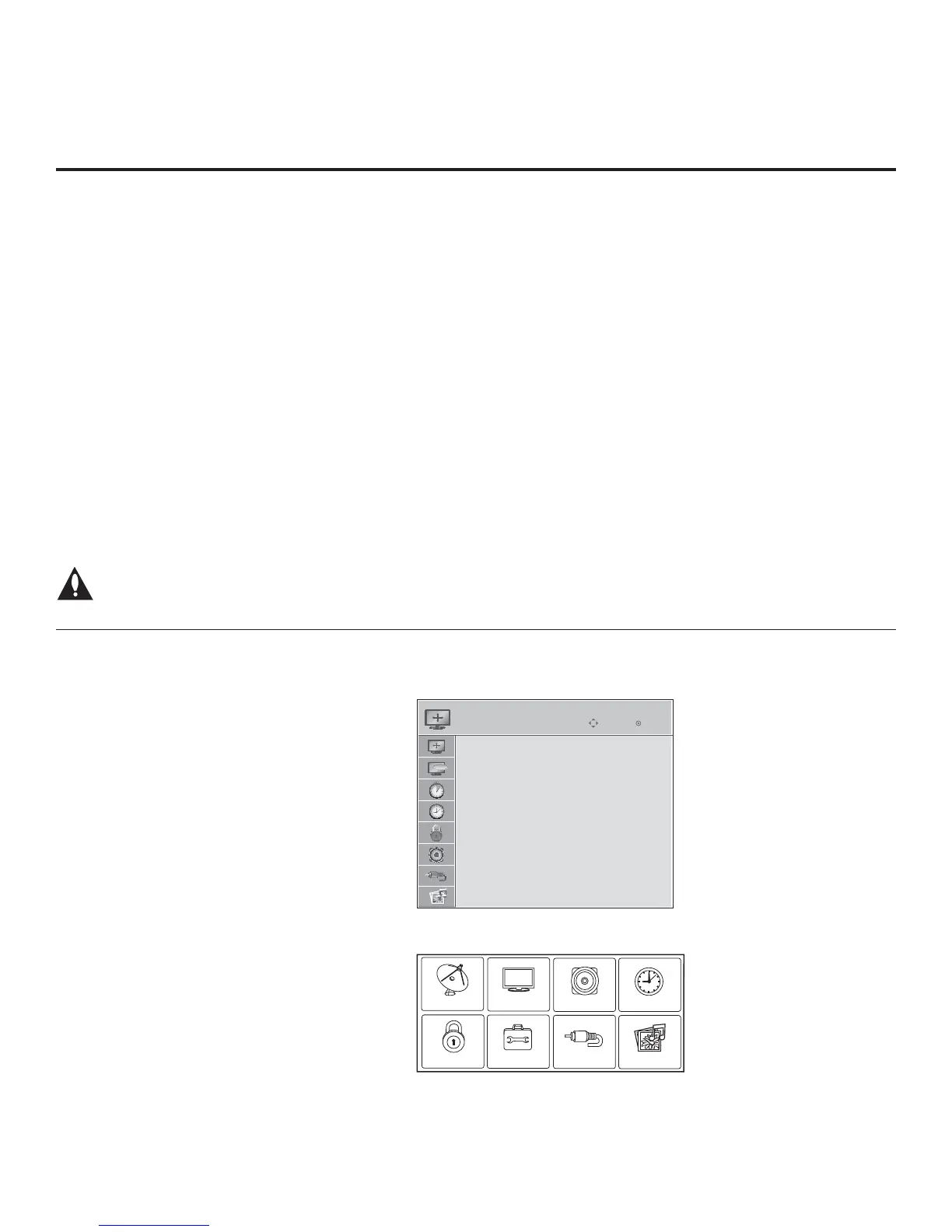

TV Setup Menus
Shows that the TV is in
Pass-through Mode .
Function Menu
Shows that the TV is in FTG
Mode . While this menu is
present on-screen, Installer
Menu settings can ONLY be
changed using the FTG
Configuration Application to
update the FMA Configuration
file.
FTG Mode of Operation
FTG Mode Overview / Determining the TV Operating Mode
ABC
ASPECT RATIO
Enter
Move
Set By Program
4:3
16:9
Zoom
Just Scan
Determining the TV Operating Mode
To determine the operating mode of the
TV, press MENU on the Installer Remote.
If the end user Function Menu (showing
aspect ratio options) appears, the TV is
in FTG Mode. If the TV setup menus
appear, the TV is in Pass-through Mode.
FTG Mode Overview
FTG Mode enables Pro:Idiom decryption and also allows logical channel mapping of physical channels.
“Teaching” an FMA Configuration file to a LD310H TV puts the TV into FTG Mode. Once the LD310H TV is
in FTG Mode:
• Users can still access the Installer Menu; however, all Installer Menu items, with the exception of item
117 FACT DEFAULT will be read-only. To return the TV to Pass-through Mode, you must set Installer
Menu item 117 FACT DEFAULT to 001 to reload factory default settings on the TV. (See “Installer Menu”
section of this document for further information.)
• Any con guration updates must be made in the FTG Con guration Application. FTG Channel Map
Con guration and FTG Installer Menu Con guration Utilities enable you to update the FTG Channel Map
and FTG Installer Menu, as necessary, and the FMA Con guration Utility enables you to save the up-
dates to a FMA Con guration le. The FMA Con guration le can then be transferred to the TV via a USB
memory device.
This section outlines how to create an FMA Configuration file using the FTG Channel Map, FTG
Installer Menu, and FMA Configuration Utilities that comprise the FTG Configuration Application. It also
describes how to transfer (Teach) an FMA Configuration file to a TV using a USB device. Refer to the
Free-To-Guest (FTG) Configuration Application manual for further information.
Note: The LD310H cannot be put into FTG Mode in this manner if an MPI slot card or external
MPI device has been implemented as a means of controlling the TV.

LG 32LD330H Specifications

General

Equalizer	Yes
Audio system	Infinite Surround
RMS rated power	20 W
Built-in subwoofer	No
Number of speakers	2
Equalizer bands quantity	5
Product color	Black
Panel mounting interface	200 x 100 mm
Comb filter	3D
Display diagonal	32 \
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Supported video modes	720p
Contrast ratio (dynamic)	60000:1
Supported graphics resolutions	1366 x 768
Package depth	193.04 mm
Package width	985.51 mm
Package height	619.75 mm
Package weight	14650 g
Video formats supported	MPEG2, MPEG4
Number of OSD languages	4
On Screen Display (OSD) languages	ENG, ESP, FRE, KOR
Placement supported	Horizontal
Number of AV connections	1
Mean time between failures (MTBF)	60000 h
Certification	RoHS
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	150 W
Power consumption (standby)	1 W
Power consumption (typical)	80 W
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	223.52 mm
Width (with stand)	805.18 mm
Height (with stand)	581.66 mm
Weight (with stand)	12560 g
Depth (without stand)	109.21 mm
Height (without stand)	528.31 mm
Weight (without stand)	11390 g
