LG 32LD330H User Manual

35
206-4186
Laptop
PC
UPDATE
RESET
AUDIO IN
(RGB/DVI)
RS-232C IN
(SERVICE ONLY)
.....
....
..........
2
1
HDMI
/DVI IN
RJP
VIDEO
L/MONO-AUD IO-R
AV IN 1
RGB IN (PC)
.....
.....
.....
TV-LINK
CFG
GAME
CONTROL/
MPI
..........
REMOTE
CONTROL
OUT
SPEAKER
OUT
HDMI
COMPONENT IN
R
L
PB
Y
P
R
VIDEO
AUDIO
( )
ANTENNA IN
8
The following steps outline local FTG configuration of individual TV EBLs using a direct PC-to-TV connection.
Refer to the Free-To-Guest (FTG) Configuration Application manual for further information. See also FTG
Configuration Application sample screens on pages 36 to 38.
Note: FTG Configuration Application software is available online at: www.LGcommercial.com/FTGsoftware.
Caution: If the TV CPU is already in FTG Mode, you cannot use this procedure to make changes
to the FTG Channel Map and FTG Installer Menu settings. Instead, refer to and use the process-
es described on pages 31 and 32 to recongure the TV CPU.
1. Install (if necessary) and launch the FTG Configuration Application (v5.0.0 or higher) on the PC that will
be used to configure the EBL.
2. Build a Channel Map using the FTG Channel Map Editor in the FTG Channel Map Configuration Utility
(or, if applicable, open an existing FTG Configuration [.rml] file).
Note: Up to 141 logical channels can be defined in the FTG Channel Map.

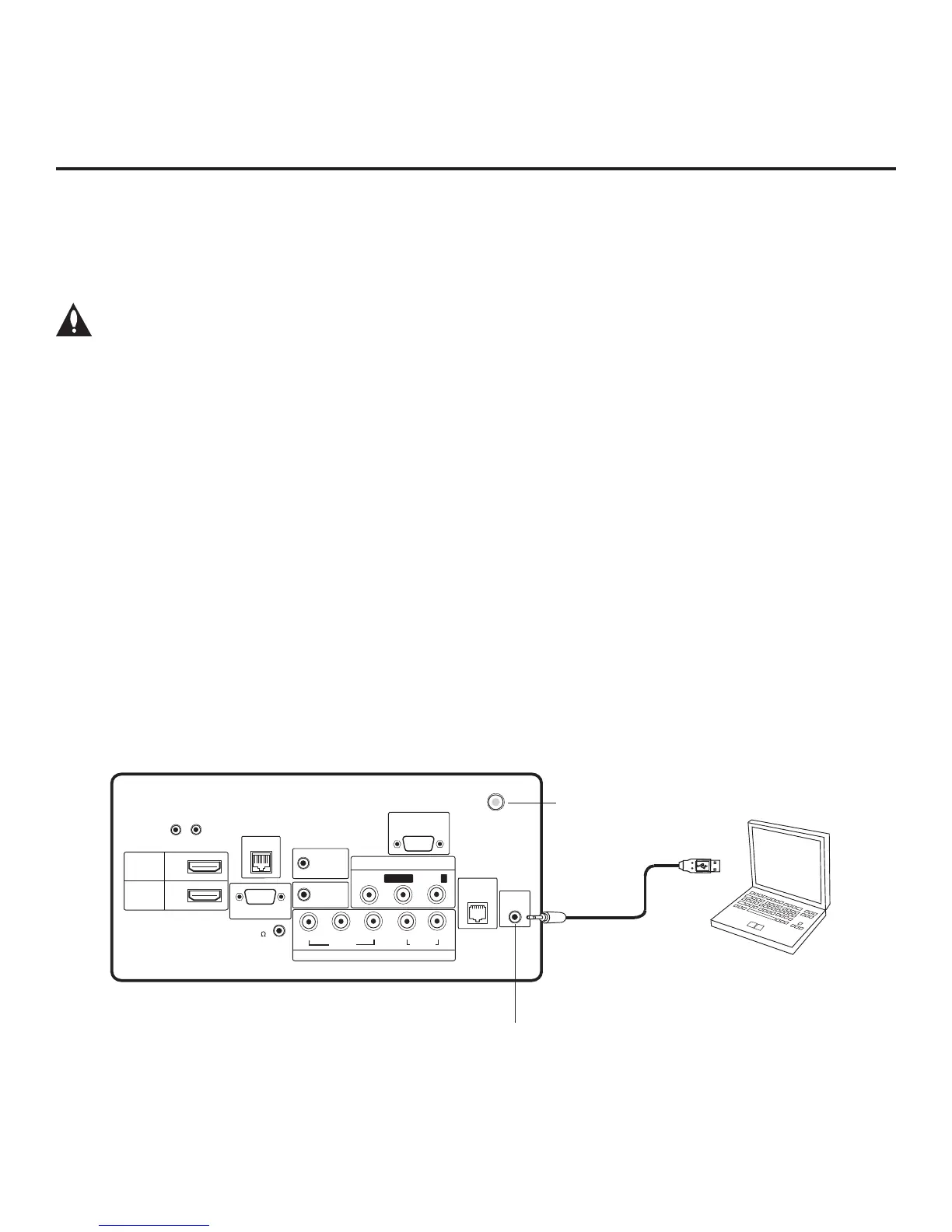

3. Connect the PC to the TV-LINK CFG jack on the TV’s rear connections panel using a USB-to-TTL serial
cable (TTL-232R-5V-AJ). If necessary, install the device driver on the PC.
4. Turn ON the TV. Note: The TV will briefly display a green text banner that shows the EBL firmware
version and release date.
5. “Write” the FTG Channel Map to the EBL (switches the EBL from Pass-through Mode to FTG Mode).
6. “Read” the current FTG Installer Menu settings from the EBL using the FTG Installer Menu
Configuration Utility. If necessary to make changes to Installer Menu items, “Write” them back to the
EBL in FTG Mode.
7. Save the FTG Channel Map and FTG Installer Menu settings to an FTG Configuration (.rml) file for
future use.
8. Tune the TV to a Logical Channel in the FTG Channel Map.
TV-LINK CFG
Use for direct
PC-to-TV FTG
configuration.
USB-to-TTL
Serial Cable
Required for direct
PC-to-TV FTG
configuration.
(26LD340H,
26LD343H and
26LD345H only)
FTG Mode via EBL

LG 32LD330H Specifications

General

Equalizer	Yes
Audio system	Infinite Surround
RMS rated power	20 W
Built-in subwoofer	No
Number of speakers	2
Equalizer bands quantity	5
Product color	Black
Panel mounting interface	200 x 100 mm
Comb filter	3D
Display diagonal	32 \
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Supported video modes	720p
Contrast ratio (dynamic)	60000:1
Supported graphics resolutions	1366 x 768
Package depth	193.04 mm
Package width	985.51 mm
Package height	619.75 mm
Package weight	14650 g
Video formats supported	MPEG2, MPEG4
Number of OSD languages	4
On Screen Display (OSD) languages	ENG, ESP, FRE, KOR
Placement supported	Horizontal
Number of AV connections	1
Mean time between failures (MTBF)	60000 h
Certification	RoHS
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	150 W
Power consumption (standby)	1 W
Power consumption (typical)	80 W
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC

Weight and Dimensions

Depth (with stand)	223.52 mm
Width (with stand)	805.18 mm
Height (with stand)	581.66 mm
Weight (with stand)	12560 g
Depth (without stand)	109.21 mm
Height (without stand)	528.31 mm
Weight (without stand)	11390 g
