27
206-4177
THE CLONE HAS CONTROL OF THE TV
THE CLONE IS VERSION XX
THE TV IS VERSION XX
THE SW IS REVISION XX
CLONE CLOCK = XX:XX
TV CLOCK = XX:XX
- PRESS ANY KEY TO CONTINUE.
- DISCONNECT CLONE WHEN DONE.
CLONE SELECTION MENU
(1) LEARN FROM TV
(2) TEACH TO TV
(3) SET CLONE CLOCK FROM TV
(4) SET TV CLOCK FROM CLONE
(5) DISPLAY TV SETUP
(6) DISPLAY CLONE SETUP
-
-
TO CHANGE MENU ITEMS, PRESS
CHANNEL KEYS OR DIGITS.
TO EXECUTE ITEM, PRESS ON/OFF,
POWER, OR ENTER.
Learn Setup from Master TV
1. Ensure the Master TV is set up completely and in Pass-through Mode.
2. If an analog channel is not available, direct tune the TV to an Aux source,
or select an Aux source, such as AV-1, from the Input Menu. Then, plug one
end of the MPI cable into the TV MPI port.
3. If there is a good connection after the LT2002 is connected to the TV MPI
port, “THE CLONE HAS CONTROL OF THE TV” message will appear on
the TV screen. Press any key on the Installer Remote to access the LT2002
Clone Selection Menu.
4. Press 1 on the Installer Remote to select LEARN FROM TV from the Clone
Selection Menu; then press ENTER to proceed to the Memory Bank Selec-
tion Menu (see sample screen on next page).
5. Select the clone Memory Bank in which to store the Master Setup by press-
ing either Channel key repeatedly to choose Memory Bank 1, 2, or 3. Note:
If you choose a Memory Bank that already has a Master device’s setup pro-
grammed into it, that setup will be overwritten by the new Master TV Setup.
Cloning Procedures (Cont.)
Learning / Teaching a Master TV Setup using an LT2002 Clone Programmer
LT2002 Cloning Notes
Read the IMPORTANT CLONING
INFORMATION on page 23 before
beginning any cloning procedures.
• A slow ashing green light indicates
that there are communication
problems between the TV and the
LT2002 clone programmer. If this is
the case, check for a damaged
cable, poor contacts, or other
connection troubles.
If the status indicator is red, the
LT2002 batteries are low and
should be replaced. Install four (4)
high-quality alkaline AA batteries.
Learning and Teaching is only
possible between identical model
TVs; however, the LT2002 clone
programmer can store up to three
different Master TV Setups.
Warning: Do not connect a clone programmer to a PPV card installed in the Master or Target
TVs, as this will damage the clone programmer and the PPV card.
Ferrite Core
(TDK, ZCAT
2035-0930)
Antenna
or CATV
QuickSet II Programmer
LT2002
®
ZENITH ELECTRONICS CORPORATION, LINCOLNSHIRE, ILLINOIS, USA
tIFBSUCFBUQPXFSPO
communications ok
tTMPX QPXFSPO
no communications
tHSFFO CBUUFSZPL
tSFE CBUUFSZMPX
#MJOLQBUUFSO
$PMPS
Reset
Status
*OEJDBUPS
$POOFDUDBCMFUP
57.1*+BDLBOE
GPMMPXPOTDSFFO
instructions
MPI
THE CLONE HAS CONTROL OF THE TV
THE CLONE IS VERSION XX
THE TV IS VERSION XX
THE SW IS REViSION XX
CLONE CLOCK = XX:XX
TV CLOCK = XX:XX
- PRESS ANY KEY TO CONTINUE
MPI
Cable
LT2002 Clone
Programmer
(Continued on next page)

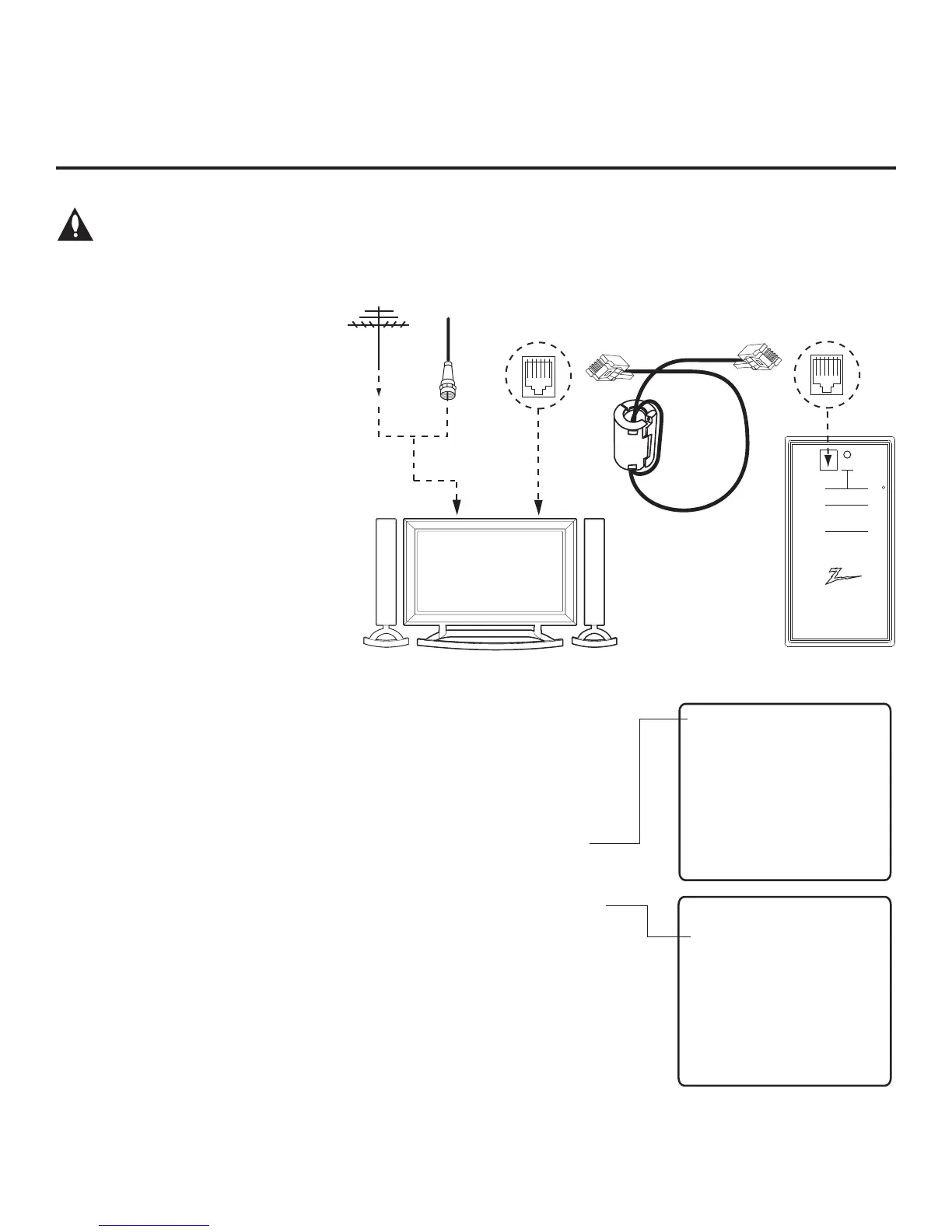

Cloning is accomplished using the TV/clone programmer MPI ports for communication (see figure).
